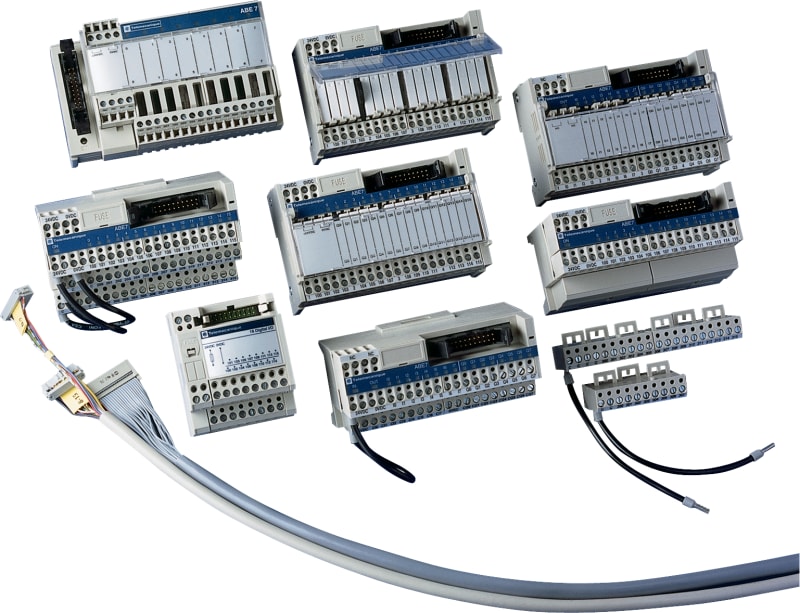

16 O, 8 PR.GR, Relay 10mm, SIKR

Schneider Electric ABE7P16T215 16 O, 8 pr.gr, relay 10mm, fuse.

Manufacturer part number (MPN)

ABE7P16T215

EAN / GTIN

3389110644593

HS code

8536.90

Sales unit

pcs

Range of product

Modicon ABE7

Product or component type

Sub-base for plug-in relay

Sub-base type

Output sub-base

[Us] rated supply voltage

19...30 V conforming to IEC 61131-2

Number of channels

16

Connections - terminals

Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid

Channel additional information

1 switch disconnector per channel

supply voltage type

DC

Product compatibility

ABR7S2.; ABS7SC2.; ABE7ACC20; ABS7SA2.

Status LED

1 LED per channel (green) channel status; 1 LED (green) power ON

Polarity distribution

Polarity distribution contact common per 2 groups of 8 channels

Short-circuit protection

1 A internal fuse, 5 x 20 mm, fast blow (PLC end); 0.5 A fuse per channel, 5 x 20 mm, fast blow (output circuit)

Fixing mode

By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)

Maximum supply current

1 A

Voltage drop on power supply fuse

0.3 V

Maximum current per output common

16 A

[Ui] rated insulation voltage

300 V coil circuit/contact circuits conforming to IEC 60947-1; 2000 V terminals/mounting rails

[Uimp] rated impulse withstand voltage

2.5 kV

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Width

211 mm

Height

89 mm

Depth

74 mm

Product weight

0.67 kg

Product certifications

GL; CSA; DNV; EAC

IP degree of protection

IP2X conforming to IEC 60529

Resistance to incandescent wire

750 °C conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

-5…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

LV

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110644593
• SAP 1000003059
• Code 822294
