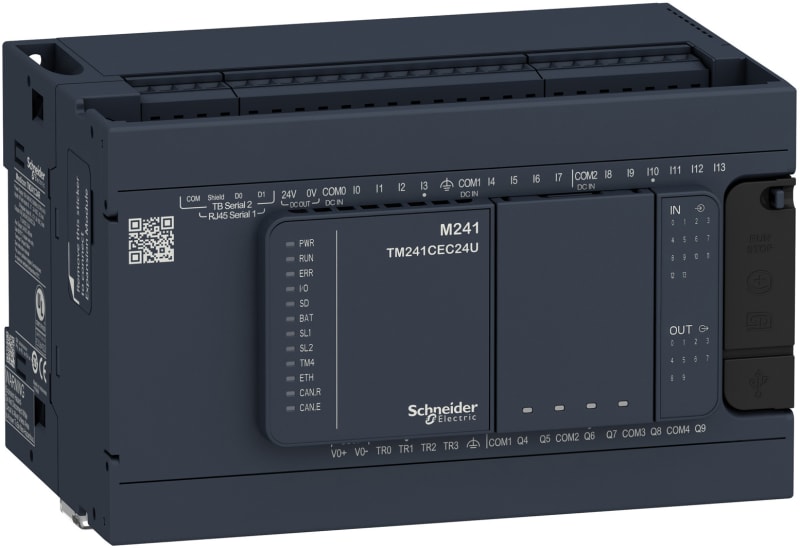

Schneider Electric controller M241 24 IO relay TM241C24R

Schneider Electric TM241C24R Flexible and modular PLS.

Manufacturer part number (MPN)

TM241C24R

EAN / GTIN

3606480648816

HS code

8536.90

Sales unit

pcs

Package quantity

8 pcs

Range of product

Modicon M241

Product or component type

Logic controller

[Us] rated supply voltage

100...240 V AC

Discrete input number

14, discrete input 8 fast input conforming to IEC 61131-2 Type 1

Discrete output type

Transistor; Relay

Discrete output number

6 relay; 4 transistor 4 fast output

Discrete output voltage

5...125 V DC for relay output; 5...250 V AC for relay output; 24 V DC for transistor output

Discrete output current

2 A for relay output (Q4...Q9); 0.1 A for fast output (PTO mode) (TR0...TR3); 0.5 A for transistor output (TR0...TR3)

Discrete I/O number

24

Maximum number of I/O expansion module

7 (local I/O-Architecture); 14 (remote I/O-Architecture)

Supply voltage limits

85…264 V

Network frequency

50/60 Hz

Discrete input logic

Sink or source

Discrete input voltage

24 V

Discrete input voltage type

DC

Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

5 mA for input

Input impedance

4.7 kOhm for input

Response time

50 µs turn-on, I0...I13 terminal(s) for input

Configurable filtering time

1 s for fast input

Discrete output logic

Positive logic (source)

Output voltage limits

125 V DC relay output; 30 V DC transistor output; 277 V AC relay output

Maximum output frequency

1 kHz for transistor output; 20 kHz for fast output (PWM mode); 100 kHz for fast output (PLS mode)

Accuracy

+/- 0.1 % at 0.02…0.1 kHz for fast output; +/- 1 % at 0.1…1 kHz for fast output

Protection type

Short-circuit protection for transistor output; Short-circuit and overload protection with automatic reset for transistor output; Reverse polarity protection for transistor output; Without protection for relay output

Reset time

10 ms automatic reset output; 12 s automatic reset fast output

Memory capacity

64 MB for system memory RAM

Data backed up

128 MB built-in flash memory for backup of user programs

Data storage equipment

<= 16 GB SD card (optional)

Battery type

BR2032 lithium non-rechargeable, battery life: 4 year(s)

Backup time

2 years at 25 °C

Execution time for 1 KInstruction

0.3 ms for event and periodic task; 0.7 ms for other instruction

Application structure

4 cyclic master tasks; 3 cyclic master tasks + 1 freewheeling task; 8 external event tasks; 8 event tasks

Realtime clock

With

Clock drift

<= 60 s/month at 25 °C

Positioning functions

PTO function 4 channel(s) (positioning frequency: 100 kHz)

Counting input number

4 fast input (HSC mode) at 200 kHz; 14 standard input at 1 kHz

Control signal type

A/B at 100 kHz for fast input (HSC mode); Pulse/direction at 200 kHz for fast input (HSC mode); Single phase at 200 kHz for fast input (HSC mode)

Integrated connection type

Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface ; Non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface ; USB port with mini B USB 2.0 connector

Supply

(serial 1)serial link supply: 5 V, <200 mA

Transmission rate

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 480 Mbit/s for bus length of 3 m for USB

Communication port protocol

Non isolated serial link: Modbus master/slave

Local signalling

1 LED (green) for PWR; 1 LED (green) for RUN; 1 LED (red) for module error (ERR); 1 LED (red) for I/O error (I/O); 1 LED (green) for SD card access (SD); 1 LED (red) for BAT; 1 LED (green) for SL1; 1 LED (green) for SL2; 1 LED (red) for bus fault on TM4 (TM4); 1 LED per channel (green) for I/O state

Electrical connection

removable screw terminal blockfor inputs and outputs (pitch 5.08 mm); removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm)

Maximum cable distance between devices

Unshielded cable: <50 m for input; Shielded cable: <10 m for fast input; Unshielded cable: <50 m for output; Shielded cable: <3 m for fast output

Insulation

Between supply and internal logic at 500 V AC; Non-insulated between supply and ground

Marking

CE

Sensor power supply

24 V DC at 400 mA supplied by the controller

Surge withstand

2 kV power lines (AC) common mode conforming to IEC 61000-4-5; 2 kV relay output common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5; 1 kV relay output differential mode conforming to IEC 61000-4-5; 1 kV input common mode conforming to IEC 61000-4-5; 1 kV transistor output common mode conforming to IEC 61000-4-5

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Depth

95 mm

Width

150 mm

Product weight

0.53 kg

Standards

ANSI/ISA 12-12-01; CSA C22.2 No 142; CSA C22.2 No 213; IEC 61131-2:2007; Marine specification (LR, ABS, DNV, GL); UL 508

Product certifications

RCM; cULus; CE; UKCA; DNV-GL; ABS; LR

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2; 4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 2 kV (relay output) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4; 1 kV (input) conforming to IEC 61000-4-4; 1 kV (transistor output) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines) at 0.15…0.5 MHz conforming to IEC 55011; Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines) at 0.5…300 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011

Immunity to microbreaks

10 ms

Ambient air temperature for operation

-10…50 °C (vertical installation); -10…55 °C (horizontal installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 5…8.4 Hz on symmetrical rail; 3 gn at 8.4…150 Hz on symmetrical rail; 3.5 mm at 5…8.4 Hz on panel mounting; 3 gn at 8.4…150 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

64

Country of origin

ID

Warranty (in months)

18

HS Code

8536.90
