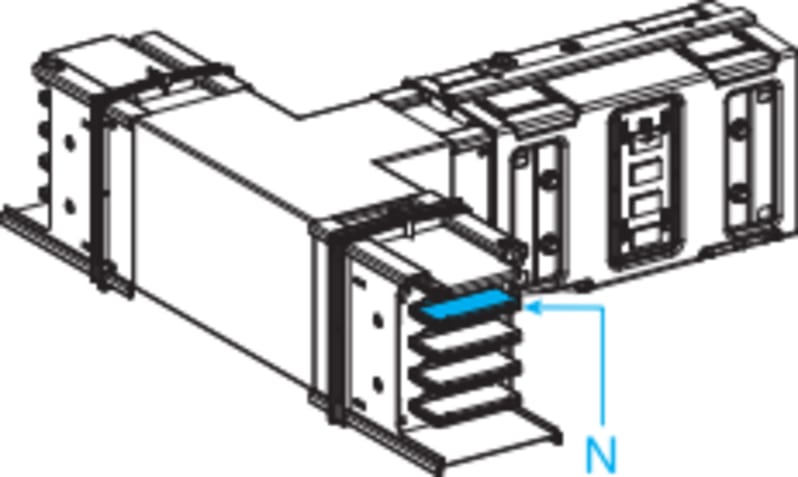

T-Element 500-630A (KSA630DTC40)

Schneider Electric KSA630DTC40 T-Element 500-630A.

Manufacturer part number (MPN)

KSA630DTC40

EAN / GTIN

3606480005275

Sales unit

pcs

Range of product

Canalis

Product name

KS

Device short name

KSA

Offer type

Advanced

Product or component type

Tee

Busbar description

Standard

Product compatibility

Canalis KSA busbar trunking 500…1000 A

Device application

Change direction

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

[Ie] rated operational current

630 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

Operating angle

90 °

Direction change type

Edgewise to perpendicular - neutral to up

Colour

White (RAL 9001)

Dimension type

Made to measure

Length

290 mm for side A; 290 mm for side B; 290 mm for side C

Width

113 mm

Height

146 mm

Product weight

10 kg

Mounting location

On trunking

Mounting position

Any position

Electrical connection

Lubricated sliding contact

mounting mode

By screws

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

16.800 cm

Package 1 Width

35.000 cm

Package 1 Length

71.900 cm

Package 1 Weight

12.940 kg

Unit Type of Package 2

P06

Number of Units in Package 2

3

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

46.823 kg

Country of origin

FR

Warranty (in months)

18

Model

T-box

Flexible

No

Number of poles

5

Number of conductors (without earthing)

4

Rated current AC 50 Hz

630 A

Rated voltage AC 50 Hz

230–690 V

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606480005275
• SAP 1200721768
• Code 83832424
