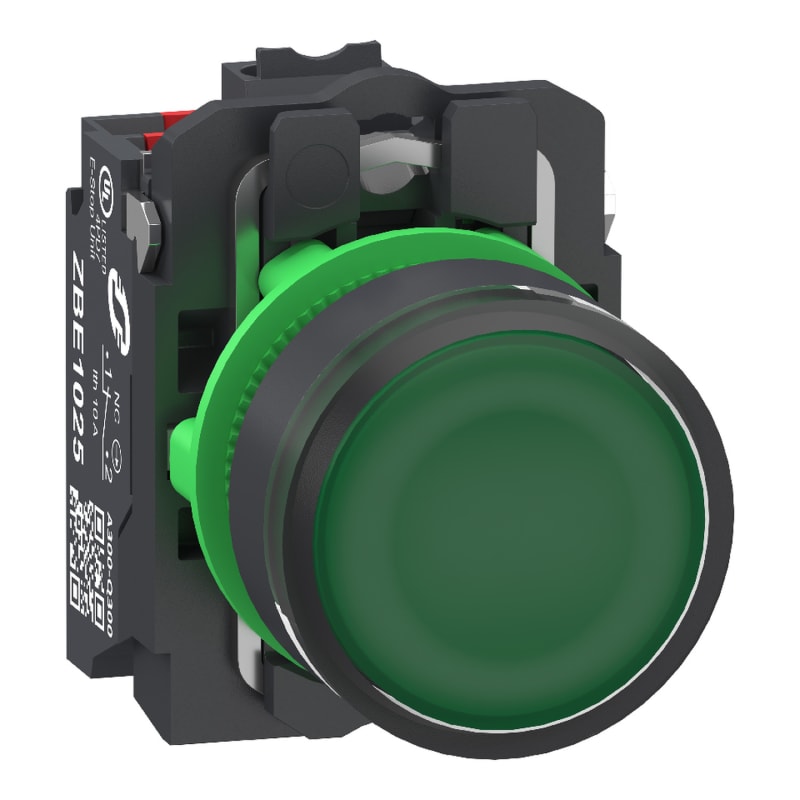

Schneider Electric Illuminated push button, Harmony XB5, plastic, green flush, 22mm, universal LED, plain lens, 1NO+1NC, 24V AC DC, push in XB5AW33B55

Schneider Electric XB5AW33B55 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Illuminated Push Button complete with LED and green plan push surface with spring return 24V 1xNO+1xNC with push-in.

Manufacturer part number (MPN)

XB5AW33B55

EAN / GTIN

3606486341285

Sales unit

pcs

Voltage

24 V

Range of product

Harmony XB5

Product or component type

Illuminated push-button

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

With plain lens

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

Light source

Universal LED

Bulb base

Integral LED

[Us] rated supply voltage

24 V AC/DC 50/60 Hz

Cap/operator or lens colour

Green

Height

42 mm

Width

30 mm

Depth

48.2 mm

Terminals description ISO n°1

(21-22)NC; (13-14)NO

Product weight

0.048 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.217 mm (NC changing electrical state); 2.05 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

2.25 N NC changing electrical state; 2.45 N NO changing electrical state

Mechanical durability

10000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Signalling type

Steady

Supply voltage limits

20.4…26.4 V DC; 20.4…26.4 V AC

Current consumption

15 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Grey

Degree of protection (IP)

IP66

Material front ring

Plastic

With front ring

Yes

Transparent

Yes

Construction type lens

Round

Supply voltage lamp

24 V

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.50
