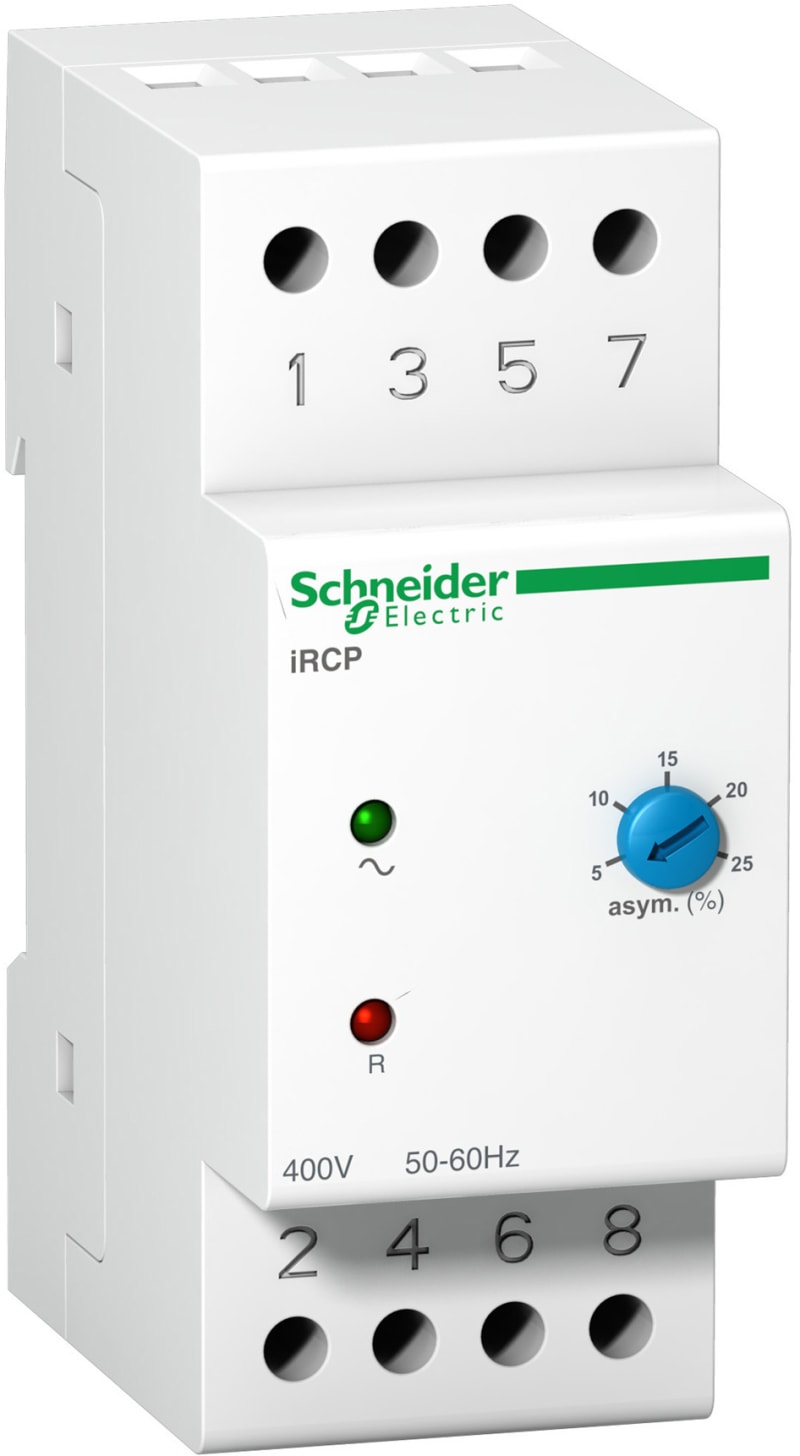

Schneider Electric phase control relay iRCP - 8 A - 400 V 50/60Hz - 1 OC A9E21180

Schneider Electric A9E21180 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. iRCP phase monitoring relay meter phase sequence, assymetri ogfasebortfall in tre-phase system.

Manufacturer part number (MPN)

A9E21180

EAN / GTIN

3606480377495

Sales unit

pcs

Package quantity

36 pcs

Rated current

8 A

range of product

Acti9

Product name

Acti9 iRC

Product or component type

Control relay

Device short name

iRCP

Device application

Phase control relay

Signal contacts composition

1 C/O

[Ie] rated operational current

8 A at 250 V AC (cos Phi = 1)

Local signalling

Red LED for fault; It reports phase loss or reversal; Green LED for power on

Type of setting

Rotary knob: asymmetry; Selected by wiring: measurement range

Tripping threshold

5...25 % of Us phase asymmetry

Hysteresis

5 %

Time delay range

0.3 s

Accuracy error

+/- 10 %

[Us] rated supply voltage

400 V AC 50/60 Hz

Power consumption in VA

3 VA

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

4

Height

88.1 mm

Width

36 mm

Depth

67 mm

Product weight

0.21 kg

Colour

White

Connections - terminals

Tunnel type terminals (top or bottom) 6 cable(s) 1.5 mm² rigid

IP degree of protection

IP20

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

36

Warranty (in months)

18

External power supply required

No

Supply voltage AC 50 Hz

400 V

Supply voltage AC 60 Hz

400 V

Rated switch current

8 A

Voltage type (supply voltage)

AC

Type of electric connection

Screw connection

With detachable clamps

No

Rated control supply voltage AC 50 Hz

400 V

Rated control supply voltage AC 60 Hz

400 V

Voltage type for actuating

AC

Phase sequence monitoring

Yes

Phase failure detection

Yes

Function under voltage detection

No

Function overvoltage detection

No

Phase imbalance monitoring

Yes

Voltage measuring range

0.15–10 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0 s

Max. permitted off-delay time

0.3 s

Number of contacts as change-over contact

1

Country of origin

Italy

HS Code

8536.90
