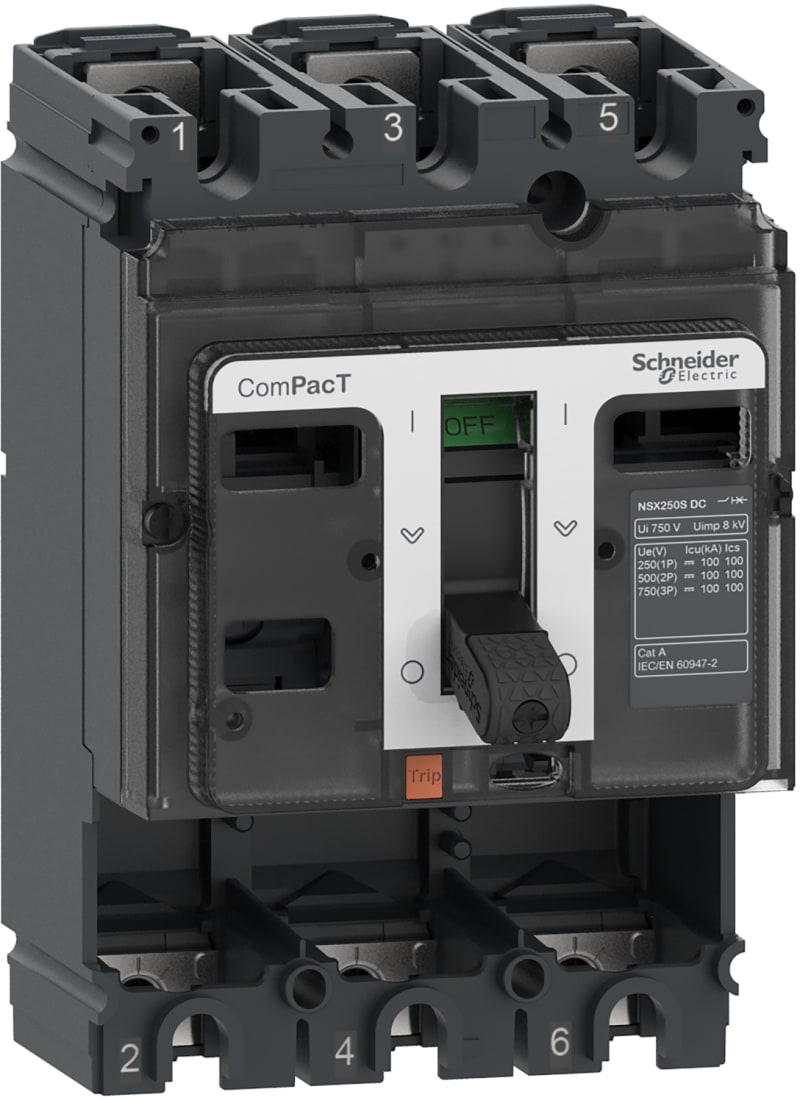

Schneider Electric Circuit breaker basic frame, ComPacT NSX100F DC, 36KA/750VDC, 3 poles, 100A frame rating, without trip unit C10F3D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C10F3D Circuit breaker ComPacT switch base NSX100F DC 3P 36kA/750VDC -without protection.
Technical Specifications
- Manufacturer part number (MPN)
- C10F3D
- EAN / GTIN
- 3606481994752
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 3P
- Breaking capacity
- 36 kA
- Range
- ComPacT
- Product name
- ComPacT NSX DC
- Device short name
- NSX100F DC
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 3P
- [In] rated current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 750 V DC conforming to IEC 60947-2
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity code
- F 36 kA 750 V DC
- Control type
- Toggle
- mounting mode
- Fixed
- [Ui] rated insulation voltage
- 750 V DC conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 36 kA at 250 V DC conforming to IEC 60947-2 (1P); 36 kA at 24...125 V DC conforming to IEC 60947-2 (1P); 36 kA at 500 V DC conforming to IEC 60947-2 (2P); 36 kA at 750 V DC conforming to IEC 60947-2 (3P)
- Maximum breaking time
- 10 ms
- Mechanical durability
- 10000 cycles conforming to IEC 60947-2
- Electrical durability
- 10000 cycles 250 V DC In/2 conforming to IEC 60947-2; 10000 cycles 500 V DC In/2 conforming to IEC 60947-2; 10000 cycles 750 V DC In/2 conforming to IEC 60947-2; 5000 cycles 250 V DC In conforming to IEC 60947-2; 5000 cycles 500 V DC In conforming to IEC 60947-2; 5000 cycles 750 V DC In conforming to IEC 60947-2
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Protection type
- Without protection
- Width (W)
- 105 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Standards
- EN/IEC 60947-2
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to EN 50102
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481994752
- SAP 1200534768
- Code 82688345
