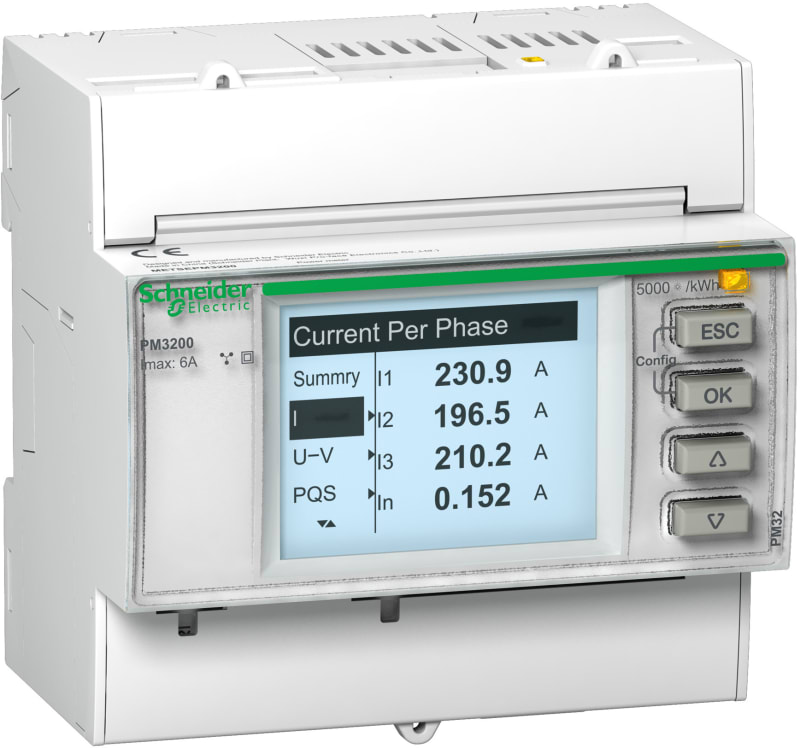

Schneider Electric PM3200 power meter METSEPM3200

Schneider Electric METSEPM3200 PM3200 Modular power analyser.

Manufacturer part number (MPN)

METSEPM3200

EAN / GTIN

3606480481581

Sales unit

pcs

Package quantity

16 pcs

Range

PowerLogic

Product name

PowerLogic PM3000

Product or component type

Power meter

Device short name

PM3200

Market segment

Buildings small building cost management: billing: sub feeder; Buildings medium building cost management: billing: sub feeder; Buildings large building cost management: billing: sub feeder; Buildings multi-site cost management: billing: sub feeder; Data center cost management: billing: sub feeder; Healthcare cost management: billing: sub feeder; Industry cost management: billing: sub feeder; Buildings small building cost management: cost allocation: sub feeder; Buildings medium building cost management: cost allocation: sub feeder; Buildings large building cost management: cost allocation: sub feeder; Buildings multi-site cost management: cost allocation: sub feeder; Data center cost management: cost allocation: sub feeder; Healthcare cost management: cost allocation: sub feeder; Industry cost management: cost allocation: sub feeder

Power quality analysis

up to the 15th harmonic

Device application

Multi-tariff; Sub billing; Power monitoring

Type of measurement

Active and reactive power; Apparent power; Current; Voltage; Energy; Power factor; Frequency

supply voltage

100...277 V AC 45...65 Hz; 173...480 V AC 45...65 Hz; 100...300 V DC

Network frequency

50 Hz; 60 Hz

[In] rated current

5 A; 1 A

type of network

3P + N; 3P; 1P + N

Power consumption in VA

5 VA

Display type

Backlit LCD

Display resolution

128 x 96 pixels

Sampling rate

32 samples/cycle

Measurement current

0.05…6 A; 0.02…1.2 A

Analogue input type

Current 0...5 A; Current 0...1 A

Measurement voltage

50…330 V AC 45...65 Hz direct; 50…330 V AC 45...65 Hz phase to neutral; 80…570 V AC 45...65 Hz direct; 80…570 V AC 45...65 Hz phase to phase; 570…999000 V AC 45...65 Hz with external VT

Frequency measurement range

45…65 Hz

Number of inputs

0

Measurement accuracy

Current 0.3 % 0.5...6 A; Current 0.5 % 0.1...1.2 A; Voltage 0.3 % 50...330 V; Voltage 0.3 % 80...570 V

Accuracy class

Class 0.5S active energy conforming to IEC 62053-22; Class 1 active energy conforming to IEC 62053-21; Class 2 reactive energy conforming to IEC 62053-23; Class C active energy conforming to EN 50470-3

Number of outputs

0

Information displayed

Tariff (4)

Communication port protocol

-

Communication port support

-

Data recording

Min/max of instantaneous values

mounting mode

Clip-on

Mounting support

DIN rail

Standards

BS EN 61557-12; IEC 61557-12; EN 61557-12; BS EN 61326-1; IEC 61326-1; EN 61326-1; BS EN 62052-11; IEC 62052-11; EN 62052-11; BS EN 62053-21; IEC 62053-21; EN 62053-21; BS EN 62053-22; IEC 62053-22; EN 62052-22; BS EN 62053-23; IEC 62053-23; EN 62052-23; BS EN 61010-1; EN 61010-1; IEC 61010-1; UL 61010-1; BS EN 61010-2-30; IEC 61010-2-30; EN 61010-2-30; UL 61010-2-30; ANSI C12.20

Product certifications

CE conforming to IEC 61010-1 (safety); CE conforming to EN 61557-12 (power monitor); CE conforming to EN/IEC 61326-1 (EMC); UKCA conforming to BS EN 61010-1 (safety); UKCA conforming to BS EN 61557-12 (power monitor); UKCA conforming to BS EN 61326-1 (EMC); CULus conforming to EN 61010-1 (safety); CULus conforming to UL 61010-1 (safety); EAC (sub-meter); RCM

Width

90 mm

Depth

70 mm

Height

95 mm

Product weight

0.26 kg

Electromagnetic compatibility

Electrostatic discharge level 4 conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; Surge immunity test level 4 conforming to IEC 61000-4-5; Conducted RF disturbances level 3 conforming to IEC 61000-4-6; Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8; Conducted and radiated emissions class B conforming to EN 55022

Overvoltage category

III

IP degree of protection

IP40 front panel: conforming to IEC 60529; IP20 body: conforming to IEC 60529

Relative humidity

5…95 % at 50 °C

Pollution degree

2

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

< 3000 m

Compatibility code

PM3200

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.800 cm

Package 1 Width

13.200 cm

Package 1 Length

13.700 cm

Package 1 Weight

401.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.829 kg

Country of origin

CN

Warranty (in months)

18

Measured value memory

No

Power factor

Yes

Suitable for RJ plug

No

Step angle (cos phi)

No

Harmonics measurement

No

Pulse output

None

Calibrated

No

Max. current (Imax)

10 A

Measurement type load profile

No

With communication interface KNX

No

With communication interface M-Bus

No

With communication interface RS-485

No

Model

Measurement transformer

Mounting method

DIN rail

Nominal current (In)

5 A

Pole type

Three conductor/four conductor

Apparent power

Yes

Connectable conductor cross section solid-core

6 mm²

Ampere meter

Yes

Reactive power meter

Yes

With rotational speed meter

No

Frequency meter

No

Pulse counter

No

Voltmeter

Yes

Effective power measurement device

Yes

Sampling frequency

3200 Hz

Number of voltage measurement inputs

4

Number of current measurement inputs

6

Voltage type (supply voltage)

AC/DC

Supply voltage AC 50 Hz

173–480 V

Supply voltage AC 60 Hz

173–480 V

Supply voltage DC

100–300 V

Measuring range for frequency

45–65 Hz

Display

LCD

Remote display

No

Supporting protocol for IEC 61850 Ethernet

No

Supporting protocol for OPC UA PubSub

No

Supporting protocol for PROFIBUS

No

Supporting protocol for Modbus

Yes

Supporting protocol for PROFINET IO

No

Supporting protocol for other bus systems

No

With audit logging (audit log)

No

With firmware signature

No

With logging of security events (security event log)

No

With Role Based Access Control (RBAC)

No

Web server with HTTPS transfer protocol

No

Degree of protection (IP), front side

IP40

HS Code

9028.30
