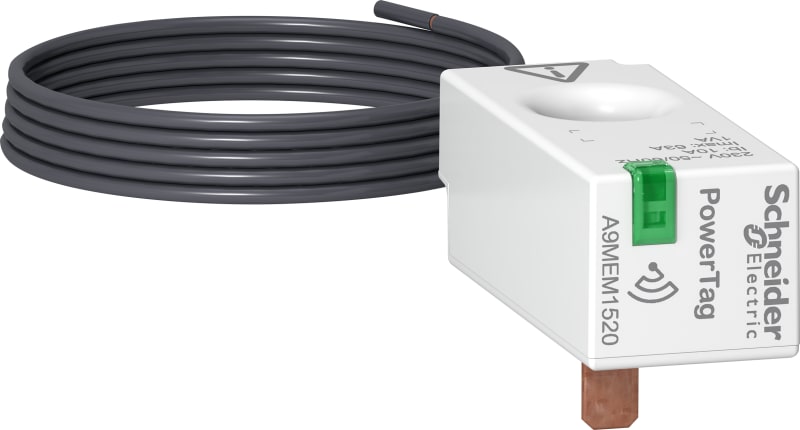

Schneider Electric A9MEM1520 PowerTag Monoconnect Energy Sensor 63 A 1P

Schneider Electric A9MEM1520 is a PowerTag Monoconnect wireless energy sensor for 1-pole circuits up to 63 A. It mounts to the top or bottom terminals of Acti9 and Multi9 breakers and reports voltage, current, active power, power factor, and active energy back to an EcoStruxure Panel Server or Smartlink concentrator. Accuracy is Class 1 for current/power/energy and Class 0.5 for voltage per IEC 61557-12.

Manufacturer part number (MPN)

A9MEM1520

EAN / GTIN

3606480909122

HS code

8536.90

Sales unit

pcs

Package quantity

48 pcs

Rated current

63 A

Number of poles

1P

Range of product

PowerLogic

Product name

PowerTag A9 M63

Product or component type

Energy sensor

Poles

1P

Maximum current [Imax]

63 A

[Ib] Basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

Load monitoring; Overload alarm; Cost allocation; Circuit monitoring; Energy management

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Wiser hub generation 2; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Application

Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm

Range compatibility

Acti9 Acti9 iKQE RCBO; Multi9 Multi9 C60; Multi9 Multi9 ID; Multi9 Multi9 C32N; Multi9 Multi9 C65; Acti9 Acti9 iID; Acti9 Acti9 iID K; Acti9 Acti9 iK60; Acti9 Acti9 iKQ; Acti9 Acti9 K60; Acti9 Acti9 Reflex iC60; Acti9 Acti9 iC65; Acti9 Acti9 DT60; Acti9 Acti9 iC60 single terminal

Type of measurement

Voltage; Power factor; Active energy; Current; Active power

Accuracy class

Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12

Mounting location

Top or bottom

Mounting support

On circuit breaker

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

Monoconnect

Mounting mode

By screws (terminals)

Electrical connection (voltage sensing & power supply)

Connector tooth and wire

Cable cross section

1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²

Cable length

1 m

supply voltage

200...240 V AC, +/- 20 %

Cable composition

1 x 0.33 mm²

Network frequency

50 Hz; 60 Hz

Maximum power consumption

1 VA

Standards

IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1

Product certifications

IEC; DNV Marine

Height

16.5 mm

Width

18 mm

Depth

43 mm

Product weight

16.4 g

Colour

White (RAL 9003)

Compatibility code

PowerTag A9 M63

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Overvoltage category

III conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Relative humidity

0…95 % at 45 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use

Country of origin

LV

Warranty (in months)

18

HS Code

8536.90
