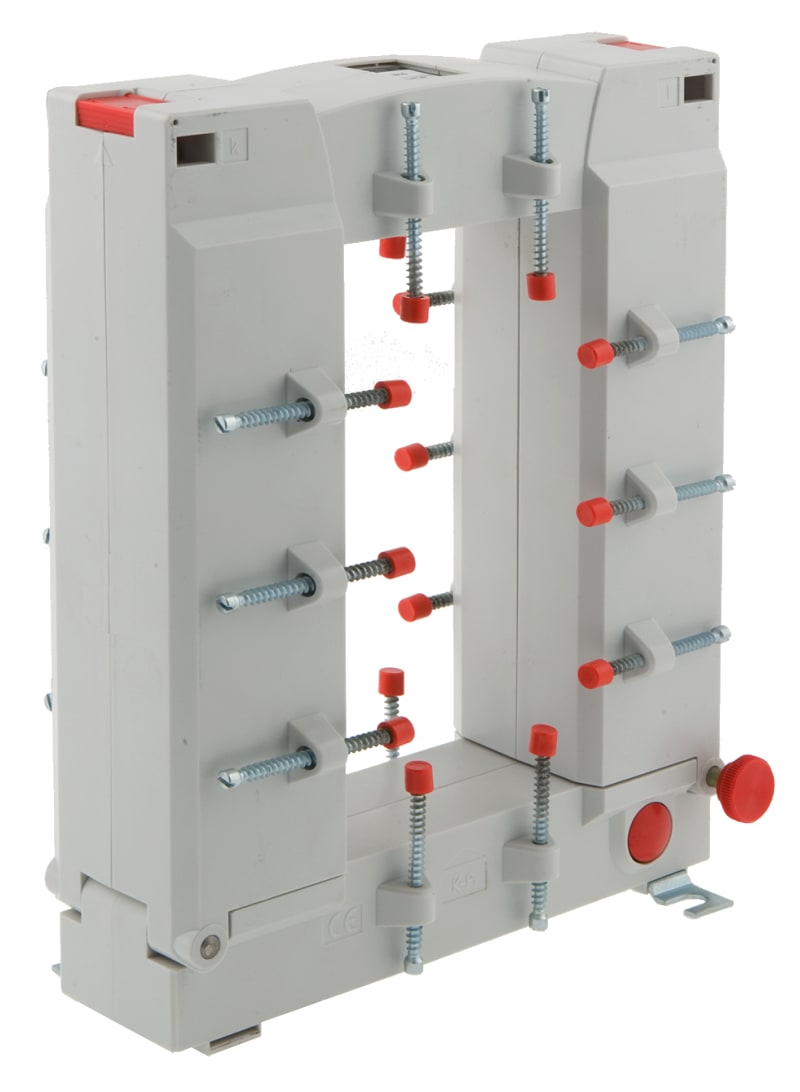

Divisible currenttraf GJ400 4000/5A

Schneider Electric METSECT5GJ400 CT Split Core Busbar 4000/5A 15VA cl.0.5 for rail 85x165mm.

Manufacturer part number (MPN)

METSECT5GJ400

EAN / GTIN

3606489608118

Sales unit

pcs

Package quantity

3 pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 15 VA

[In] rated current

4000 A

Current transformer type

Standard for busbar; Split core

Current transformer ratio

4000/5

[Ith] conventional free air thermal current

4000 A

Maximum safety factor

10

Permissible current

60000 A during 1 s

[Ue] rated operational voltage

< 720 V 50 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

By screws

Mounting support

DIN rail; Fastened onto a surface with screws

Width

Outside: 195 mm; Inner: 85 mm

Height

Outside: 243 mm; Inner: 165 mm

Depth

79 mm

Electrical insulation class

Class E

Opening of bars

85 x 165

Standards

VDE 0414; DIN 42600-2; DIN EN 61869-1; DIN EN 61869-2

Ambient air temperature for operation

-5…40 °C

Ambient air temperature for storage

-25…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

3

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

4000 A

Rated secondary current

5 A

Rated secondary apparent power

15 VA

Overcurrent limiting factor

FS 10

Calibrated

No

With contact protection

No

Height opening

165 mm

Width opening

85 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

Country of origin

Hungary

HS Code

8504.31

• EAN 3606489608118
• SAP 1200361131
• Code 82368186
