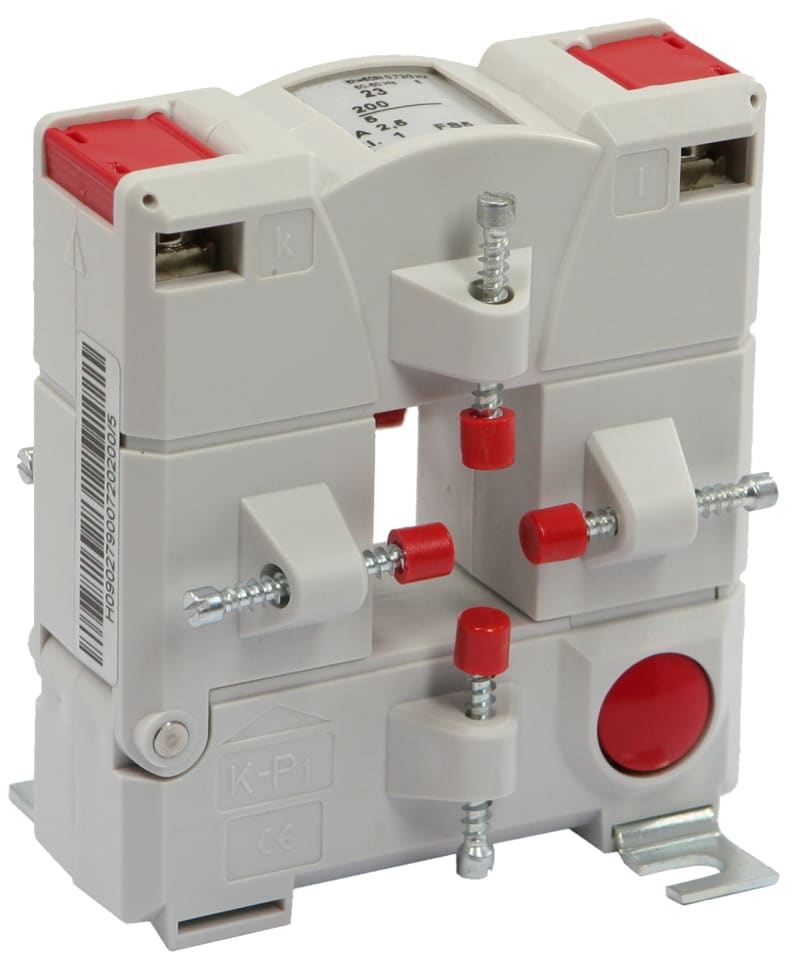

Divisible current transformer GD080 800/5A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric METSECT5GD080 CT Split Core Busbar 800/5A 2.5VA cl.0.5 for rail 55x85mm.
Technical Specifications
- Manufacturer part number (MPN)
- METSECT5GD080
- EAN / GTIN
- 3606489607913
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PowerLogic
- Product or component type
- Current transformer
- Product name
- CT
- Secondary current
- 5 A
- Accuracy class
- Class 0.5 at 2.5 VA
- [In] rated current
- 800 A
- Current transformer type
- Standard for busbar; Split core
- Current transformer ratio
- 800/5
- [Ith] conventional free air thermal current
- 800 A
- Maximum safety factor
- 5
- Permissible current
- 48000 A during 1 s
- [Ue] rated operational voltage
- < 720 V 50 Hz
- [Ui] rated insulation voltage
- 3 kV 50 Hz for 1 minute
- mounting mode
- By screws
- Mounting support
- DIN rail; Fastened onto a surface with screws
- Width
- Outside: 125 mm; Inner: 55 mm
- Height
- Outside: 158.15 mm; Inner: 85 mm
- Depth
- 58 mm
- Electrical insulation class
- Class E
- Opening of bars
- 55 x 85
- Standards
- VDE 0414; DIN 42600-2; DIN EN 61869-1; DIN EN 61869-2
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Model
- Through-feed current converter
- Rated primary current
- 800 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 2.5 VA
- Overcurrent limiting factor
- FS 5
- Calibrated
- No
- With contact protection
- No
- Height opening
- 85 mm
- Width opening
- 55 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Screw connection
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606489607913
- SAP 1200361128
- Code 82368673
