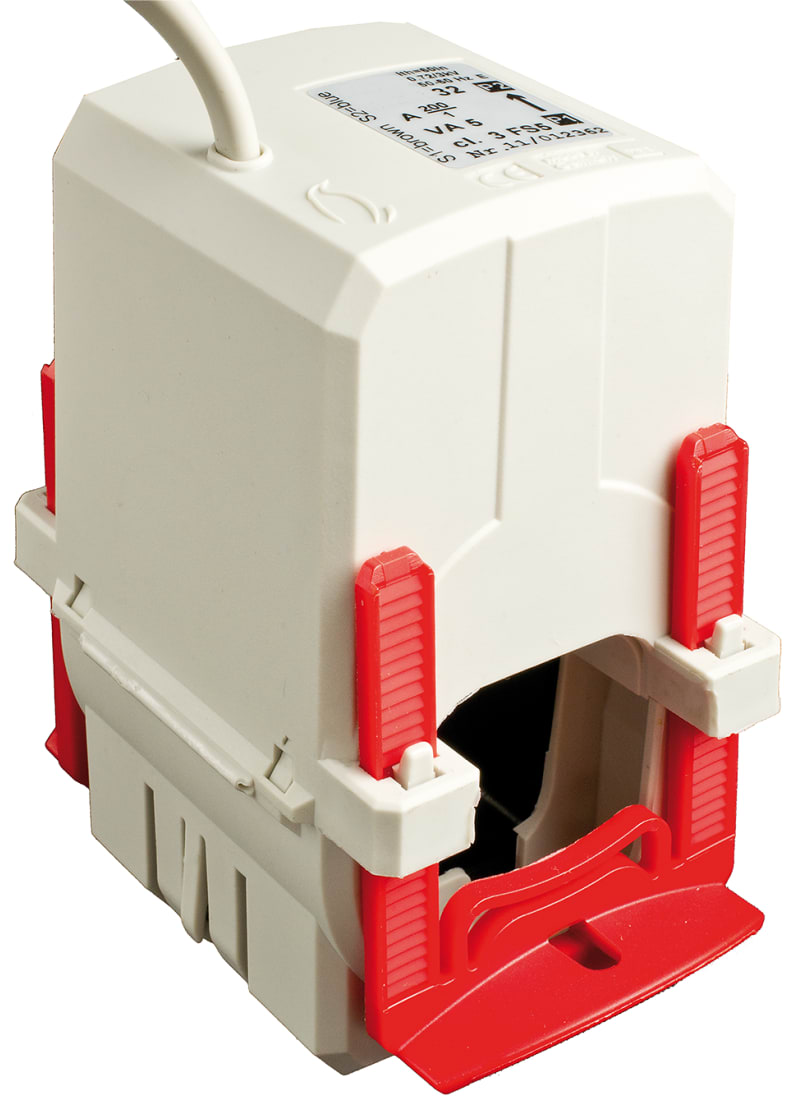

Divisible current transformer HG015 150/5A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric METSECT5HG015 Split Core CT Cable 150/5A 3VA cl.3 for cable Ø=32,5mm.
Technical Specifications
- Manufacturer part number (MPN)
- METSECT5HG015
- EAN / GTIN
- 3606489608262
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range
- PowerLogic
- Product or component type
- Current transformer
- Product name
- CT
- Secondary current
- 5 A
- Accuracy class
- Class 3 at 3 VA
- [In] rated current
- 150 A
- Current transformer type
- Standard for cable; Split core
- Current transformer ratio
- 150/5
- [Ith] conventional free air thermal current
- 180 A
- Maximum safety factor
- 5
- Permissible current
- 9000 A during 1 s
- [Ue] rated operational voltage
- < 720 V 50 Hz
- [Ui] rated insulation voltage
- 3 kV 50 Hz for 1 minute
- mounting mode
- Clip-on
- Width
- Outside: 59.2 mm
- Height
- Outside: 96.4 mm
- Depth
- 89.2 mm
- Diameter
- 32.5 mm inner:
- Electrical insulation class
- Class E
- Cable outer diameter
- 32.5 mm
- Connections - terminals
- Cable 2 cable(s) 0.5…1.5 mm² 0.5 m
- Standards
- DIN EN 60044-1; DIN EN 61869-1; DIN EN 61869-2; VDE 0414
- Ambient air temperature for operation
- -5…50 °C
- Ambient air temperature for storage
- -25…70 °C
- Warranty (in months)
- 18
