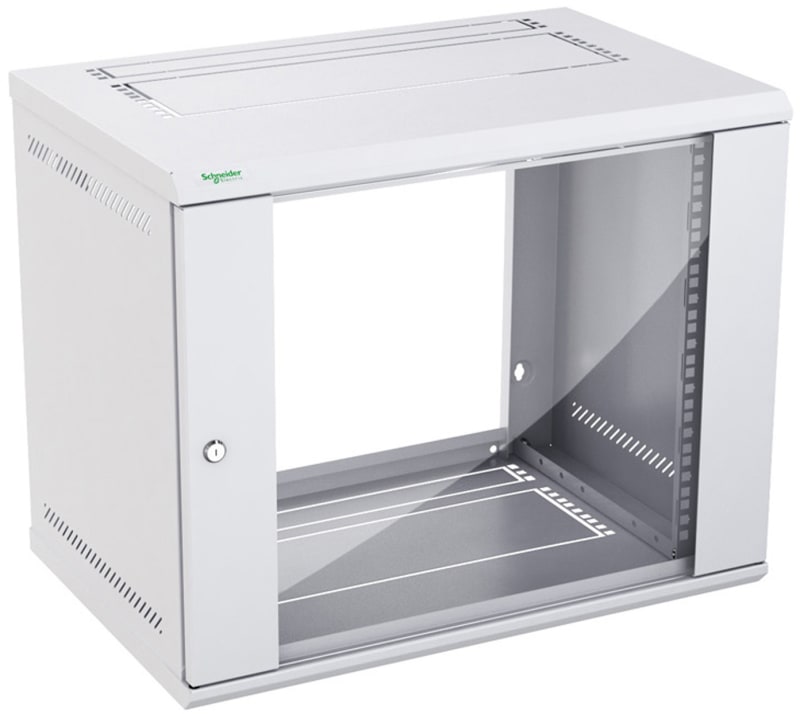

Schneider Electric Actassi KDB - Wall-Mounted KD Box 9U D400 F 19" Glazed NSYKDB9U4F
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYKDB9U4F Wall-mount cabinet KDB flatpk 9U D400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYKDB9U4F
- EAN / GTIN
- 3606480529627
- Sales unit
- pcs
- Rack units
- 9U
- Range
- Actassi
- Product name
- Actassi KDB
- Product or component type
- 19" enclosure
- Device application
- Cabling
- applications
- To mount 19" equipment; To protect network connectivity equipment
- enclosure type
- Knock down box
- support equipment
- 2 x 19" uprights recessed of 120 mm from the front (pitch 25 mm)
- front face
- Glazed door
- Door type
- Front glazed door - with key lock (key: 333) - reversible opening at 180 °
- Accessibility for operation
- Front; Rear
- Removable parts
- Front door removable toolless
- colour
- Light grey (RAL 7035)
- Device composition
- 3 x cable entries; 1 x glazed door front; 2 x panels side; 2 x 19" uprights front; 1 x dismountable structure
- load rating
- 50 kg static; 3 kg by unit
- back face
- Cut-out
- side face
- Panel
- Number of cut-out
- 1 cut-outside; 19" knock down entry cable: top and bottom; 19" knock down entry fan plate: top and bottom
- installation mode
- Wall mounted
- Material
- Sheet steel: structure; Sheet steel: door; Sekurit glass: door; Sheet steel: 19" upright
- Surface finish
- Epoxy-polyester powder
- Width
- 600 mm
- Height
- 485.1 mm
- Depth
- 400 mm
- Product weight
- 16.28 kg
- Number of rack unit
- 9U
- Targeted region
- Europe
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP20 conforming to IEC 60529
- Standards
- EIA-310E; IEC 60297-3-100
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 21
- Warranty (in months)
- 18
- Mounting level
- Front side
- Model
- With permanent frame
- Type of profile rail
- None
- Number of doors
- 1
- Type of ventilation
- None
- Number of height units
- 9
- Max. load capacity
- 50 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- India
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480529627
- SAP 1000396626
- Code 8467214
Product Documentation
