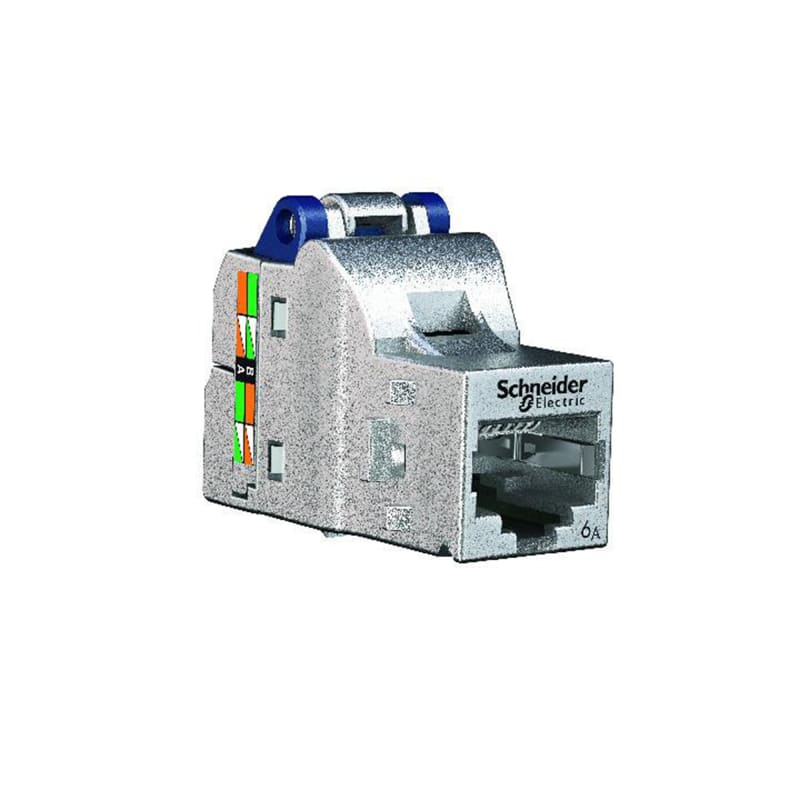

Schneider Electric RJ45 network socket, Actassi, Shielded, Cat 6A, DPM box x 12, silver VDIB1771XB12

Schneider Electric VDIB1771XB12 Actassi S-One shielded connector DPM category 6A for link class EA.

Manufacturer part number (MPN)

VDIB1771XB12

EAN / GTIN

3606480384783

Sales unit

pcs

Package quantity

12 pcs

Rated current

6 A

Range

Actassi

product type

RJ45 network socket

Device presentation

Integrated one piece design

Colour tint

Connector: silver (zamak); Wire organizer: dark blue (ABS + PC)

Wiring Colour configuration

568 A/B

Type of packing

Carton

Quantity per set

Set of 12

[In] rated current

1.5 A at 25 °C

voltage proof

1000 V AC/DC peak, between contacts; 1500 V AC/DC peak, between contacts and shield

Contact resistance

20 mOhm

Insulation resistance

Initial insulation resistance: >= 500 MOhm at 100 V DC

AWG gauge

24 AWG...23 AWG

durability

750 cycles

Coupling attenuation

>= 45 dB at 30…100 MHz; >= 85 - 20 x log(f) dB at 100…1000 MHz

contact pins

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Shield Type

Metallic: 360° self adjusting + drain wire contact; Integrated short circuit barrier

Pulling force

50 N during 60 s

Transfer impedance

<= 0.1 Ohm at 1 MHz; <= 0.2 Ohm at 10 MHz; <= 1.6 Ohm at 80 MHz

Transverse conversion loss

>= 50 dB; >= 68 - 20 x log(f) dB at 1…500000 kHz

Tool type

Without tool

Cable outer diameter

0.9…1.4 mm

compatible LAN cable types

STP

Communication network category

6A

supported applications

10GBASE-T

protocols

VoIP (Voice IP); PoE+ (Power over Ethernet); 4PPoE 100W (Power over Ethernet)

Product compatibility

RJ45 plug

Transmission frequency

0…500 MHz

Type of footprint

S-One DPM

Material

Zamak: connector; ABS + PC: wire organizer

Height

28 mm

Length

35 mm

Width

18 mm

Targeted region

Europe; Asia Pacific.

Main colour tint

Silver

operational temperature range

-40…70 °C

climatic category

40/070/21 (21 days)

Flame retardance

UL94-V0

Standards

ANSI/TIA-568-C.2; IEC 60603-7-5; ISO/IEC 11801:2011 Ed.2.2; UL 1863; IEC 60512-99-002

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

216

Warranty (in months)

18

Colour

Silver

Model

Bus (jack)

Screened

Yes

Category

6A (IEC)

Suitable for round cable

Yes

Suitable for flat cable

No

Suitable for litz wire conductor

No

Suitable for solid conductors

Yes

Type of connector

RJ45 8(8)

Transparent

No

Special tool necessary

No

Min. AWG-size

24

Country of origin

Denmark

HS Code

8536.69
