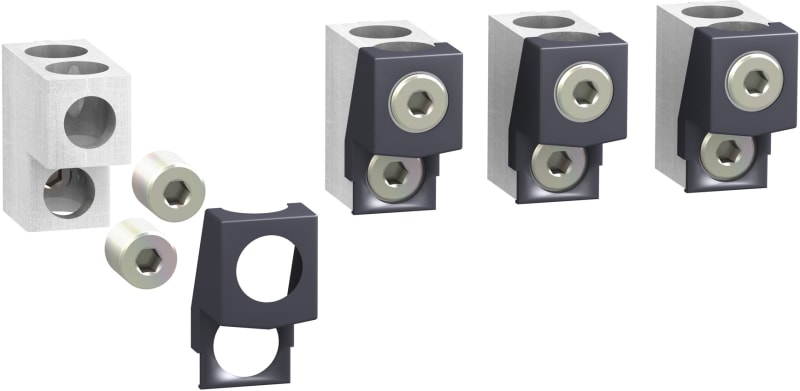

Schneider Electric LV432482 — Aluminium Bare Cable Connector, ComPacT NSX / EasyPact CVS, 2 cables 35–240 mm², 630 A (set of 4)

Schneider Electric LV432482 is a set of 4 aluminium bare-cable connectors for the ComPacT NSX 400/630 and EasyPact CVS 400/630 moulded-case circuit-breaker range. Each connector receives 2 cables of bare copper or aluminium conductor from 35 mm² to 240 mm² directly, without a separate lug, and carries the device rated current of up to 630 A. The connectors snap onto the breaker output terminals or onto terminal extensions where they are secured by a clip. Supplied as a set of 4 — one connector per pole for a 4-pole device. Conforms to IEC 60947-2 as a circuit-breaker connection accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

Aluminium bare cable connector for moulded-case circuit breaker

Compatible devices

ComPacT NSX 400/630 and EasyPact CVS 400/630

Conductor accepted

bare copper or aluminium cable

Cables per pole

2

Conductor cross-section

35 mm² to 240 mm²

Rated current

up to 630 A

Connector body material

Aluminium

Mounting

snaps onto the device terminals or terminal extensions (secured by clip)

Supplied as

set of 4 (one connector per pole; 4-pole device)

Standard

IEC 60947-2 (circuit-breaker connection accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV432482

EAN / GTIN

3606480019401

Sales unit

set

Package quantity

10 pcs

HS code

8536.90

Product or component type

Bare cable connector

Accessory / separate part category

Connection accessory

Range compatibility

ComPacT ComPacT NSX400; ComPacT ComPacT NSX630; ComPacT ComPacT NSX DC; ComPact Compact NSX400; ComPact Compact NSX630; ComPact Compact NSX400 DC; ComPact Compact NSX630 DC; ComPact; EasyPact EasyPact CVS400; EasyPact EasyPact CVS630; ComPact ComPacT INS; ComPact Compact INV

Poles description

4P

Quantity per set

Set of 4

[In] rated current

630 A

Conductor material

Aluminium

Connections - terminals

Screw terminal2 cable(s) 35…240 mm²

Warranty (in months)

18

Standard

IEC 60947-2

Material

Aluminium

HS Code

8536.90
