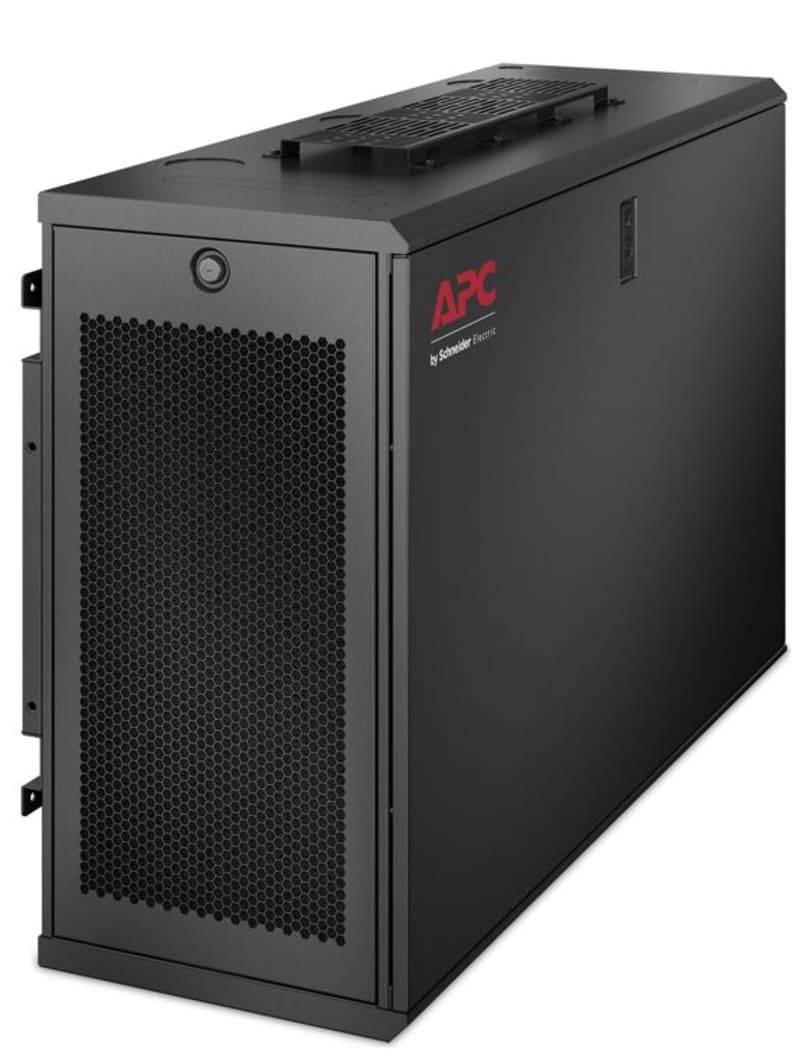

Schneider Electric APC NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 230V Server Depth AR106VI

Schneider Electric AR106VI Netshelter 6U wall-mounted 19" rack, input IEC 60320 C13, 230V.

Manufacturer part number (MPN)

AR106VI EAN / GTIN: 0731304402015 Sales unit: pcs Rack units: 6U Presentation: APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets. It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge! Product or component type: Rack enclosure Main Input Voltage: 230 V Input Connection Type: IEC 60320 C13 Number of rack unit: 6U Height: 648 mm Width: 353 mm Depth: 968 mm Product weight: 36.29 kg Colour: Black Mounting support: Wall Mounting preference: No preference mounting mode: Not rack-mountable Mounting position: Vertical Maximum mounting depth: 762 mm minimum mounting depth: 762 mm Rack width: 19" Permanent permissible load: 113.4 kg dynamic; 113.4 kg static Network frequency: 50 Hz Standards: UL 2416 Air flow: 103.8 l/s Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 42.7 cm Package 1 Width: 73.4 cm Package 1 Length: 106.4 cm Package 1 Weight: 44.91 kg Country of origin: CN Warranty (in months): 60 Mounting level: Front and rear Type of profile rail: L-shape Number of doors: 2 Type of ventilation: Active Number of height units: 6 Max. load capacity: 113 kg With roof plate: Yes With front door: Yes With sidewall: Yes Demountable: Yes material: Steel Surface finishing: Powder coating Degree of protection (IP): IP20

HS Code

9403.20

• EAN 0731304402015
• SAP 1200381320
• Code 82441434
