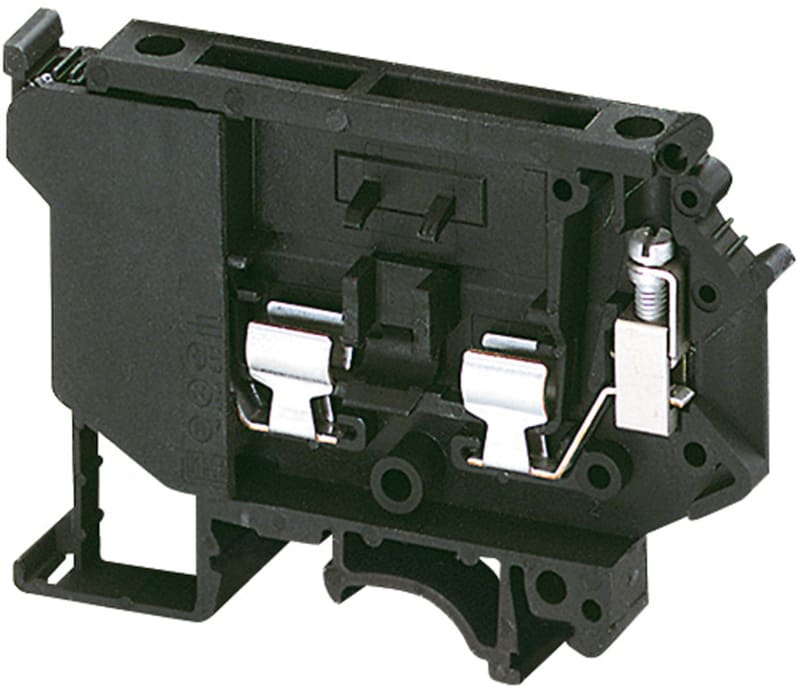

Sikringkl, 5X20 4mm² with led 24V

Schneider Electric NSYTRV42SF5LD Sikringkl, 5x20 4mm² with led 24V.

Manufacturer part number (MPN)

NSYTRV42SF5LD

EAN / GTIN

3606480532344

Sales unit

pcs

Package quantity

50 pcs

Voltage

24 V

Conductor cross-section

4 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Terminal block type

Fused disconnect

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

4 mm²

Length

72.5 mm

Colour

Black

Quantity per set

Set of 50

Fuse size

5 x 20 mm

Width

8.2 mm

Height

56.5 mm

Connections - terminals

1 x screw terminal: upstream; 1 x screw terminal: downstream

number of connections

2

Connection position

Sideways

Number of measurement input

0

Cable cross section

0.2…4 mm², flexible without cable end; 0.2…4 mm², solid

Tightening torque

0.5…0.8 N.m

Wire stripping length

8 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

500 V conforming to EN/IEC 60947-7-1; 600 V UL; 600 V CSA

[In] rated current

6.3 A conforming to EN/IEC 60947-7-1; 12 A UL; 6.3 A CSA

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

20 g

Provided equipment

12...30 V light indicator

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

CSA; UL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Country of origin

TR

Warranty (in months)

18

Type of fuse insert

G-fuse 5x20 mm

Type of fuse holder

Swivelling

Type of indication element for defect indication

LED

Supply voltage for defect-indication

12–30 V

Voltage type for defect indication

AC/DC

Connectable conductor cross section solid-core

0.5–4 mm²

Connectable conductor cross section multi-wired

0.5–4 mm²

Rated current In

6.3 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

8.2 mm

Depth

72.5 mm

Closing plate required

Yes

HS Code

8536.90
