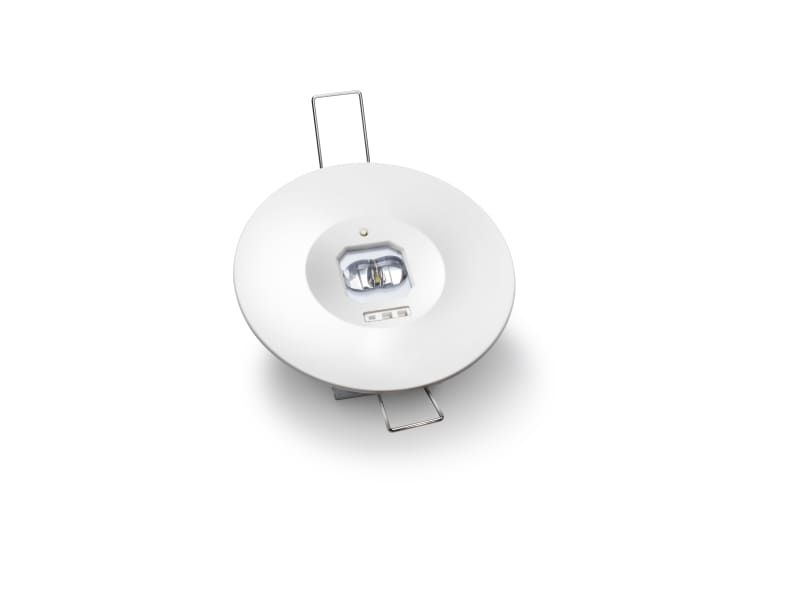

Schneider Electric Emergency luminaire, Exiway Smartbeam Activa Dicube, recessed, open area, 1.5H, 220LM, IP42, white OVA48953

Schneider Electric OVA48953 Exiway Smartbeam emergency lighting Activa/Dali, 0,5 lux, recessed, symmetric, 1.5 t, M/NM, IP42, LiFePO4.

Manufacturer part number (MPN)

OVA48953

EAN / GTIN

3606486433287

Sales unit

pcs

IP rating

IP42

Range

Exiway

Product name

Exiway Smartbeam DiCube

Product or component type

Emergency luminaire

Device application

Open area lighting

Function

Addressable; Self-test

Operational mode

Maintained; Non-maintained

Number of batteries

1 x 3.2 V 1.5 Ah LiFePO4

Colour tint

White

Light source

LED

Light source colour

White

Cover type

Transparent

Wiring device additional information

Can be inhibited with rest mode via TBS range of remote controls; With ring support; Pictograms to be ordered separately

Device mounting

Flush

Mounting support

False ceiling

Control type

Via bus: status indication

[Ue] rated operational voltage

230 V AC 50/60 Hz

Power consumption in VA

7.5 VA maintained; 3.4 VA non-maintained

Power consumption in W

3.66 W maintained; 0.22 W non-maintained

Electrical insulation class

Class II

Communication port protocol

DALI

LED lifespan

100000 h

Function available

Automatic addressing of emergency lighting by means of control unit

Test function

Automatic periodical functional & duration test

Autonomy

1.5 h

Charging time

12 h

Luminous flux

220 lm for 1.5 h

Illuminance

0.5 lux

Material

Polycarbonate self-extinguishing

Depth

32 mm

Diameter

90 mm

Product weight

0.3 kg

IP degree of protection

IP42

IK degree of protection

IK04

fire resistance

850 °C

Product certifications

ENEC; CE

Ambient air temperature for operation

0…40 °C

Standards

EN 60598-2-22; EN 62034; EN 62471

Number of Units in Package 1

1

Number of Units in Package 2

10

Warranty (in months)

18

Mounting method

Surface mounting/recessed mounting

Type of indicator

Single/double-sided

Wiring system

Continuous circuit/emergency circuit

Power supply system

Peripheral (individual battery)

Battery technology

Lithium-ion

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Lamp holder

None

Number of lighting heads

1

Housing material

Plastic

Housing colour

White

Material cover

Plastic, transparent

Voltage type

AC

Type of control gear

LED operating device current-controlled

Light distributor

Diffuser lens/optic/panel

Luminous flux in emergency mode

220 lm

Rated lifetime L70/B50 at 25 °C

100000 h

Degree of protection (IP)

IP42

Impact strength

IK04

Protection class according to IEC 61140

II

Max. system power

3.66 W

Rated luminous flux according to IEC 62722-2-1

220 lm

Recognition distance

20 m

Height/depth

32 mm

Outer diameter

90 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

2

Conductor cross section

2.5 mm²

Connection type

Plug-in connection

Emergency power supply system

Peripheral (individual battery)

Power consumption in emergency mode

3.66 W

Type of lithium-ion battery

Lithium iron phosphate (LiFePO4)

Country of origin

China

HS Code

9405.11
