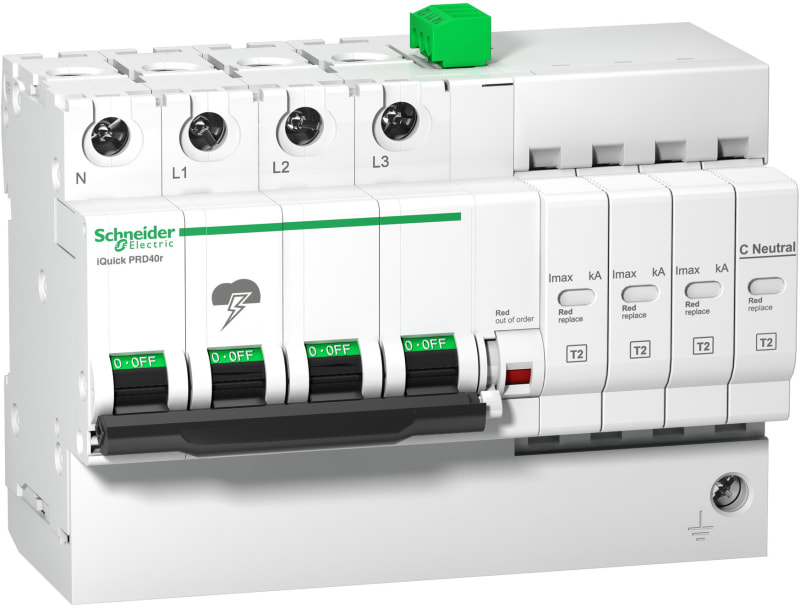

Schneider Electric iQuick PRD40R modular surge arrester - 3 poles + N - 350V - with remote transfer A9L16294

Schneider Electric A9L16294 Surge protection device iQuick PRD 40r 3P+N.

Manufacturer part number (MPN)

A9L16294

EAN / GTIN

3606480387067

Sales unit

pcs

Package quantity

12 pcs

Number of poles

3P+N

Range of product

IQuick PRD

Product name

Acti9 iQuick PRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iQuick PRD40r

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Quality labels

KEMA-KEUR; NF

Poles description

3P + N

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TN-S; TT

Surge arrester class type

Type 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230/400 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 20 kA (L/PE); Common mode: 20 kA (N/PE); Differential mode: 20 kA (L/N)

Maximum discharge current

Common mode: 40 kA L/PE; Common mode: 40 kA N/PE; Differential mode: 40 kA L/N

[Uc] maximum continuous operating voltage

Common mode: 264 V N/PE; Common mode: 350 V L/PE; Differential mode: 350 V L/N

Maximum [Up] voltage protection level

Common mode 1.5 kV type 2 L/PE; Common mode 1.5 kV type 2 N/PE; Differential mode 2.5 kV type 2 L/N

Disconnector device type

Integrated circuit breaker - Icu 20 kA

Signalling circuit voltage

2 A/250 V AC 50/60 Hz

Mounting mode

Clip-on (DIN rail)

9 mm pitches

14.7

Height

94 mm

Width

131.5 mm

Depth

75.9 mm

Product weight

0.86 kg

Colour

White (RAL 9003)

Connections - terminals

Tunnel type terminal (upside) 2.5…35 mm²; Tunnel type terminal (downside) 2.5…25 mm²

Tightening torque

2.5 N.m

Compatibility code

IQuick PRD40r

IK degree of protection

IK05 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

HU

Warranty (in months)

18

System configuration

TT

System configuration DC

No

System configuration IT

No

System configuration TN

No

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Number of conductors (without earthing)

3

Nominal discharge surge current (8/20)

20 kA

Max. discharge surge current (8/20)

40 kA

Short-circuit-proof

Yes

Nominal voltage AC

400 V

Max. continuous voltage AC

350 V

Voltage protection level

1.5 kV

Voltage protection level L-N

2.5 kV

Voltage protection level N-PE

1.5 kV

Short-circuit breaking capacity (Isccr)

20 kA

Integrated short-circuit protection

Yes

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

35 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

HS Code

8536.30
