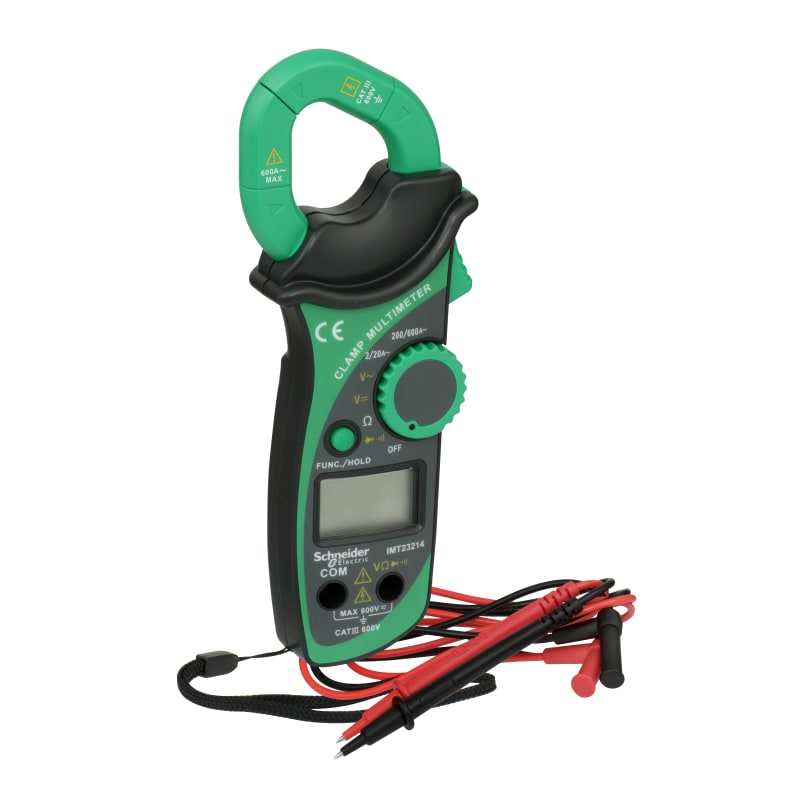

Digital clamp meter (IMT23114)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT23114 Thorsman Digital clamp meter.
Technical Specifications
- Manufacturer part number (MPN)
- IMT23114
- EAN / GTIN
- 3606481275752
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Automatic
- True RMS measurement
- No
- Continuity test
- Yes
- Interface
- No
- Frequency measurement
- No
- With decibel measurement (dB)
- No
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Bluetooth interface
- No
- Resistance test/diode test
- No
- Inductance measurement
- No
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 600 A
- Max. resistance measuring range
- 20 MOhm
- Max. value storage
- No
- Measuring circuit category
- CAT III
- Min. value storage
- No
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- No
- Peak value memory
- No
- Duty cycle measurements
- No
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.31
Cross References
- EAN 3606481275752
- SAP 1200510277
- Code 82652454
Product Documentation
