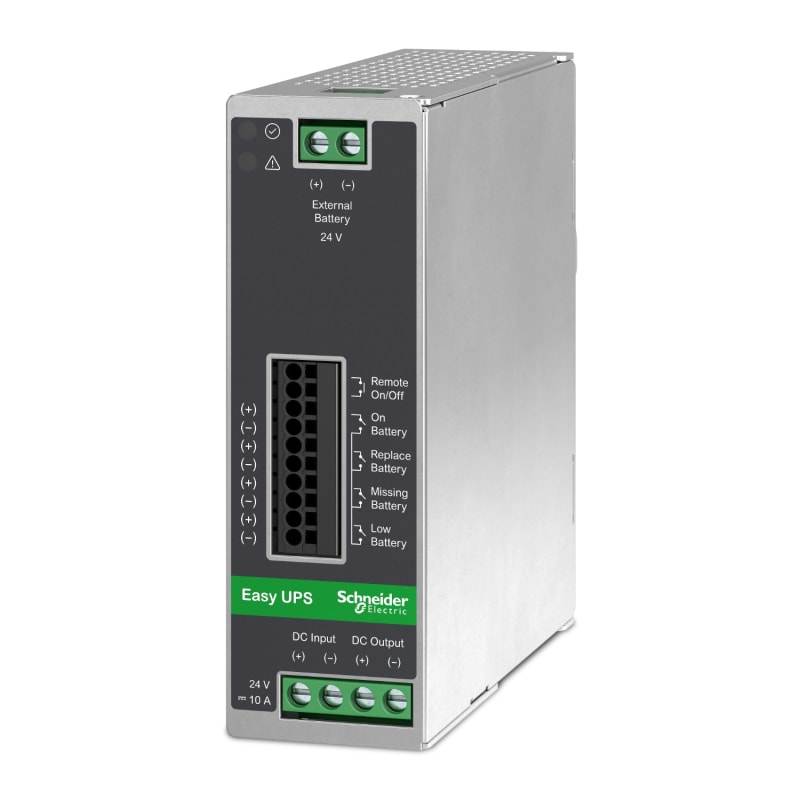

Schneider Electric Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 10A BVS240XDPDR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BVS240XDPDR 24V DC 10A Din Rail Switch Power Supply.
Technical Specifications
- Manufacturer part number (MPN)
- BVS240XDPDR
- EAN / GTIN
- 0731304436942
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 24 V
- Rated current
- 10 A
- Main Input Voltage
- 24 V DC
- Product or component type
- Power module
- Main Output Voltage
- 24 V DC
- Rated power in W
- 240 W
- Connections - terminals
- 1 2 pins
- battery type
- External battery system
- Battery voltage
- 24 V
- Number of power module
- 1
- Provided equipment
- User manual
- Colour
- Metal grey
- Height
- 129 mm
- Width
- 40 mm
- Depth
- 119 mm
- Product weight
- 0.5 kg
- mounting mode
- DIN rail mount
- Mounting position
- Horizontal
- Number of input connectors
- 1 terminal block 2-wire
- Input voltage limits
- 21.6...28.8 V 24 V DC
- Maximum input current
- 10 A
- Input protection type
- Integrated fuse (not interchangeable); Protected against short-circuit; Against reverse polarity
- Wave type
- DC
- Output overload operation
- 60 seconds at 130% and 30 seconds at 145%
- Efficiency
- 95 %
- Maximum output current
- 10 A
- Product certifications
- CE; TÜV
- Standards
- UL 60950-1; IEC 62368-1; CSA-C22.2 No 62368-1-14; IEC 61010-1
- Ambient air temperature for operation
- -15…50 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…70 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…3000 m
- Acoustic level
- 40 dB
- IP degree of protection
- IP20
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0731304436942
- SAP 1200581937
- Code 82970638
Product Documentation
