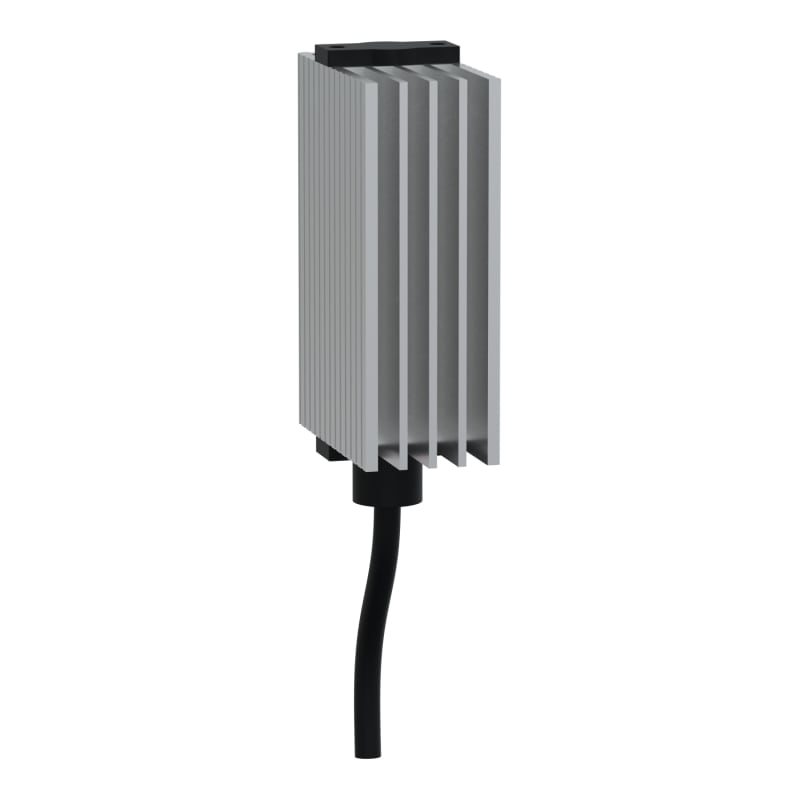

Schneider Electric ClimaSys PTC heating resistance 10W, 12-24V NSYCR10WU1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR10WU1 HEATING ELEMENT 10W 12-26V DC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR10WU1
- EAN / GTIN
- 3606480152108
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Power
- 10 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 10 W
- Input voltage
- 12...24 V DC
- Electrical connection
- Cable 2 x 0.75 mm² length: 300 mm
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium
- Height
- External: 85 mm
- Width
- External: 25 mm
- Depth
- External : 57 mm
- Condition of use
- Electrical protection is needed; Air sealed enclosure; Heaters must be installed with a thermal controller
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 18
- Voltage type
- DC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 10 W
- Continuous heating power at 10 °C
- 10 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480152108
- SAP 1000089005
- Code 8881531
Product Documentation
More from Schneider Electric
Schneider Electric
Man.meld. APP-20A/ECF dekkcover
FFS06723702
Schneider Electric

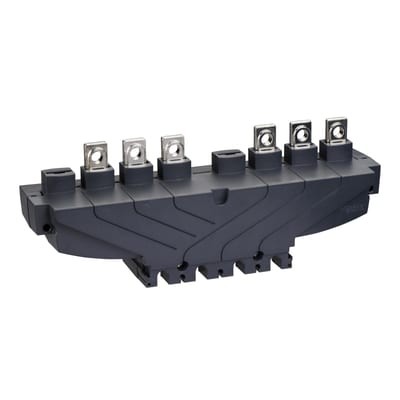

Schneider Electric source change-over accessories - 3 poles - 100...250 A LV429358
Schneider Electric

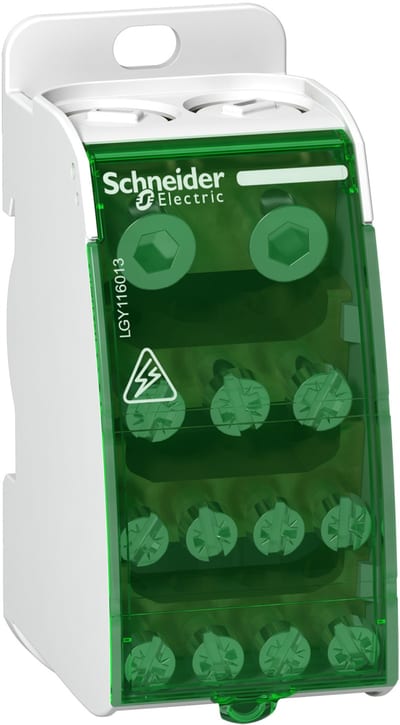

Schneider Electric Linergy DS - screw distribution block 1P - 160A - 13 holes LGY116013
Schneider Electric

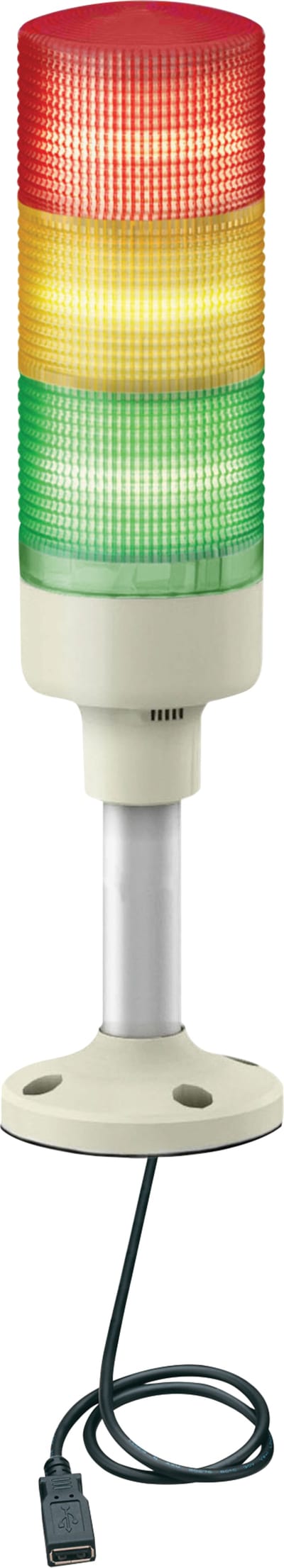

Schneider Electric XVGU3SHAV Harmony USB Tower Light, Ø60, 3 LEDs + Buzzer
Schneider Electric

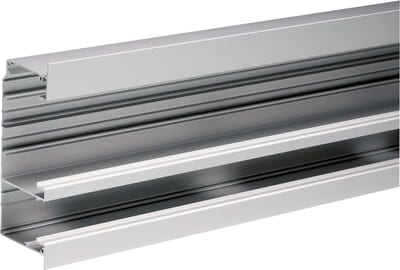

Wall Trunking INKA 161X72MM 2,5M ALUMINIUM ANOD HF
5512410
Schneider Electric

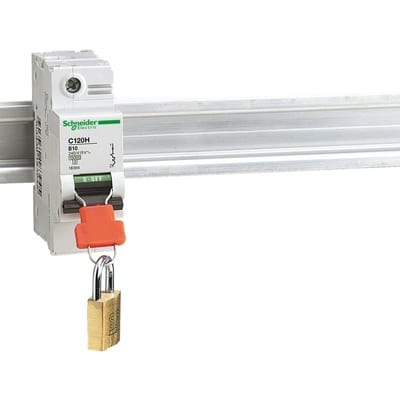

Schneider Electric 27145 Acti9 KL2 Padlocking Device for NC100, Set of 4
Schneider Electric

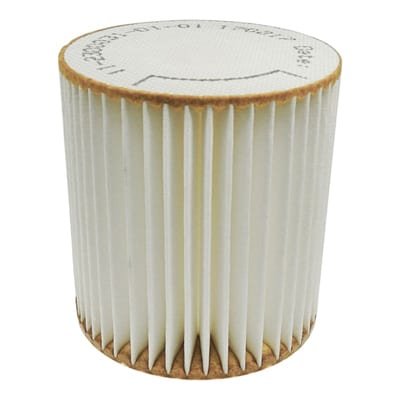

RFC 911 ASD aspirasjonsfilter, 1. pcs
FFS06432678
Schneider Electric

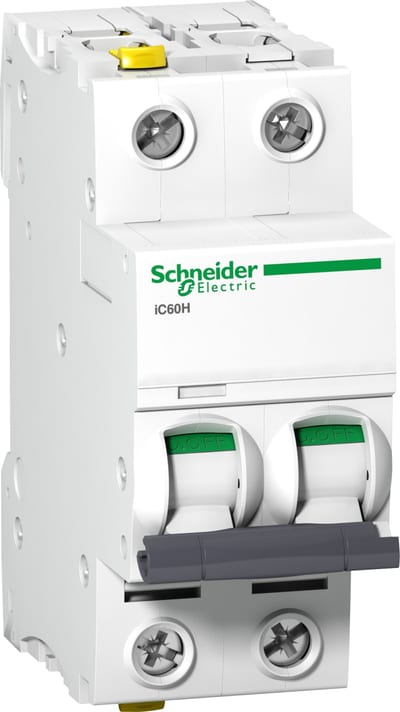

Schneider Electric A9F06240 ACTI9 IC60H Miniature Circuit Breaker 2P 40 A, Curve B
