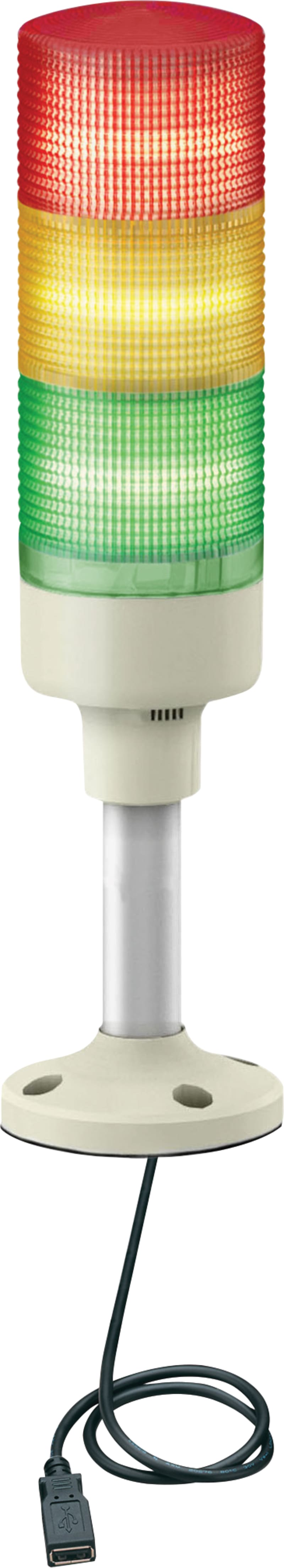

Schneider Electric XVGU3SHAV Harmony USB Tower Light, Ø60, 3 LEDs + Buzzer
Pricing
Request a quote
We reply within 24 hours
Product Description
Ø60 mm monolithic signal tower with three multi-colour LED indicator segments (steady or flashing) and an integrated 85 dB two-tone buzzer. The unit is powered and programmed over USB (Type A) at 5 V DC, so appearance, sequence and audio are configured without additional wiring. Tube-mounted with fixing plate; rated IP54 for indoor machine and process signalling.
Technical Specifications
- Manufacturer part number (MPN)
- XVGU3SHAV
- EAN / GTIN
- 3606480530937
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Diameter
- 60 mm
- Range of product
- Harmony XVGU
- Product or component type
- USB configurable monolithic tower light
- Beacon or indicator bank unit type
- 3 illuminated units
- Sound signalling
- Buzzer
- Mounting diameter
- 60 mm
- Component name
- XVGU
- Light source
- LED steady or flashing multi-colour
- Indicator bank base type
- Base with integrated buzzer
- Noise level
- 85 dB (2 tone buzzer) at 1 m
- Material
- PC: globe
- Device mounting
- Tube mounting with fixing plate
- Light block color
- Clear/clear/clear
- [Us] rated supply voltage
- 5 V DC
- Connector type
- USB type A female
- Current consumption
- 400 mA
- Sound frequency
- 3800 Hz; 2700 Hz
- Power consumption in W
- 2 W
- Flashing frequency
- 2 Hz with flashing LED unit; 1 Hz with flashing LED unit
- Product compatibility
- Vijeo Designer 4.6 indoor use only; HMIGTO; XBTGT....; XBTGK....; XBTGC1.; XBTGC2.; XBTGH
- Product weight
- 0.3 kg
- Standards
- IEC 61000-6-2; IEC 61000-6-4
- Product certifications
- GOST; CE; UL 508; cUL; RCM
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- 0…55 °C
- Electrical shock protection class
- Class I
- IP degree of protection
- IP54
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- ID
- Warranty (in months)
- 18
- Outer diameter
- 60 mm
- Loudness
- 85 dB
- Function flashing light
- No
- Function acoustic
- Yes
- Function continuous light
- Yes
- Voltage type (operating voltage)
- DC
- Degree of protection (IP)
- IP42
- Function revolving light
- Yes
- Operating voltage DC
- 5 V
- Voltage type for actuating
- DC
- Number of signal tower elements
- 3
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480530937
- SAP 1000347648
- Code 81288289
