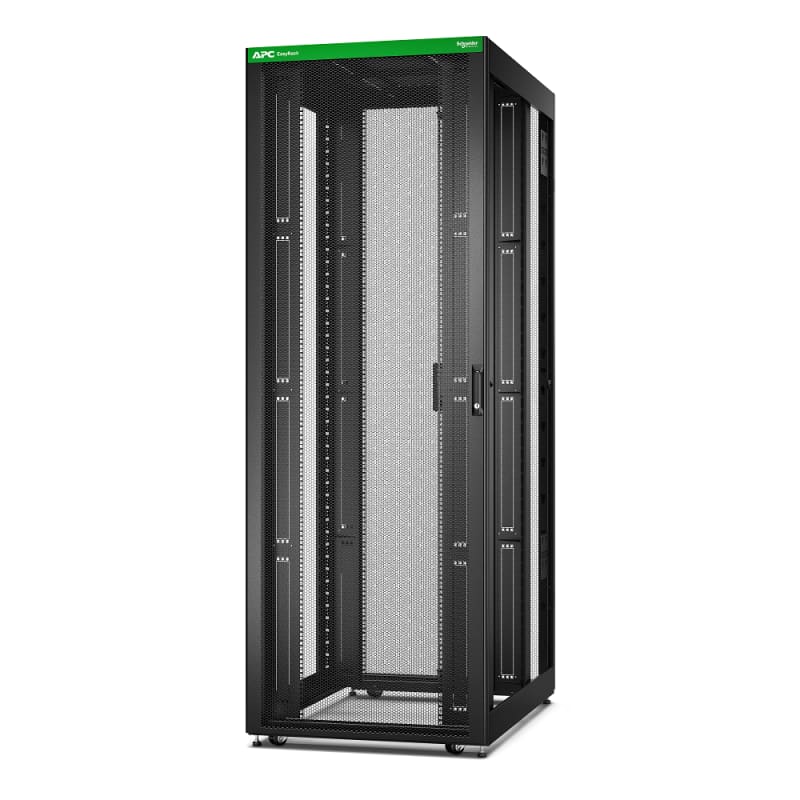

Schneider Electric APC Easy Rack, 48U, Black, with Roof, Castors, Feet, 4 Brackets, and Bottom, No Side Panels, 2258H x 800W x 1200D mm ER8820
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ER8820 Easy Rack 48U B:800mm D:1200mm H:2258mm with wheel,feet, lock, 4 brackets and without side panel and bottom. Black.
Technical Specifications
- Manufacturer part number (MPN)
- ER8820 EAN / GTIN: 0731304433316 Sales unit: pcs Dimensions: 800×1200×2258 Rack units: 48 U Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Doors; Leveling feet; Mounting hardware; Pre-installed casters Height: 2258 mm Width: 800 mm Depth: 1200 mm Product weight: 114 kg Colour: Black mounting mode: Not rack-mountable Maximum mounting depth: 1041.4 mm minimum mounting depth: 241.6 mm Rack width: 19" Marking: 18 gauge front door; 19 gauge rear door; 16 gauge post; 14 gauge EIA mounting rail Permanent permissible load: 1199.8 kg static; 599.6 kg dynamic Standards: UL 2416; UL 60950-1; EIA-310E Number of Units in Package 1: 1 Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: Passive Number of height units: 48 Max. load capacity: 1200 kg With roof plate: Yes With earthing: Yes With front door: Yes With sidewall: No Demountable: No material: Steel Surface finishing: Powder coating RAL-number: 9005 Degree of protection (IP): IP20
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304433316
- SAP 1200566367
- Code 82961738
Product Documentation
More from Schneider Electric
Schneider Electric

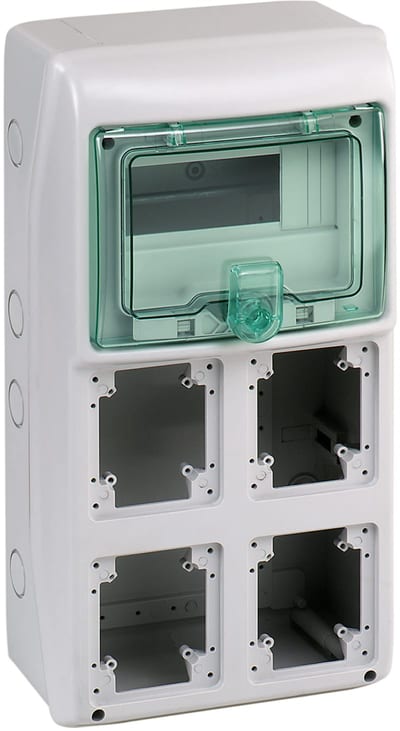

KAEDRA 8MOD, 4 openings 90X100
13179
Schneider Electric

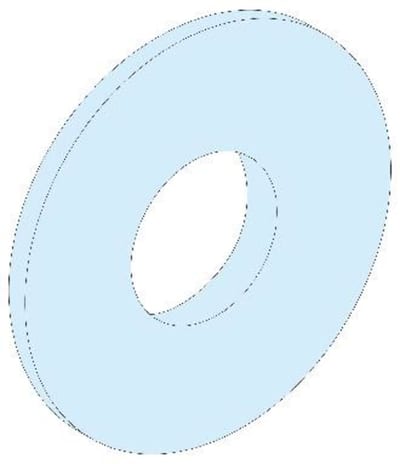

WASHERS-20 pcs-M8, 20mm external diameter
LVS04772
Schneider Electric

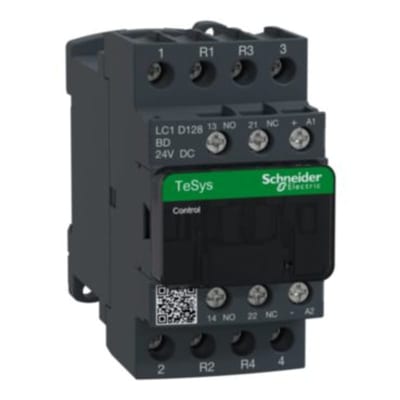

Schneider Electric TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 24 V DC coil LC1D128BD
Schneider Electric

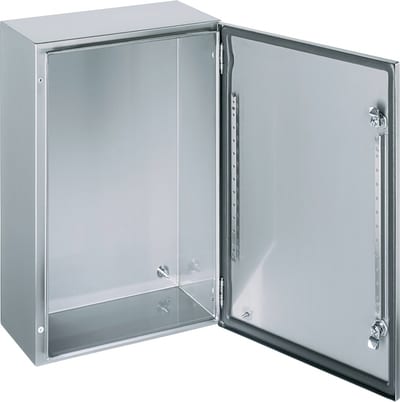

Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H1000XW800XD300 mm. NSYS3X10830H
Schneider Electric

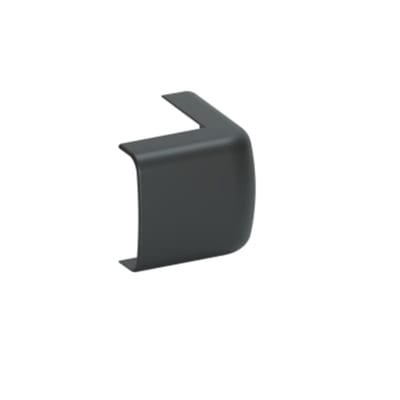

OL MINI 1230 External corner Black
ISM14262
Schneider Electric

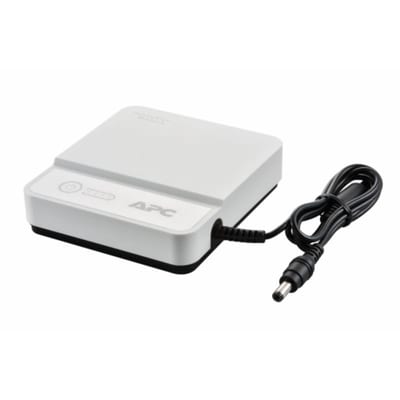

Schneider Electric APC Back-UPS Connect 12VDC 36W, lithium-ion, mini network ups to protect internet routers, IP cameras and more CP12036LI
Schneider Electric

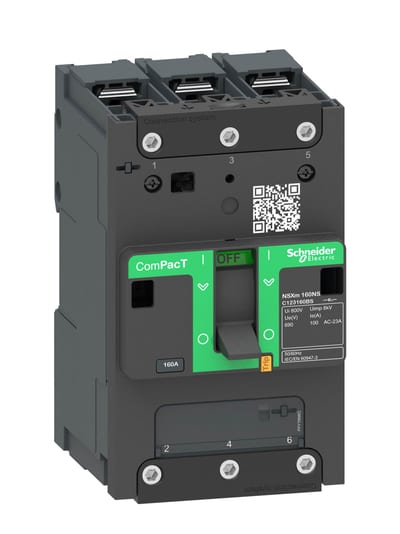

Schneider Electric Switch disconnector, ComPacT NSXm 160NA, 3 poles, thermal current Ith 160A, compression lugs and busbar connectors C123160BS
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX160F AC/DC, 18KA/240VAC, 1 pole, TMD trip unit 125A C16F1TM125
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ER8820?
- ER8820 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ER8820.
- What is the HS code for ER8820?
- The customs tariff (HS) code for ER8820 is 9403.20.
- Who manufactures ER8820?
- ER8820 is a Schneider Electric product in the Office & Onboard Equipment range.
- Is a datasheet available for ER8820?
- Yes — the ER8820 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ER8820?
- The minimum order quantity is 1.
- Is ER8820 available?
- Yes — ER8820 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
