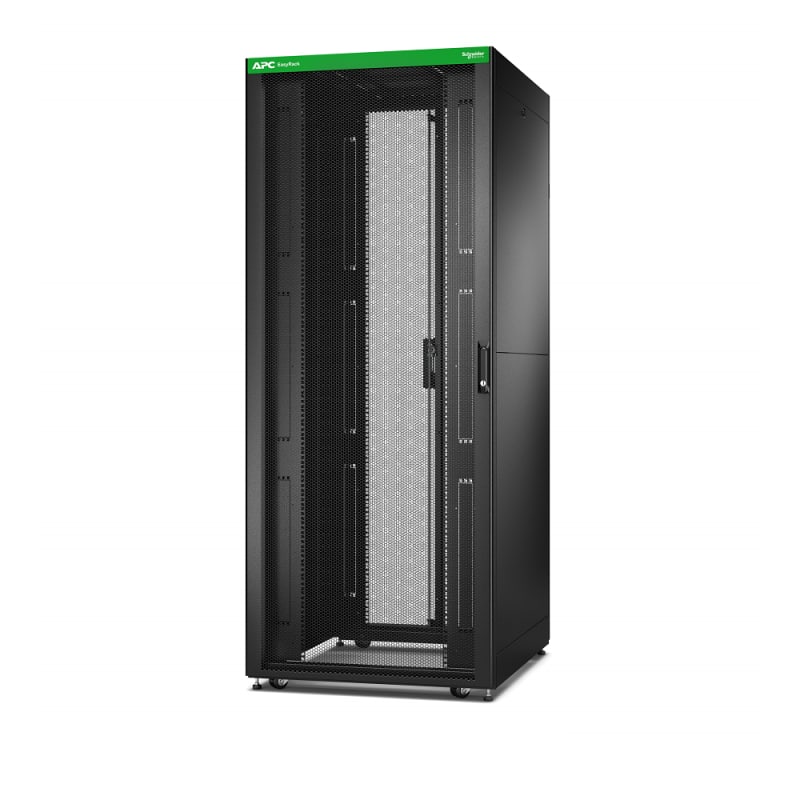

Schneider Electric APC Easy Rack, 42U, Black, with Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 1991H x 800W x 1000D mm ER8202
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ER8202 Easy Rack 42U B:800mm D:1000mm H:1991mm with wheel,feet, lock, 4 brackets and side panel,without bottom. Black.
Technical Specifications
- Manufacturer part number (MPN)
- ER8202 EAN / GTIN: 0731304427889 Sales unit: pcs Dimensions: 800×1000×1991 Rack units: 42 U Product or component type: Rack enclosure Number of rack unit: 42U Provided equipment: Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters Height: 1911 mm Width: 800 mm Depth: 1000 mm Product weight: 128.4 kg Colour: Black mounting mode: Not rack-mountable Maximum mounting depth: 838.2 mm minimum mounting depth: 241.6 mm Rack width: 19" Marking: 18 gauge front door; 19 gauge rear door; 16 gauge post; 11 gauge EIA mounting rail Permanent permissible load: 1199.8 kg static; 599.6 kg dynamic Standards: UL 2416; UL 60950-1; EIA-310E Number of Units in Package 1: 1 Pallet layers: 1 Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: Passive Number of height units: 42 Max. load capacity: 1200 kg With roof plate: Yes With earthing: Yes With front door: Yes With sidewall: Yes Demountable: No material: Steel Surface finishing: Powder coating RAL-number: 9005 Degree of protection (IP): IP20
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 0731304427889
- SAP 1200510173
- Code 82677528
Product Documentation
More from Schneider Electric
Schneider Electric

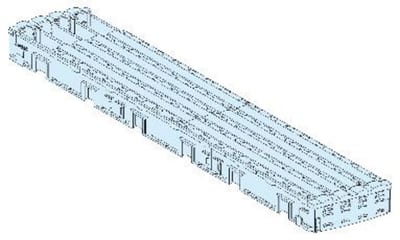

Busbar Linergy BW 125A 4P L450 G/P
LVS04104
Schneider Electric

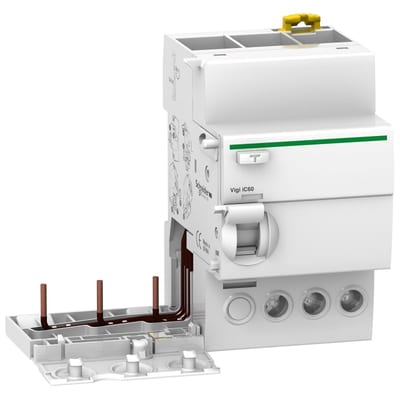

Schneider Electric Vigi IC60 - earth leakage add-on block - 3P - 25A - 100MA - A type A9V22325
Schneider Electric

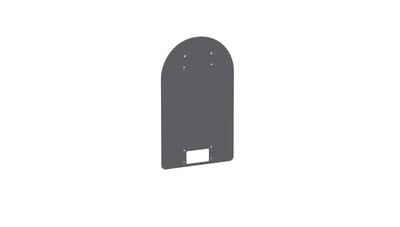

Oppgraderingskit Pro AC Pole
EVA1PCS2
Schneider Electric

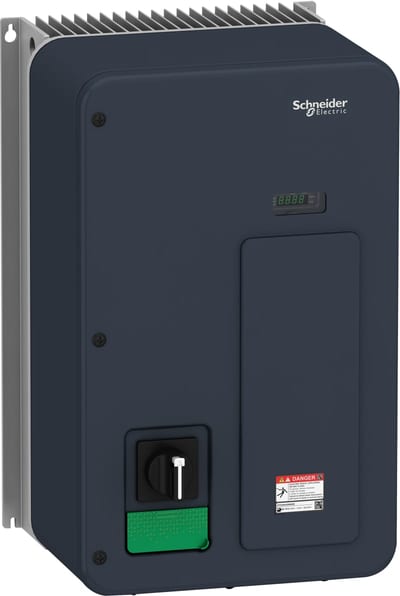

Schneider Electric variable speed drive, Altivar Machine ATV320, 0.37kW, 200 to 240V, 1 phase, enclosed, IP65 ATV320U04M2WS
Schneider Electric

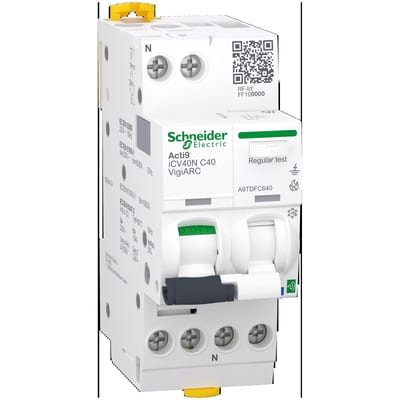

Schneider Electric Active arc fault detection RCBO, ACTI9 Active ICV40N ARC, 1P+N, 40A, C curve, 30MA, type A-SI, 6000A A9TDFC640
Schneider Electric

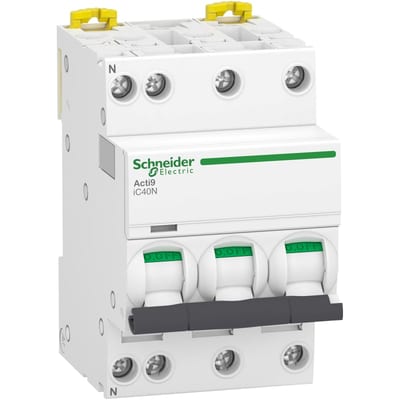

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 40A, C curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P54740
