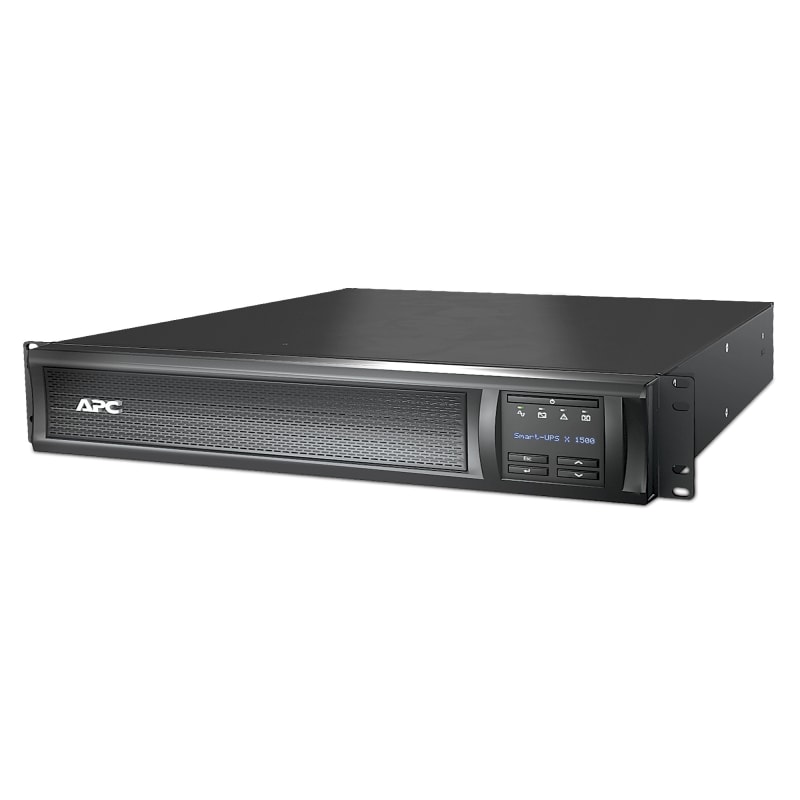

Schneider Electric APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8X C13 IEC, Network card, Extended runtime SMX1500RMI2UNC

Schneider Electric SMX1500RMI2UNC UPS Line Interactive.

Manufacturer part number (MPN)

SMX1500RMI2UNC

EAN / GTIN

0731304281702

Sales unit

pcs

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

230 V AC 1 phase

Input connection

IEC 60320 C14

Switching current capacity

10 A

Efficiency at full load

151...302 V adjustable; 160...286 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Rated power in W

1200 W

Rated power in VA

1500 VA

Output connection

8 IEC 60320 C13; 2 IEC Jumpers

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

1500 VA

Maximum configurable power in W

1200 W

UPS topology

Line interactive

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Replacement battery

APCRBC115

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid internal included

Control panel

Multifunction LCD status and control console

Emergency power off

Yes

Free slot

0

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

Serial port; USB port; Pre-installed network management card 3

Surge energy rating

645 J

Noise filtering

Full time multi-pole noise filtering : 5% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

2U

Cable length

1.8 m

Number of cables

1

Color

Black

Height

89 mm

Width

432 mm

Depth

490 mm

Product weight

24.82 kg

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Provided equipment

CD with software; Documentation CD; Installation guide; Rack mounting support rails; Removable support feet; Smart UPS signalling RS-232 cable; USB cable

Number of power modules

0

Number of power module filled slots

0

Number of power module free slots

0

Additional specification

Network card pre-installed

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; VDE; EAC; UK PSTI

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…45 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

40 dBA

Heat dissipation

133 Btu/h

Operating altitude

0...10000 ft

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

3 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

103 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

24.6 cm

Package 1 Width

58.9 cm

Package 1 Length

62 cm

Package 1 Weight

30 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

16

Package 2 Height

135 cm

Package 2 Width

100 cm

Package 2 Length

120 cm

Package 2 Weight

514.88 kg

Country of origin

PH

Warranty (in months)

24 Battery|36 UPS

HS Code

8504.40

• EAN 0731304281702
• SAP 1200723257
• Code 83845726
