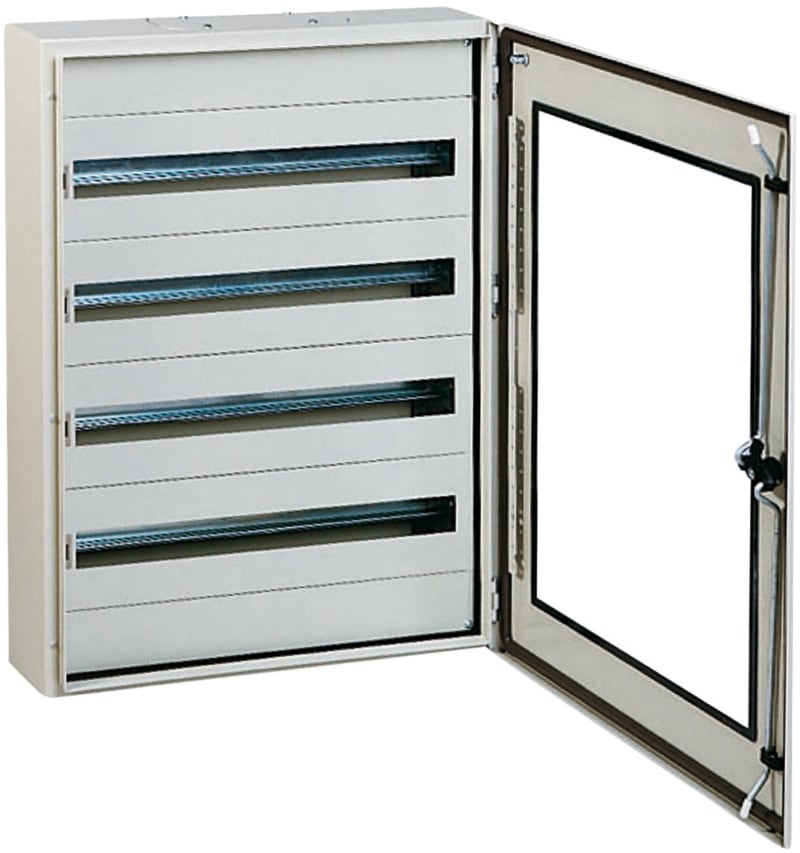

Schneider Electric PanelSet S3DM H1000XW600XD150.IP66 IK10 RAL7035. top and bottom NSYS3DM10615T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3DM10615T S3DM Module g door.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3DM10615T
- EAN / GTIN
- 3606480158582
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3DM
- Application
- Modular distribution application
- Category
- Compact enclosure
- Enclosure nominal height
- 1000 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Product destination
- For installation of modular chassis DLM
- Device composition
- 2 cable gland plate: top and bottom; 1 body; 1 door; 1 lock
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- DNV; cUL; BV; UL; GL
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.000 cm
- Package 1 Width
- 61.500 cm
- Package 1 Length
- 103.500 cm
- Package 1 Weight
- 23.800 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 8
- Package 2 Height
- 140.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 208.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 1000 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158582
- SAP 1000488826
- Code 8928951
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Bracket Kit, PDU, Horizontal to Vertical Mount AR8417
Schneider Electric
Schneider Electric undervoltage release (spring) MN - 440...480 V AC 60Hz LV426807
Schneider Electric
Schneider Electric PrismaSeT P stabiliser kit for framework
LVS08701
Schneider Electric
Push-Button Head Pressure/Pressure White
ZB4BH01
Schneider Electric
Schneider Electric Marked legend,Harmony XAC,legend, 30X40MM, white, right, slow ZB2BY4907
Schneider Electric
F2-HOR.-FRONT/rear display 2500A W800 D400
LVS04978
Schneider Electric

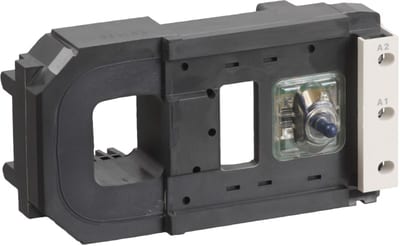

Schneider Electric TeSys F - contactor coil - LX1FK - 415...440V AC 40...400 Hz LX1FK415
Schneider Electric

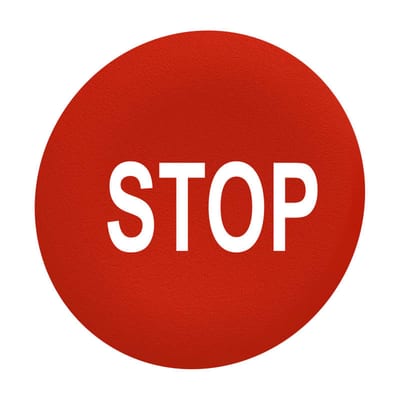

Push Button Cap flush red (ZBAF434)
