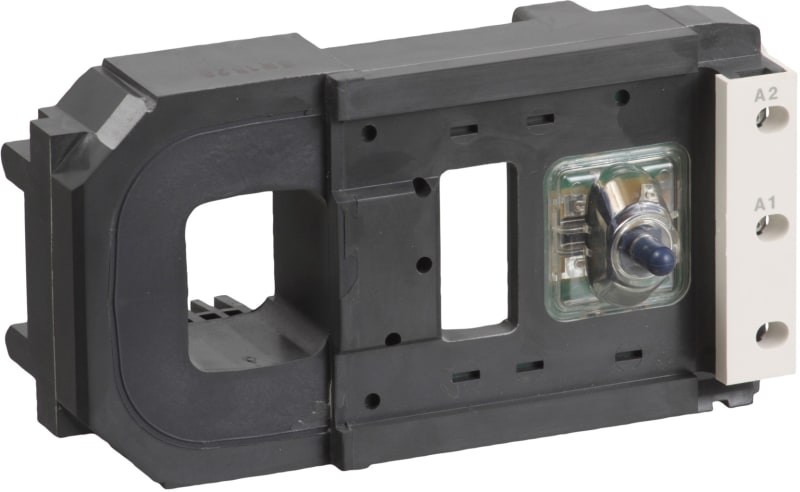

Schneider Electric TeSys F - contactor coil - LX1FK - 415...440V AC 40...400 Hz LX1FK415
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LX1FK415 coil 415V 50HZ LC1F500.
Technical Specifications
- Manufacturer part number (MPN)
- LX1FK415
- EAN / GTIN
- 3389110082289
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 415/480 V
- Frequency
- 50/60 Hz
- Range
- TeSys
- Product or component type
- Contactor coil
- Device short name
- LX1FK
- Range compatibility
- TeSys TeSys F LC1F contactor
- Product compatibility
- LC1F500
- Control circuit type
- AC at 40...400 Hz
- [Uc] control circuit voltage
- 415 V AC 40...400 Hz
- Inductance of closed circuit
- 18.4 H
- Average resistance
- 143 Ohm inrush at 20 °C; 3730 Ohm holding at 20 °C
- Operating time
- 100...170 ms opening; 40...75 ms closing
- Mechanical durability
- 10 Mcycles
- Maximum operating rate
- 2400 cyc/h 55 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C); Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C)
- Inrush power in VA
- 1100 VA 40...400 Hz cos phi 0.9 (at 20 °C)
- Hold-in power consumption in VA
- 18 VA 40...400 Hz cos phi 0.3 (at 20 °C)
- Heat dissipation
- 18 W at 40...400 Hz
- Ambient air temperature for operation
- -5…55 °C
- Product weight
- 1.15 kg
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 415–440 V
- Rated control supply voltage AC 60 Hz
- 415–440 V
- Voltage type for actuating
- AC
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3389110082289
- SAP 1000046550
- Code 8835982
Product Documentation
More from Schneider Electric
Schneider Electric
Push Button Cap flush red (ZBAF434)
Schneider Electric

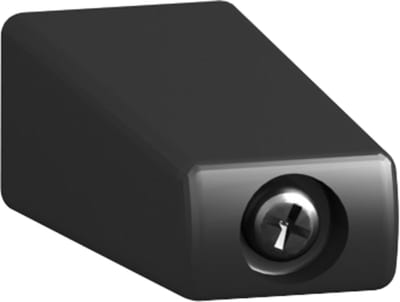

Schneider Electric toggle extension, ComPact NSX400/630, set of 5 spare parts LV432553
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63N, 50KA/415VAC, 3 poles, TMD trip unit 25A, EverLink lugs C11N3TM025L
Schneider Electric

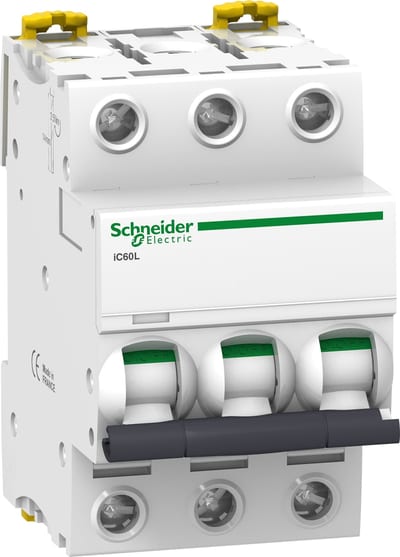

Schneider Electric A9F92303 ACTI9 IC60L Miniature Circuit Breaker 3P 3 A, Curve Z
