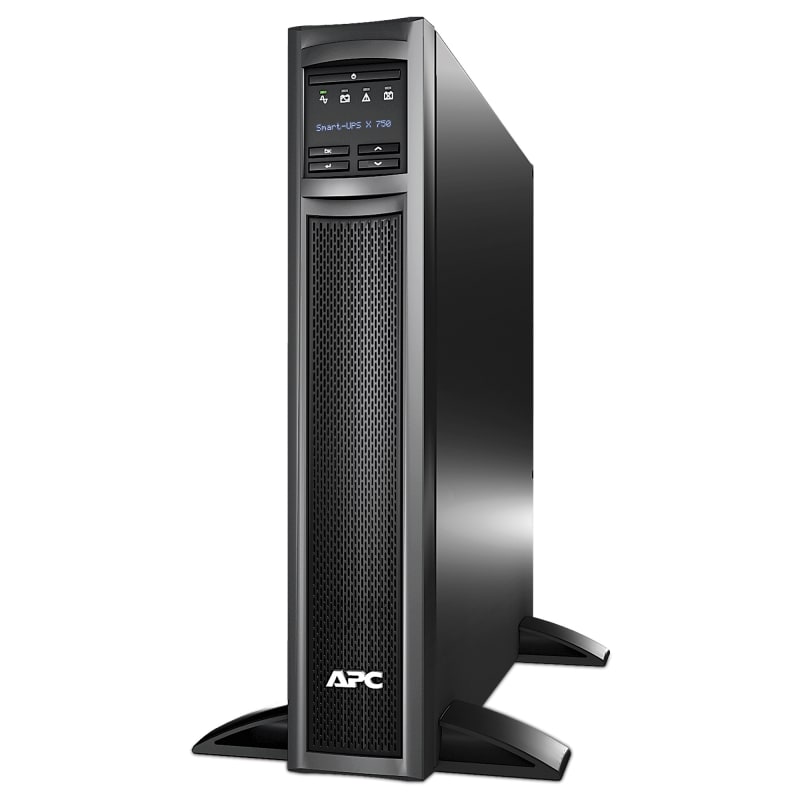

Schneider Electric APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 230V, 8X C13 IEC, SmartSlot, Extended runtime SMX750I
Part numberSMX750IEAN / GTIN0731304268581HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMX750I UPS Line Interactive.
Technical Specifications
- Manufacturer part number (MPN)
- SMX750I
- EAN / GTIN
- 0731304268581
- Sales unit
- pcs
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 230 V AC
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 C14
- Efficiency at full load
- 151...302 V adjustable; 160...286 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 600 W
- Rated power in VA
- 750 VA
- Output connection
- 8 IEC 60320 C13; 2 IEC Jumpers
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 750 VA
- Maximum configurable power in W
- 600 W
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC116
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 645 J
- Noise filtering
- Full time multi-pole noise filtering : 5% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 2U
- Cable length
- 1.8 m
- Number of cables
- 1
- Color
- Black
- Height
- 89 mm
- Width
- 432 mm
- Depth
- 490 mm
- Product weight
- 22.05 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted with kit
- Two post mountable
- 1
- USB compatible
- No
- Provided equipment
- CD with software; Documentation CD; Installation guide; Rack mounting brackets; Removable support feet; Smart UPS signalling RS-232 cable; User manual
- Number of power modules
- 0
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- Extended run
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; CSA; EAC; RCM; UK PSTI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 40 dBA
- Heat dissipation
- 69 Btu/h
- Operating altitude
- 0...10000 ft
- Extendable runtime
- 0
- Included battery module
- 1
- Empty battery slot
- 1
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Overcurrent protection
- 60 A
- Battery life
- 3…5 year(s)
- Battery charging power
- 104 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 25.000 cm
- Package 1 Width
- 59.000 cm
- Package 1 Length
- 62.000 cm
- Package 1 Weight
- 26.444 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 4
- Package 2 Height
- 90.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 117.776 kg
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
