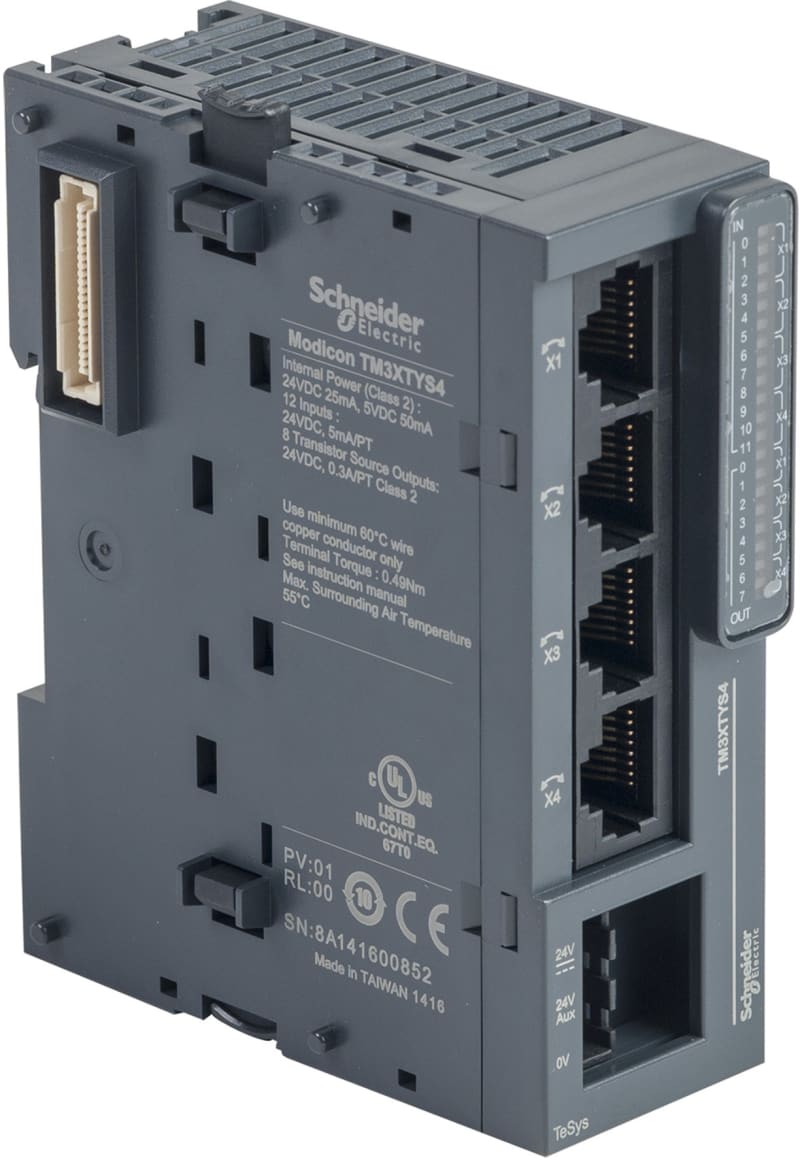

Schneider Electric Modicon TM3 - 4 Tesys motors interface TM3XTYS4

Schneider Electric TM3XTYS4 Accessories Modicon PLS - IO extension - TeSys motor starter interface.

Manufacturer part number (MPN)

TM3XTYS4

EAN / GTIN

3606480611636

Sales unit

pcs

Package quantity

42 pcs

Range of product

Modicon TM3

Product or component type

Parallel interface module

Product specific application

TeSys U

[Us] rated supply voltage

24 V DC by external supply (- 15...20 %)

Number of input channels

12

Number of output channels

8

Range compatibility

Modicon M221; Modicon M251; Modicon M241; Modicon M262

Current consumption

5 mA at 5 V DC via bus connector at state on; 35 mA at 5 V DC via bus connector at state off; 0 mA at 24 V DC via bus connector at state on; 10 mA at 24 V DC via bus connector at state off; 1200 mA at 24 V DC external power supply at state on

Input voltage limits

19.2...28.8 V per input

Input current limits

5 mA per input

Response time

< 10 ms turn-on for input; < 10 ms turn-off for input

Output voltage

24 V DC for transistor output

Maximum load current

800 mA per channel in starting mode during 100 ms; 300 mA per channel in normal mode

Insulation

Between the RJ45 connectors and internal logic at 500 V AC; Non-insulated between RJ45 connectors

Output protection type

Against overload, protection technology: current limiter

Reset

Automatic reset

Local signalling

3 LEDs green for input status per channel; 2 LEDs green for output status per channel

Electrical connection

3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply; 4 RJ45 connectors for connecting the motor starters

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Depth

85 mm

Width

30 mm

Product weight

0.115 kg

DC supply voltage

24 V

Product certifications

CE; cULus; UKCA; RCM; EAC

Marking

CE

Resistance to electrostatic discharge

8 kV in air conforming to EN/IEC 61000-4-2; 4 kV on contact conforming to EN/IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

Resistance to fast transients

1 kV for input conforming to EN/IEC 61000-4-4; 1 kV for output conforming to EN/IEC 61000-4-4

Surge withstand

1 kV input common mode conforming to EN/IEC 61000-4-5; 1 kV output common mode conforming to EN/IEC 61000-4-5

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6; 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011

Ambient air temperature for operation

-10…35 °C vertical installation; -10…55 °C horizontal installation

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 5…8.4 Hz on DIN rail; 3 gn at 8.4…150 Hz on DIN rail; 3.5 mm at 5…8.4 Hz on panel; 3 gn at 8.4…150 Hz on panel

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

42

Number of Units in Package 3

504

Country of origin

TW

Warranty (in months)

18

Redundancy

No

Suitable for counting

No

Suitable for weighing

No

Suitable for temperature control

No

Suitable for welding control

No

Suitable for pressure control

No

Suitable for NC

No

Suitable for electronic positioning

No

Suitable for CNC

No

Suitable for SSI

No

Suitable for incremental data detection

No

Suitable for detection absolute value

No

Suitable for flux controller

No

Suitable for flux measurement

No

Suitable for path controller

No

Suitable for cam controller

No

Suitable for multi-axis control

No

Suitable for single-axis controller

No

Suitable for multi-axis positioning

No

Suitable for single-axis positioning

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
