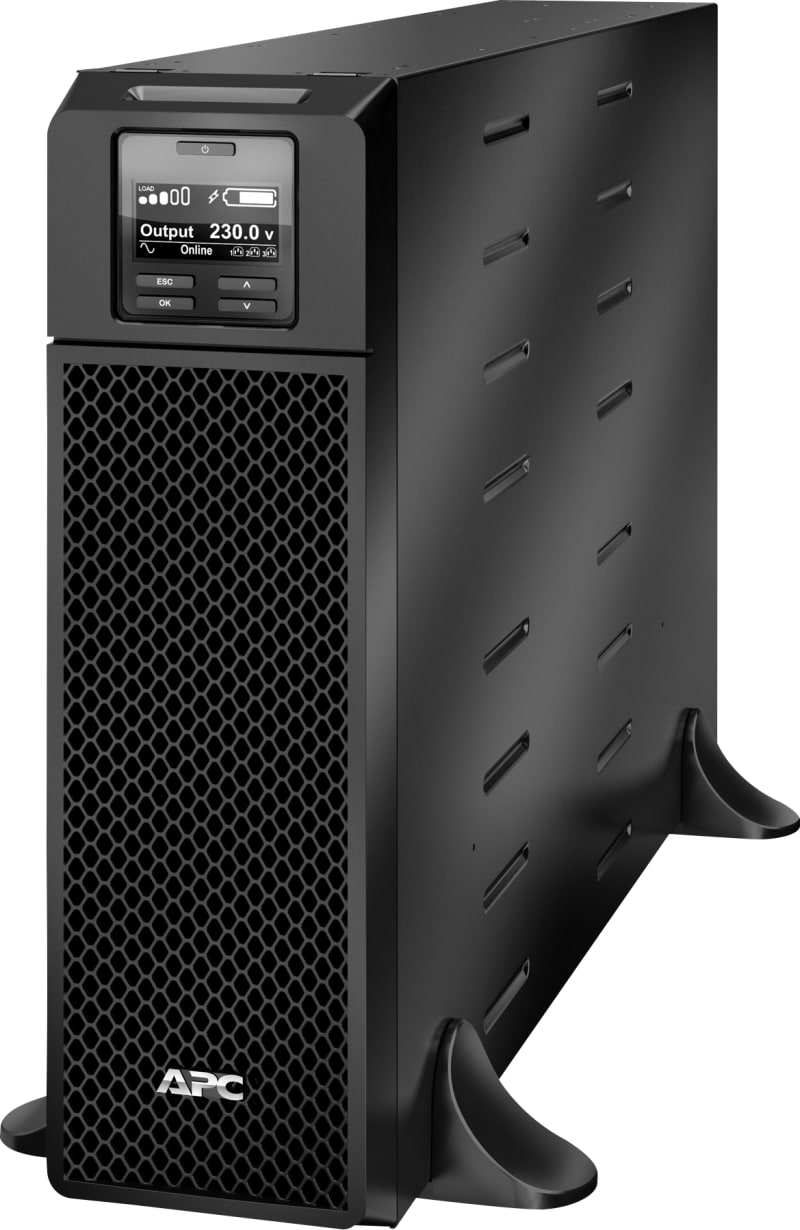

Schneider Electric APC Smart-UPS On-Line, 5KVA, Tower, 230V, 6X C13+4X C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit SRT5KXLI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT5KXLI APC -UPS SRT 5kVA, Tower, 230V, in: 1P+N+J, out: 6x C13 4x C19, nettverkskort, expandable.
Technical Specifications
- Manufacturer part number (MPN)
- SRT5KXLI
- EAN / GTIN
- 0731304301615
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 100...275 V adjustable (half load)
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 4500 W
- Rated power in VA
- 5000 VA
- Output connection
- 6 IEC 60320 C13; 2 IEC Jumpers; 4 IEC 60320 C19
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 5000 VA
- Maximum configurable power in W
- 4500 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC140
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port; Pre-installed network management card 3
- Surge energy rating
- 480 J
- Color
- Black
- Height
- 432 mm
- Width
- 130 mm
- Depth
- 719.4 mm
- Product weight
- 54.43 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted with kit
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- CD with software; Communication cable; Documentation CD; Installation guide; Removable support feet; Temperature probe; USB cable; Warranty card; Web/SNMP management card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; IRAM; RCM; VDE
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 931 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 192 V
- Extendable runtime
- 1
- Included battery module
- 2
- Empty battery slot
- 0
- Typical recharge time
- 1.5 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 560 W rated
- Number of Units in Package 1
- 1
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304301615
- SAP 1000653531
- Code 8216001
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX160M AC/DC, 25KA/415VAC, 2 poles, TMD trip unit 160A C16M2TM160
Schneider Electric

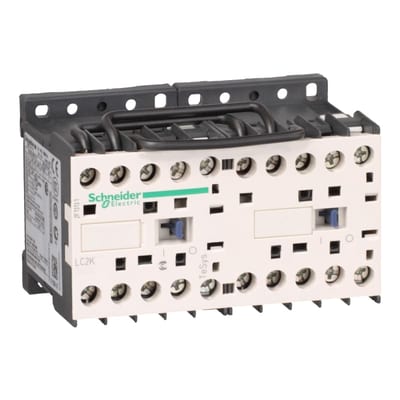

Schneider Electric reversing Contactor, TeSys K, 3P, AC-3/AC-3E,<=440V 9A, 1NO, 220...230VAC coil LC2K0910M7
Schneider Electric

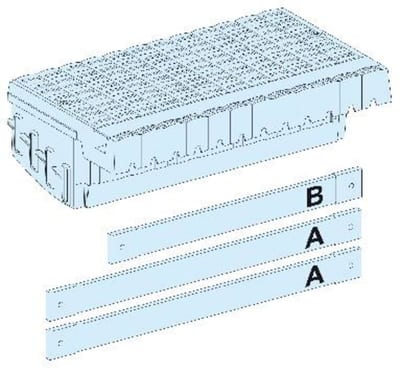

Linergy FC(Polypact) with connection.-pl.in 3P P
LVS04405
Schneider Electric

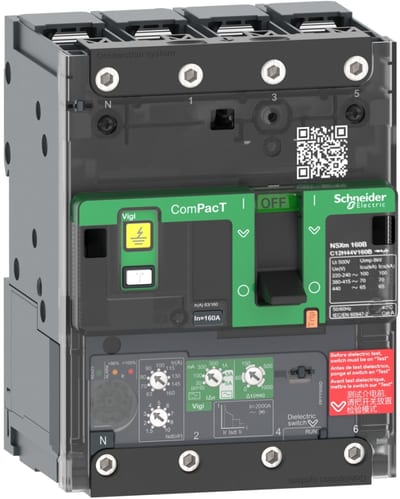

Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 4 poles, MicroLogic 4.1 trip unit 160A, lugs/busbars C12N44V160B
Schneider Electric

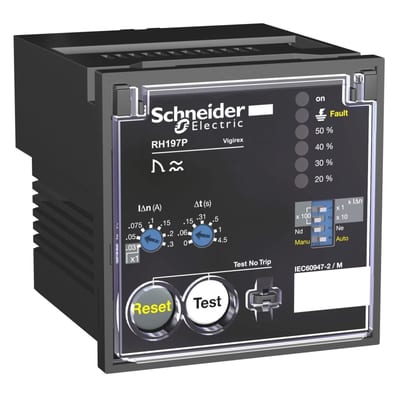

Jf.relay RH197P 380 for 415VAC
56508
Schneider Electric

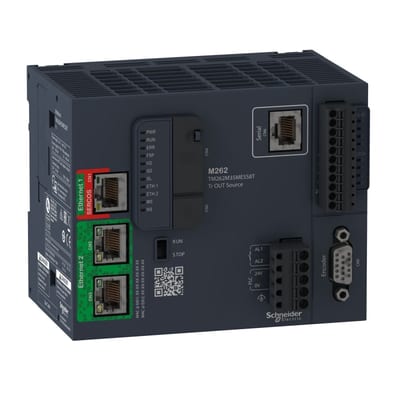

Schneider Electric Motion controller, Modicon M262, 3NS/instruction, 24 axes, Ethernet, Sercos TM262M35MESS8T
Schneider Electric

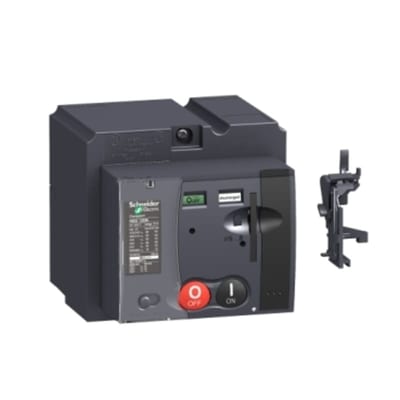

Schneider Electric standard motor mechanism module MT100/160, ComPact NSX100/160, 380/415 VAC 50/60 Hz, 440/480 VAC 60 Hz LV429435
Schneider Electric

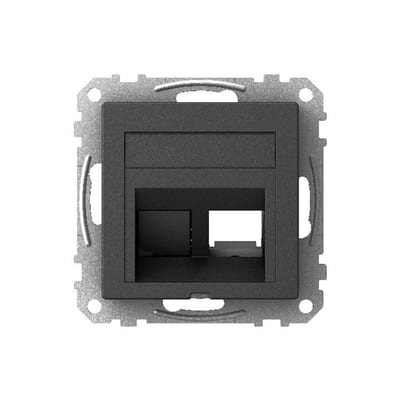

Exxact S-plate Lexcom angled, anthracite
