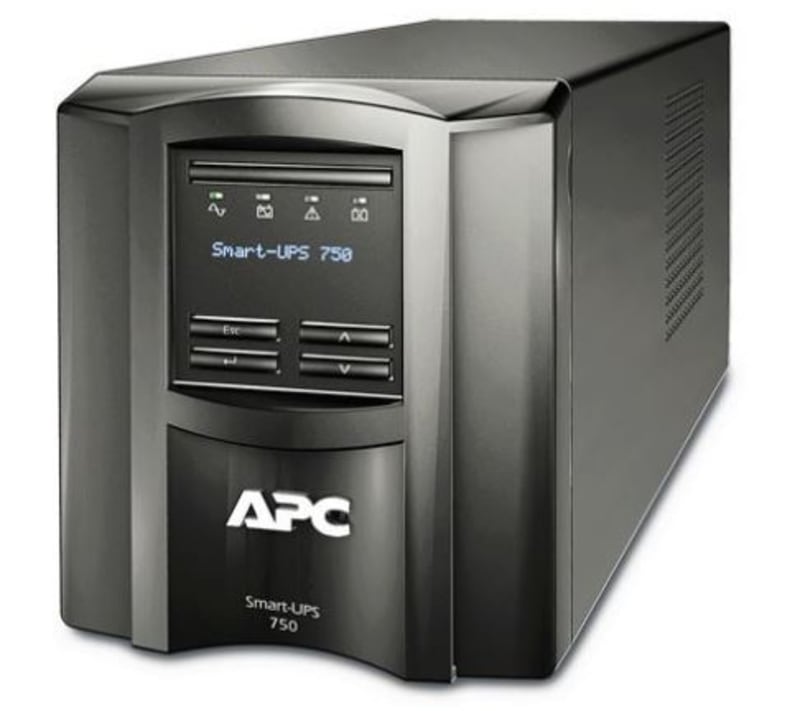

Schneider Electric APC Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6X IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD SMT750IC

Schneider Electric SMT750IC APC -UPS SMT 750VA, Tower, 230V, out: 6x C13, SmartConnect Port.

Manufacturer part number (MPN)

SMT750IC

EAN / GTIN

0731304340317

Sales unit

pcs

Package quantity

6 pcs

Voltage

230 V

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

230 V AC 1 phase

Other input voltage

220 V; 240 V

Input connection

IEC 320 C14

Efficiency at full load

151...302 V adjustable; 160...280 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Other output voltage

220 V; 240 V

Rated power in W

500 W

Rated power in VA

750 VA

Output connection

6 IEC 320 C13; 2 IEC Jumpers

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

750 VA

Maximum configurable power in W

500 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Line interactive

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Replacement battery

RBC48

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery capacity

7.0 Ah

Battery type

Lead-acid internal included

Control panel

Multifunction LCD status and control console

Emergency power off

Optional

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

UPS connectivity

Serial port; USB port; SmartConnect port; Available expansion slot

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Surge energy rating

540 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Cable length

1.8 m

Number of cables

1

Color

Black

Height

161 mm

Width

138 mm

Depth

369 mm

Product weight

11.8 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

Yes

Provided equipment

USB cable

Number of power modules

0

Number of power module filled slots

0

Number of power module free slots

0

Additional specification

Cloud-enabled monitoring

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM; VDE; UK PSTI

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

40 dBA

Heat dissipation

90 Btu/h

Operating altitude

0...10000 ft

Battery voltage

24 V

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

3 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

49 W rated

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

PH

Warranty (in months)

36 UPS|24 Battery

HS Code

8504.40

• EAN 0731304340317
• SAP 1200189097
• Code 82188329
