Schneider Electric

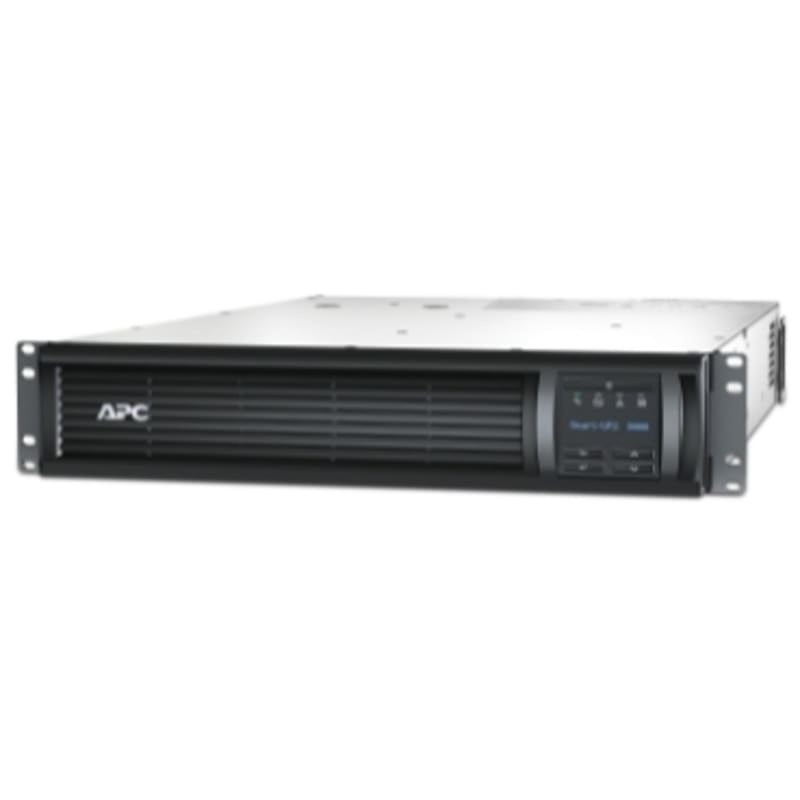

Schneider Electric APC Smart-UPS, Line Interactive, 3KVA, Rackmount 2U, 230V, 8X IEC C13+1X IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD SMT3000RMI2UC
Part numberSMT3000RMI2UCEAN / GTIN0731304337348HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMT3000RMI2UC APC -UPS SMT 3kVA, Rack 2U, 230V, out: 8x C13 1x C19, SmartConnect Port.
Technical Specifications
- Manufacturer part number (MPN)
- SMT3000RMI2UC
- EAN / GTIN
- 0731304337348
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- BS 1363 British; IEC 60320 C20; CEE 7/7
- Efficiency at full load
- 151...302 V adjustable; 160...286 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 2700 W
- Rated power in VA
- 3000 VA
- Output connection
- 8 IEC 60320 C13; 3 IEC Jumpers; 1 IEC 60320 C19
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2700 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- RBC43
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- UPS connectivity
- Serial port; USB port; SmartConnect port; Available expansion slot
- Communication port support
- SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
- Software package
- SmartConnect software for remote power monitoring feature availability varies by terms of use
- Surge energy rating
- 320 J
- Number of rack unit
- 2U
- Cable length
- 2.00 m
- Number of cables
- 1
- Height
- 86 mm
- Width
- 432 mm
- Depth
- 683 mm
- Product weight
- 44.28 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- No
- Provided equipment
- Documentation CD; Rack mounting hardware; Rack mounting support rails; USB cable
- Number of power modules
- 0
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- Cloud-enabled monitoring
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; IRAM; RCM; VDE; UK PSTI
- Marking
- GS Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 55 dBA
- Heat dissipation
- 348 Btu/h
- Operating altitude
- 0...10000 ft
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 182 W rated
- Number of Units in Package 1
- 1
- Country of origin
- VN
- Warranty (in months)
- 24 Battery|36 UPS
