Obliquestillt Panel-Instrum. PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

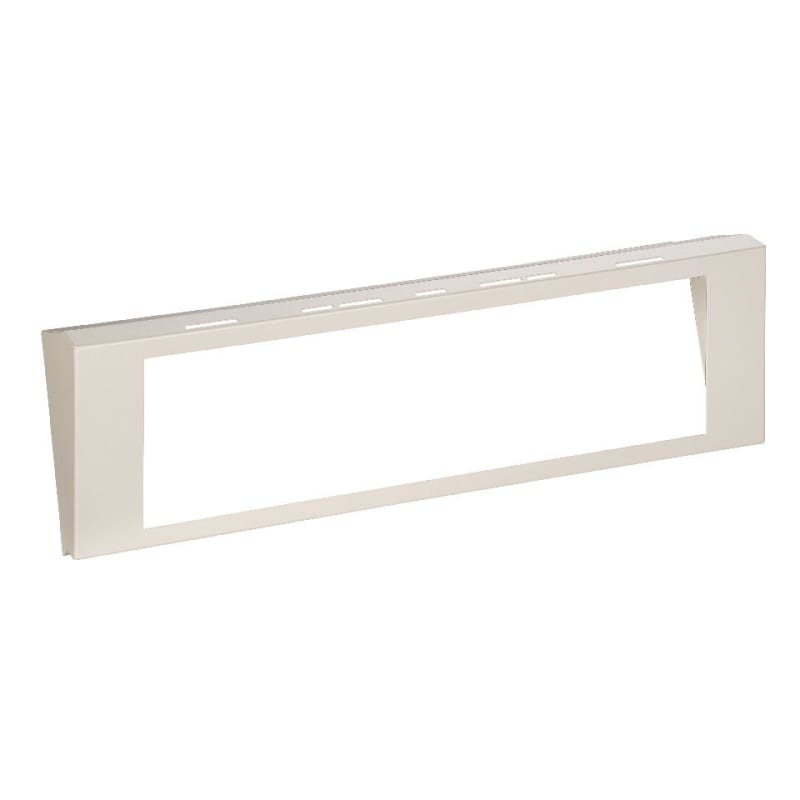

Schneider Electric LVS03928 Obliquestillt- 30°-Panel-for Instrumenter 72x72 or 96x96-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03928
- EAN / GTIN
- 3606481874122
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Vigirex: RH10; Vigirex: RH21; Vigirex: RH99; Human-switchboard interface: 72 x 72 mm device; Human-switchboard interface: 96 x 96 mm device; Human-switchboard interface: HSI; PowerLogic: PM400...800; Enerlin'X: FDM121
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 600 mm
- Height
- 150 mm
- Product weight
- 0.96 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 72 x 72 mm device 5 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 72 x 72 mm device 5 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 72 x 72 mm device 5 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 96 x 96 mm device 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 4 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 5 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 5 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 5 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 4 3; 600 mm PrismaSeT G floor-standing enclosure PowerLogic 4 3; 600 mm PrismaSeT G wall-mounted enclosure PowerLogic 4 3; 650 mm 400 mm PrismaSeT P cubicle PowerLogic 4 3; 600 mm PrismaSeT G floor-standing enclosure Vigirex 5 3; 600 mm PrismaSeT G wall-mounted enclosure Vigirex 5 3; 650 mm 400 mm PrismaSeT P cubicle Vigirex 5 3; 600 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 4 3; 600 mm 19 G wall-mounted enclosure Enerlin'X FDM121 4 3; 650 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 4 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 48
- Warranty (in months)
- 18
- Number of height units
- 3
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481874122
- SAP 1200546776
- Code 82879643
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Linergy TR 3-Level Spring Terminal Block 2.5 mm² Grey, 6-pos
NSYTRR26T
Schneider Electric
Schneider Electric variable speed drive, ATV930, 22kW, 200/240V, with braking unit, IP21 ATV930D22M3
Schneider Electric
OL Utj-piece 1835 HF PC/ABS Pure white
ISM14405P
Schneider Electric
Schneider Electric soft STARTER-ATS22-CTRL110V-POWER208V(125hp)/230V(150hp)/460V(300hp)/575V(350hp) ATS22C41S6U
Schneider Electric
PCB Socket (ZBZ010)
Schneider Electric
Schneider Electric transfer switch, TransferPacT automatic, 40A, 400V, 3P, rotary, frame 100A TA10D3S0404TPE
Schneider Electric
Schneider Electric Receiver, Harmony pocket remote, 11 relays outputs, pre-wired 1.5 m cable, 12...24 V DC ZARB11WSP
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 63A, A type, 500MA, double terminal A9Z26463
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS03928?
- LVS03928 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS03928.
- What is the HS code for LVS03928?
- The customs tariff (HS) code for LVS03928 is 8538.90.
- Who manufactures LVS03928?
- LVS03928 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS03928?
- Yes — the LVS03928 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS03928?
- The minimum order quantity is 1.
- Is LVS03928 available?
- Yes — LVS03928 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
