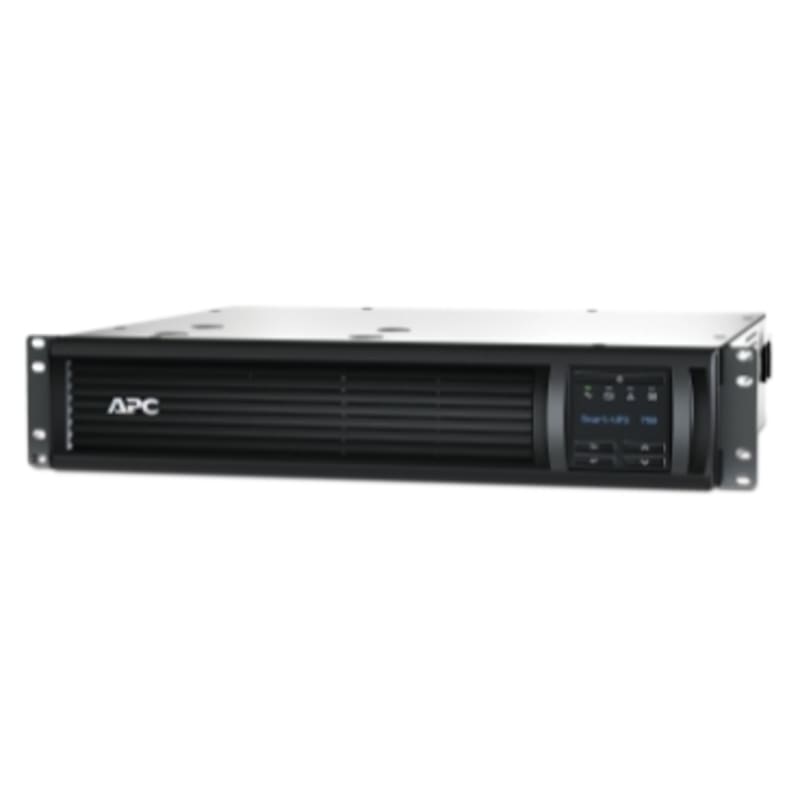

Schneider Electric APC Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4X IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD SMT750RMI2UC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SMT750RMI2UC APC -UPS SMT 750VA, Rack 2U, 230V, out: 4x C13, SmartConnect Port.
Technical Specifications
- Manufacturer part number (MPN)
- SMT750RMI2UC
- EAN / GTIN
- 0731304340324
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 320 C14
- Efficiency at full load
- 151...302 V adjustable; 160...286 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 500 W
- Rated power in VA
- 750 VA
- Output connection
- 4 IEC 320 C13; 2 IEC Jumpers
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 750 VA
- Maximum configurable power in W
- 500 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC123
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Optional
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- UPS connectivity
- Serial port; USB port; SmartConnect port; Available expansion slot
- Communication port support
- SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
- Software package
- SmartConnect software for remote power monitoring feature availability varies by terms of use
- Surge energy rating
- 459 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 2U
- Number of cables
- 1
- Color
- Black
- Height
- 86 mm
- Width
- 432 mm
- Depth
- 409 mm
- Product weight
- 16.6 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- Documentation CD; Installation guide; Rack mounting support rails; USB cable
- Number of power modules
- 0
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Smart-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM; TÜV; VDE; UK PSTI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 42 dBA
- Heat dissipation
- 46 Btu/h
- Operating altitude
- 0...10000 ft
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 4…6 year(s)
- Battery charging power
- 56 W rated
- Number of Units in Package 1
- 1
- Country of origin
- PH
- Warranty (in months)
- 36 UPS|24 Battery
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304340324
- SAP 1200189096
- Code 82188328
