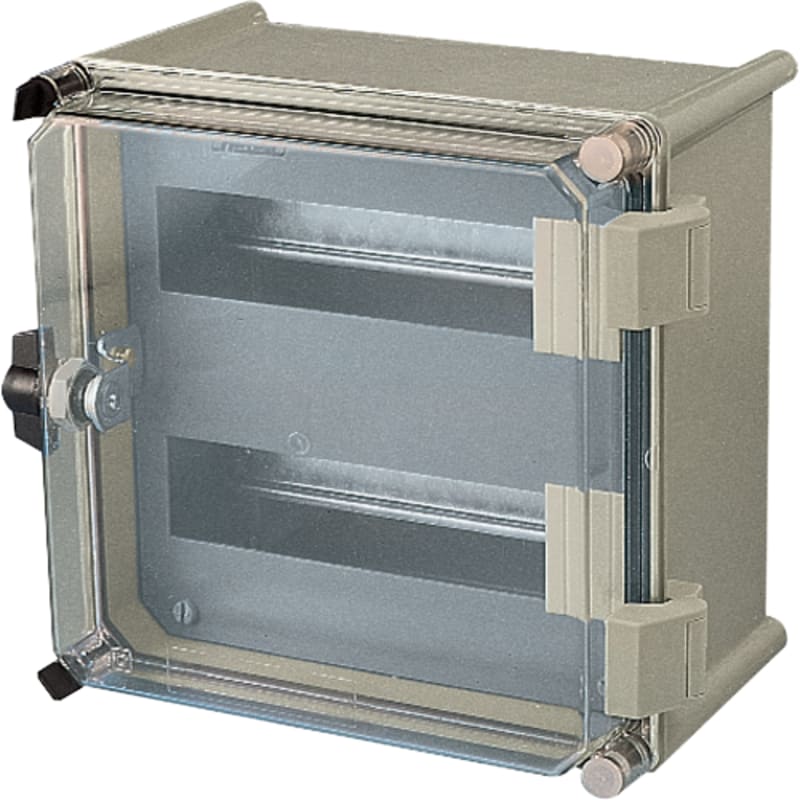

Mod insert 24M for 27X27PLS
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLS24 Mod insert 24m for 27x27PLS.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLS24
- EAN / GTIN
- 3606480188466
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Modular distribution application; Multi-purpose
- Product or component type
- Chassis
- Device short name
- DLS
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT PLS
- Device composition
- 1 chassis structure; 1 front panel; 2 35 mm DIN rail
- Material
- Front panel: self-extinguishing; Chassis structure and rails: galvanised steel
- Colour
- Front panel: grey (RAL 7032)
- Fixing mode
- By fixing element - on front with supports location
- Number of horizontal rows
- 2
- Total number of 18 mm modules
- 24
- Type of front plate
- Cut-out plate
- Number of cut-out
- 2 cut-outs
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.000 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 26.000 cm
- Package 1 Weight
- 666.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 120
- Package 2 Height
- 104.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 93.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 270 mm
- Height
- 270 mm
- Depth
- 180 mm
- Type of covering
- With notch
- Number of DIN-rails
- 2
- Number of modular spacings per DIN-rail
- 12
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480188466
- SAP 1000470100
- Code 8786158
Product Documentation
