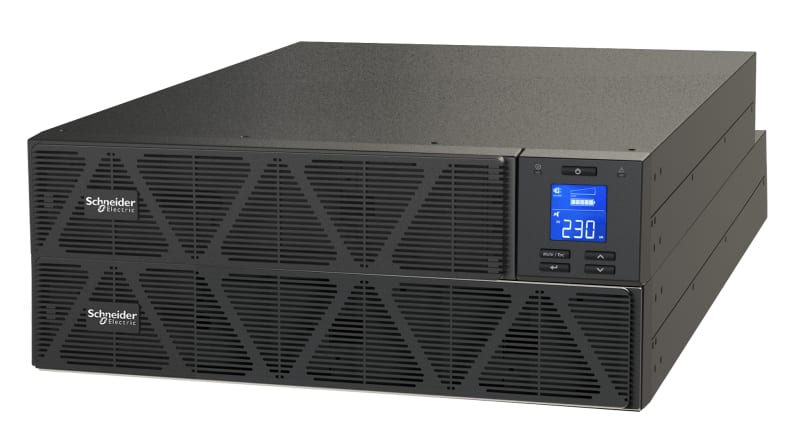

Schneider Electric Easy UPS 1 Ph On-Line, 6KVA/6KW, Rackmount 4U, 230V, 1X Hard wire 3-Wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/ rail kit SRVS6KRIRK

Schneider Electric Easy UPS SRVS RM 6000VA 230V with RailKit & external battery pack.

Manufacturer part number (MPN)

SRVS6KRIRK

EAN / GTIN

0731304346364

Sales unit

pcs

Presentation

For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Main input voltage

230 V AC 1 phase

Other input voltage

220 V; 240 V

Efficiency at full load

110...300 V half load; 176...300 V full load

Input connection

1 hard wire 3-wire (1P + N + E)

Input frequency

40...70 Hz auto sensing

Output voltage

230 V AC 1 phase

Other output voltage

220 V; 240 V

Rated power in W

6000 W

Rated power in VA

6000 VA

Output connection

Hard wire 3-wire (1P + N + E) for 1 zone(s)

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

1 %

Maximum configurable power in VA

6000 VA

Maximum configurable power in W

6000 W

UPS topology

On-Line

Waveform type

Its wave

Efficiency

94 % (full load)

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Run Time

View Runtime Graph

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Battery type

Lead-acid external included

Control panel

Multifunction LCD status and control console

Emergency power off

Yes

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

Serial port; USB port; Available expansion slot

Surge energy rating

600 J

Number of rack unit

4U

Color

Black (RAL 7010)

Height

173 mm

Width

438 mm

Depth

710 mm

Product weight

61 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

USB compatible

Yes

Mounting position

Horizontal

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Easy UPS 1Ph On-Line

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; UKCA

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…60 °C

Storage altitude

0…15000 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

55 dBA

Heat dissipation

1172 Btu/h

Operating altitude

0...3000 m

Battery voltage

192 V

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

4 h

Battery life

3…5 year(s)

Battery charging power

235 W rated

Battery power in VAh

1124 VAh runtime

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

48.500 cm

Package 1 Width

60.000 cm

Package 1 Length

83.600 cm

Package 1 Weight

71.000 kg

Country of origin

CN

Warranty (in months)

24

HS Code

8504.40
