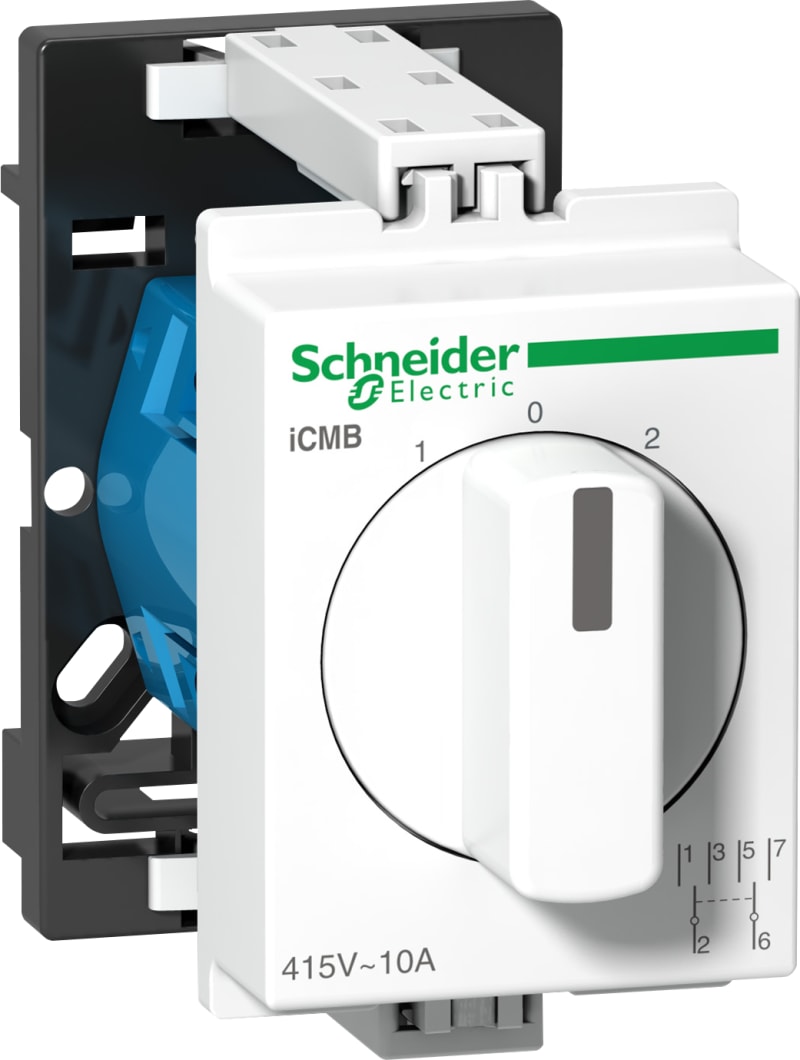

Schneider Electric 2 pole switch iCMB 10 A 10A 2P U 415V CA A9E15120

Schneider Electric A9E15120 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Selector switch iCMB 3-pos 2 changeover contacts.

Manufacturer part number (MPN)

A9E15120

EAN / GTIN

3606480376986

Sales unit

pcs

Package quantity

80 pcs

range of product

Acti9

Product name

Acti9 iCM

Product or component type

Selector switch

Device short name

iCMB

Device application

Electrical circuit control

Contacts type and composition

2 C/O

[Ue] rated operational voltage

415 V AC 50/60 Hz

Standards

VDE 0660 part 107; IEC 60947-3; EN 60947-3; UL

[Ie] rated operational current

10 A

Maximum operating voltage

440 V

Control type

Rotary handle 3 positions

Marking

1 - 0 - 2

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

4

Height

60 mm

Width

36 mm

Depth

75 mm

Product weight

58 g

Colour

White

Mechanical durability

1000000 cycles

Electrical durability

AC-21A: 200000 cycles

Connections - terminals

Jumper terminals1.5 mm²

Wire stripping length

9 mm for downside connection

Tightening torque

1 N.m downside

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-25…80 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.300 cm

Package 1 Width

7.600 cm

Package 1 Length

8.400 cm

Package 1 Weight

74.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

80

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.407 kg

Country of origin

AT

Warranty (in months)

18

Switching function

Control switch

Number of contacts as change-over contact

2

Number of poles

2

Rated current

10 A

Rated voltage

415 V

Min. rated voltage

415 V

Voltage type

AC

With signal lamp

No

Colour calotte

White

Width in number of modular spacings

2

Built-in depth

75 mm

Degree of protection (IP)

IP40

HS Code

8536.50
