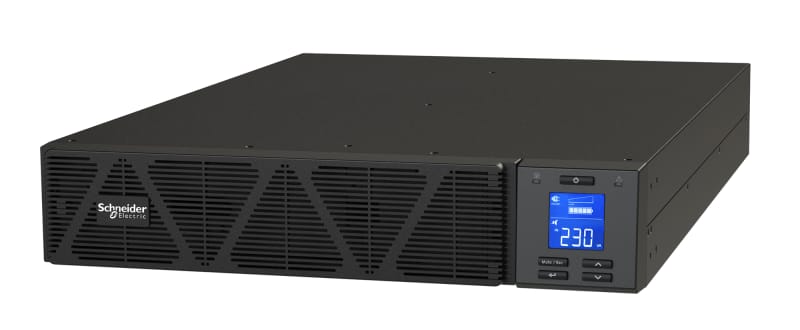

Schneider Electric Easy UPS 1 Ph On-Line, 1000VA, Rackmount 2U, 230V, 3X IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit SRVS1KRIRK
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric Easy UPS SRVS RM 1000VA 230V with RailKit.
Technical Specifications
- Manufacturer part number (MPN)
- SRVS1KRIRK
- EAN / GTIN
- 0731304346326
- Sales unit
- pcs
- Presentation
- For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 C14
- Efficiency at full load
- 110...285 V half load; 160...280 V full load
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 800 W
- Rated power in VA
- 1000 VA
- Output connection
- 3 IEC 60320 C13
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 1000 VA
- Maximum configurable power in W
- 800 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 88 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBCV200
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Number of rack unit
- 2U
- Cable length
- 1.50 m
- Number of cables
- 1
- Color
- Black (RAL 7010)
- Height
- 86 mm
- Width
- 438 mm
- Depth
- 312 mm
- Product weight
- 11 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- USB compatible
- Yes
- Mounting position
- Horizontal
- Max runtime
- 4 min
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS 1Ph On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -20…50 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 50 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 24 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 4 h
- Battery life
- 3…5 year(s)
- Battery charging power
- 30 W rated
- Battery power in VAh
- 152 VAh runtime
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 21.800 cm
- Package 1 Width
- 45.500 cm
- Package 1 Length
- 55.100 cm
- Package 1 Weight
- 13.100 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304346326
- SAP 1200446179
- Code 82517571
