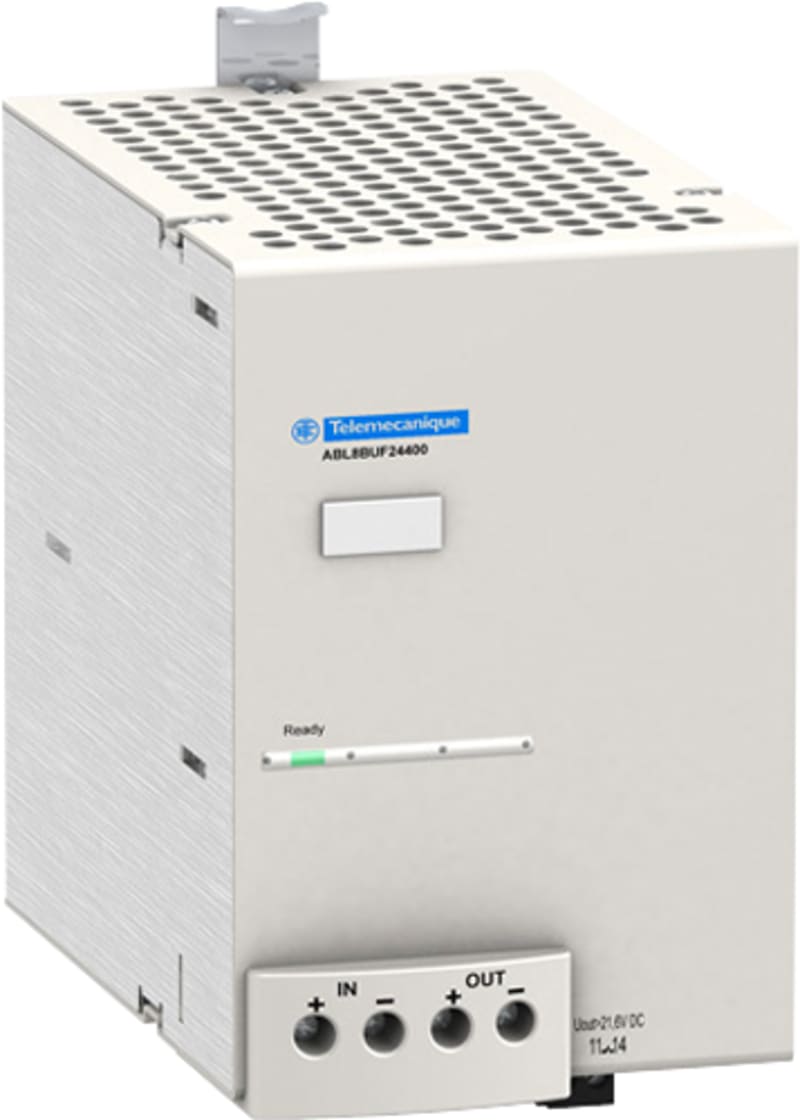

Schneider Electric ABL8BUF24400 Phaseo Buffer Module 24 V DC 40 A

Schneider Electric ABL8BUF24400 is a Phaseo DC buffer module that bridges short mains interruptions on a 24 V DC control bus. Input 24 to 28.8 V DC, maximum output 40 A with a holding time of 0.1 s at 40 A or 6 s at 0.5 A. Screw terminals accept up to 2 x 10 mm² conductors; clips onto 35 mm symmetrical DIN rail in horizontal or vertical orientation.

Manufacturer part number (MPN)

ABL8BUF24400

EAN / GTIN

3389119406819

Sales unit

pcs

Package quantity

60 pcs

Rated current

40 A

Range of product

Phaseo

Product or component type

Buffer module

Input voltage

24...28.8 V DC

Output voltage

(Uin-0.25) V in nominal mode DC; (Uin-1) V in buffer mode DC

Maximum output current

40 A

Holding time

0.1 s at 40 A; 6 s at 0.5 A

Input voltage limits

22...30 V

Maximum power dissipation in W

15 W

Activation threshold

(Uin-1) V and 22 V min

Charging time

25 s

Number of output channels

1

Current consumption

0.6 A on load; 0.1 mA no load; <= 40.6 A

Output protection type

Against overload, protection technology: > 45 A; Against short-circuits, protection technology: power-supplied mode, automatic reset; Against undervoltage, protection technology: tripping if U < 19 V

Connections - terminals

For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG; For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG; For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² 14 AWG

Fixing mode

By clips on 35 mm symmetrical DIN rail, operating position: horizontal; By clips on 35 mm symmetrical DIN rail, operating position: vertical

Output coupling

Parallel

Operating altitude

2000 m

Marking

CE

Name of test

Electrostatic discharges conforming to IEC 61000-4-2; Emission conforming to IEC 61000-6-3; Induced electromagnetic field conforming to IEC 61000-4-6 level 3; Radiated electromagnetic field conforming to IEC 61000-4-3 level 3; Rapid transient conforming to IEC 61000-4-4 level 3; Surge conforming to IEC 61000-4-5 level 2; Conducted/radiated emissions conforming to EN 55022 class B, 20 %

Local signalling

1 LED (green) for buffer ready; 1 relay for buffer ready

Product weight

1.2 kg

Product certifications

RCM; EAC

Standards

UL 508; CSA C22.2 No 60950-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Environmental characteristic

EMC conforming to IEC 61000-6-3; EMC conforming to IEC 61000-6-2; Safety conforming to IEC 60950-1; Safety conforming to EN/IEC 61204-3

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

500 V between input and ground; 500 V between output and ground

Overvoltage category

Class II conforming to VDE 0106-1

Relative humidity

0…90 % during operation; 0…95 % during storage

MTBF reliability

1119603 H at 24 V DC with UTE C80-810 calculation method

Vibration resistance

2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2; 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2

Number of Units in Package 1

1

Number of Units in Package 2

60

Country of origin

PH

Warranty (in months)

18

HS Code

8504.40
