Easy UPS 3S 20KVA 400V 3:1
Pricing
Request a quote
We reply within 24 hours
Product Description

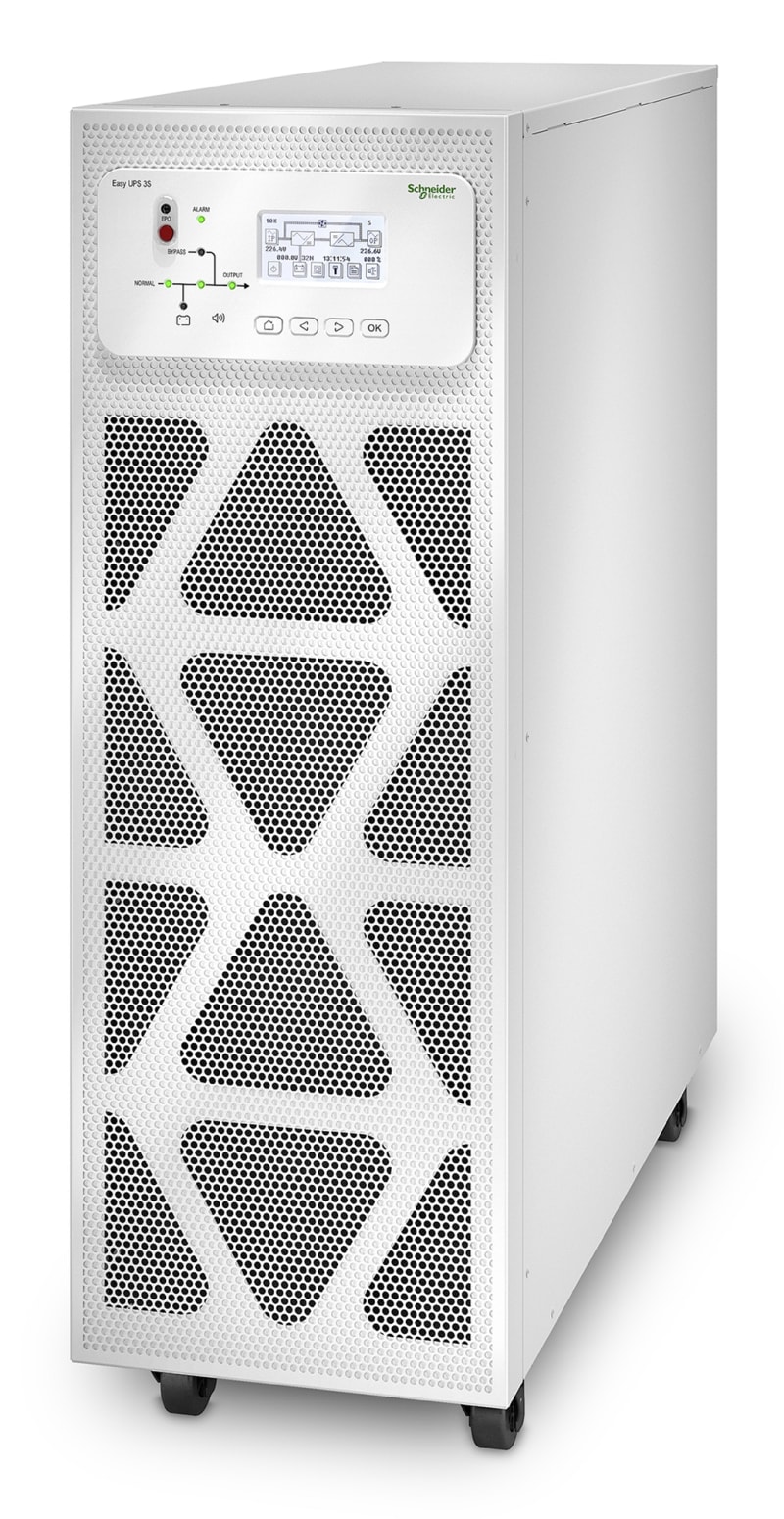

Schneider Electric E3SUPS20K3I Easy UPS 3S 20kVA 400V 3:1 UPS Low Tower.
Technical Specifications
- Manufacturer part number (MPN)
- E3SUPS20K3I
- EAN / GTIN
- 0731304340768
- Sales unit
- pcs
- Voltage
- 400 V
- Presentation
- High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
- Main input voltage
- 400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases
- Other input voltage
- 380 V; 415 V
- Maximum input current
- 37 A
- Cos phi
- 0.99
- Efficiency at full load
- 304...477 V
- Input frequency
- 45...65 Hz
- Output voltage
- 230 V AC 3 phases; 220 V AC 3 phases; 240 V AC 3 phases
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 20 kW
- Rated power in VA
- 20 kVA
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 3 %
- Maximum configurable power in VA
- 20 kVA
- Maximum configurable power in W
- 20 kW
- Output overload operation
- 10 minutes at 125% and 60 seconds at 150%
- UPS topology
- Double conversion online
- Output frequency
- 50 Hz sync to mains; 60 Hz sync to mains
- Efficiency
- View Efficiency Graph
- Maximum short-circuit current
- 10 kA
- UPS connectivity
- Optional network management card 3
- Color
- White (RAL 9003)
- Height
- 77 cm
- Width
- 25 cm
- Depth
- 80 cm
- Product weight
- 58 kg
- USB compatible
- Yes
- Provided equipment
- Dust filter; Installation guide
- Range of product
- Easy UPS 3S
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 60 dBA
- Heat dissipation
- 870 W
- Operating altitude
- 0...3281 ft
- Battery type
- External battery system
- Included battery module
- 0
- Empty battery slot
- 0
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 12
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304340768
- SAP 1200524031
- Code 82823005
Product Documentation
