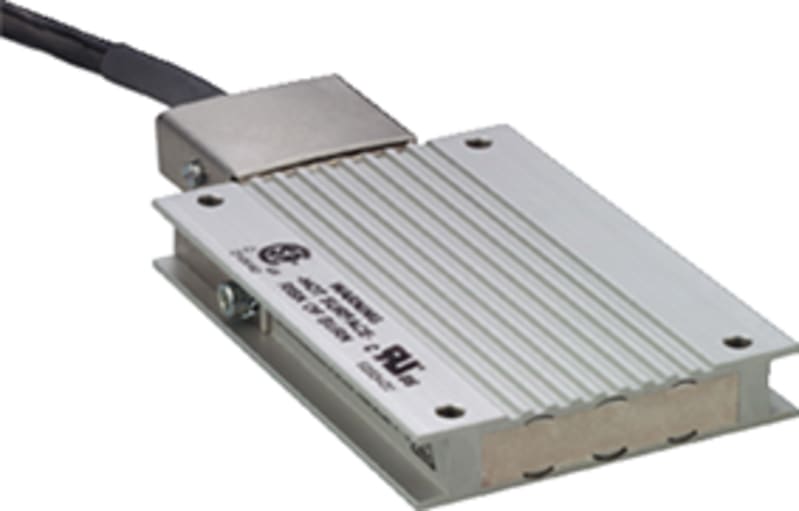

Schneider Electric braking resistor - 100 Ohm - 100 W - cable 0.75 m - IP65 VW3A7608R07
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7608R07 Braking resistor IP65 100Ohm 100W 0,75M.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7608R07
- EAN / GTIN
- 3389119210690
- Sales unit
- pcs
- Package quantity
- 18 pcs
- IP rating
- IP65
- Range of product
- Altivar; Lexium
- Range compatibility
- Altivar 32; Lexium 15; Lexium 32; Lexium 32i; Altivar Machine ATV320; Lexium 52; Easy Altivar 310L; Easy Lexium 16
- Product compatibility
- ATV32H018M2; ATV32H037M2; ATV32H037N4; ATV32H055M2; ATV32H055N4; ATV32H075M2; ATV32H075N4; ATV32HU11N4; ATV32HU15N4; ATV32HU22N4; Variable speed drive ATV320 at 0.18 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.37 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.55 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.75 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.37 kW, 380...500 V, three phase; Variable speed drive ATV320 at 0.55 kW, 380...500 V, three phase; Variable speed drive ATV320 at 0.75 kW, 380...500 V, three phase; Variable speed drive ATV320 at 1.1 kW, 380...500 V, three phase; Variable speed drive ATV320 at 1.5 kW, 380...500 V, three phase; Variable speed drive ATV320 at 2.2 kW, 380...500 V, three phase; Variable speed drive ATV320 at 0.75 kW, 525...600 V, three phase; Variable speed drive ATV320 at 1.5 kW, 525...600 V, three phase; Variable speed drive ATV320 at 2.2 kW, 525...600 V, three phase; Variable speed drive ATV310L at 0.75 kW; Variable speed drive ATV310L at 1.5 kW; Variable speed drive ATV310L at 2.2 kW; Variable speed drive ATV310L at 3.0 kW; Variable speed drive ATV310L at 4.0 kW; Variable speed drive ATV310L at 5.5 kW; Motion servo drive LXM16D at 0.1 kW, 200...230 V, single phase; Motion servo drive LXM16D at 0.2 kW, 200...230 V, single phase; Motion servo drive LXM16D at 0.4 kW, 200...230 V, single phase; Motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase; Motion servo drive LXM16D at 1 kW, 200...230 V, single phase; Motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
- Product or component type
- Braking resistor
- Ohmic value
- 100 Ohm
- Energy peak
- 2700 J at 480 V; 3000 J at 400 V; 4500 J at 230 V; 4400 J at 115 V
- Average power available
- 25 W at 50 °C
- Continuous power
- 100 W
- Protection type
- Thermal protection via the servo drive
- Product weight
- 0.41 kg
- Cable length
- 0.75 m
- IP degree of protection
- IP65
- Ambient air temperature for storage
- -25…85 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Country of origin
- CZ
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3389119210690
- SAP 1000528232
- Code 8885234
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F94263 ACTI9 IC60L Miniature Circuit Breaker 2P 63 A, Curve C
Schneider Electric
Schneider Electric Active arc fault detection with residual current protection add-on block, ACTI9 Active VigiARC IC60, 2P, 25A, 30MA, type A-SI A9TYBE225
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 4 poles, MicroLogic 4.1 trip unit 100A, lugs/busbars C11N44V100B
Schneider Electric
Step Switch 2 Steps + 0, 2-Pole
K10D012QCH
Schneider Electric
Schneider Electric LC2D40ABNE TeSys Deca Advanced Reversing Contactor, 3-Pole 40 A AC-3, EverLink, 24–60 V AC/DC Coil
Schneider Electric
Schneider Electric variable speed drive ATV630 - 37KW/50HP - 200...240V - IP21/UL type 1 ATV630D37M3
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, blue flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 120V AC XB4FW36G5
Schneider Electric
Schneider Electric SENSORPLUG-4000A-MTZ2 LV847820
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy VW3A7608R07?
- VW3A7608R07 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is VW3A7608R07.
- What is the HS code for VW3A7608R07?
- The customs tariff (HS) code for VW3A7608R07 is 8533.29.
- Who manufactures VW3A7608R07?
- VW3A7608R07 is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for VW3A7608R07?
- Yes — the VW3A7608R07 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for VW3A7608R07?
- The minimum order quantity is 1.
- Is VW3A7608R07 available?
- Yes — VW3A7608R07 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
