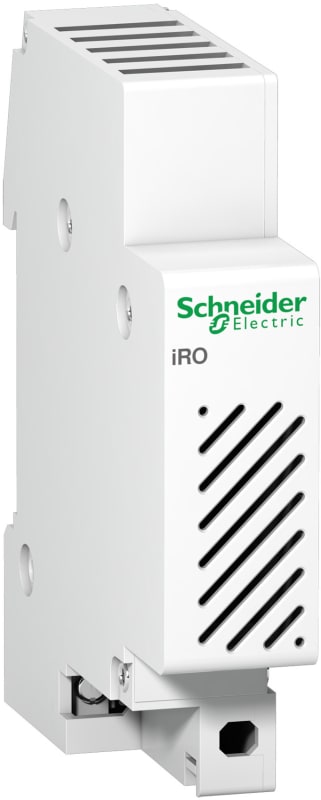

Schneider Electric Acti9 iRO Modular Buzzer 230 V 70 dB
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric Acti9 iRO is a DIN-rail modular buzzer providing acoustic indication of faults or events in electrical panels. Operates on 230 V AC at 50/60 Hz with a continuous 70 dB tone and a power draw of 5 VA. Clip-on 1-module housing with tunnel terminals accepting up to 4 mm² conductors, IP20 device or IP40 in a modular enclosure, for residential, commercial and industrial distribution boards.
Technical Specifications
- Manufacturer part number (MPN)
- A9A15322
- EAN / GTIN
- 3606480327308
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 230 V AC
- Frequency
- 50/60 Hz
- range of product
- Acti9
- Product name
- Acti9 iRO
- Product or component type
- Buzzer
- Device short name
- iRO
- [Us] rated supply voltage
- 230 V AC at 50/60 Hz
- Power consumption in VA
- 5 VA
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Height
- 81 mm
- Width
- 18 mm
- Depth
- 72 mm
- Product weight
- 64 g
- Colour
- White
- Auxiliary connection terminal
- Tunnel type terminalsrigid 4 mm²; Tunnel type terminalsflexible 4 mm²; Tunnel type terminalsflexible with ferrule 4 mm²
- Wire stripping length
- 12 mm for bottom connection
- Tightening torque
- 1.3 N.m
- Noise level
- 70 dB
- Type of sound
- Buzzer
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Ambient air temperature for operation
- -10…40 °C
- Ambient air temperature for storage
- -25…60 °C
- Warranty (in months)
- 18
- Optical notification
- No
- Acoustic notification
- Yes
- Type of tone
- Continuous tone
- Sound level
- 70 dB
- Rated voltage
- 230 V
- Voltage type
- AC
- Width in number of modular spacings
- 1
- Built-in depth
- 50 mm
- Degree of protection (IP)
- IP20
- Country of origin
- India
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480327308
- SAP 1000327034
- Code 8844909
Product Documentation
