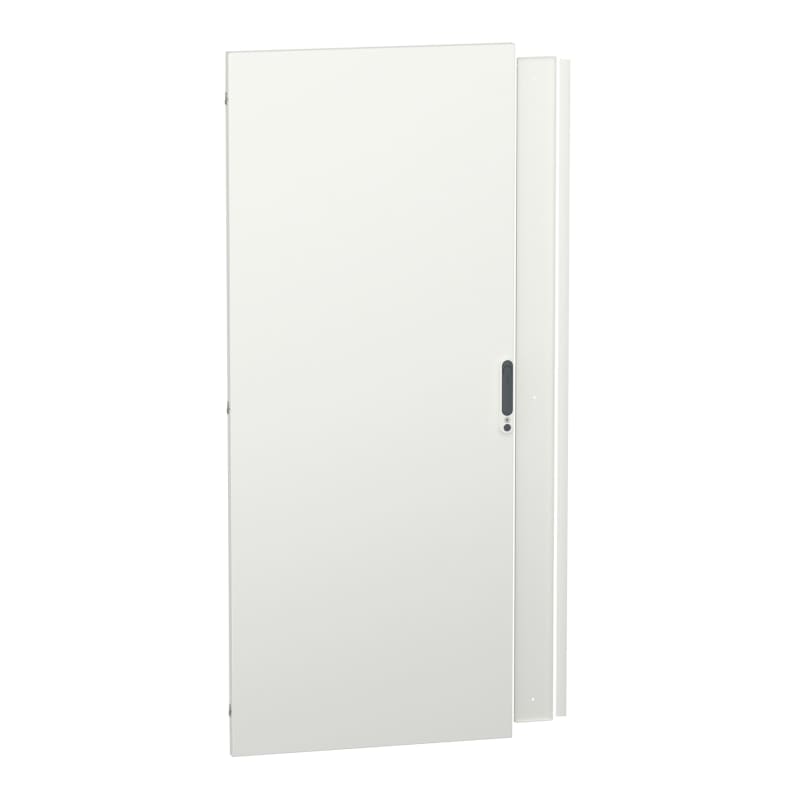

Door IP30 PrismaSeT P width 800mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08518 — IP30 PLAIN DOOR W800.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08518
- EAN / GTIN
- 3606481878694
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 2 hinge; barrier 150 mm for the side compartment; finishing accessory
- Enclosure mounting
- Floor-standing
- type of door
- Plain
- IP degree of protection
- IP30
- installation description
- Cubicle - width 800 mm; Cubicle - width 650 + 150 mm
- Door opening side
- Reversible
- Number of locks
- 2
- door opening angle
- 120 °
- Number of vertical modules [50 mm]
- 36
- Enclosure material
- Treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1925 mm
- Width
- 800 mm
- Depth
- 30 mm
- Product weight
- 24.92 kg
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.500 cm
- Package 1 Width
- 85.000 cm
- Package 1 Length
- 199.000 cm
- Package 1 Weight
- 31.478 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 10
- Package 2 Height
- 86.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 340.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP30
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878694
- SAP 1200547286
- Code 82880190
Product Documentation
More from Schneider Electric
Schneider Electric

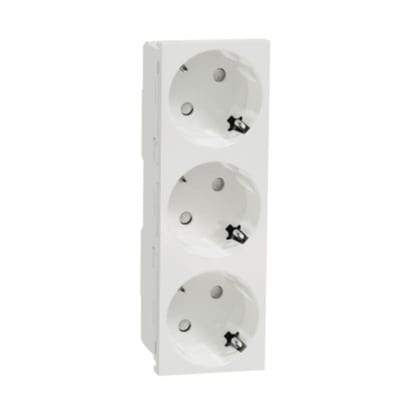

Schneider Electric 3 Socket-outlet, New Unica, mechanism, 2P, 16A, Schuko, with shutter, screwless terminals, glossy, untreated, white NU307618
