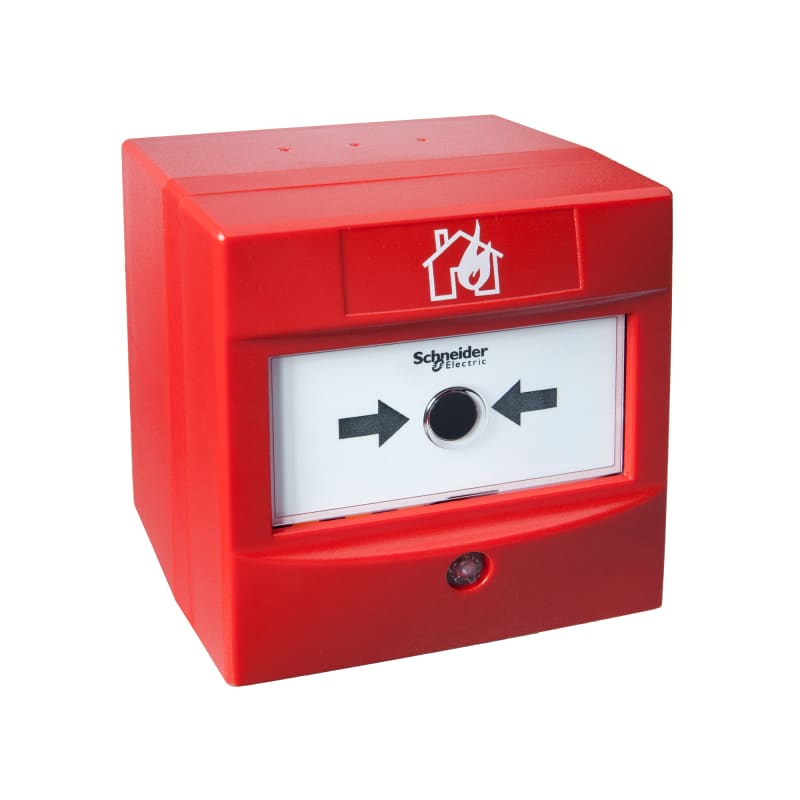

Schneider Electric Manual call point, ECF221I6, with insulator FFS06723706
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric FFS06723706 Apollo, Manual detector ECF221i6 with insulator.
Technical Specifications
- Manufacturer part number (MPN)
- FFS06723706
- EAN / GTIN
- 6430043853600
- Sales unit
- pcs
- Range of product
- Esmi addressable components for ALC range
- Product or component type
- Manual call point
- Colour tint
- Red
- Material
- PC (polycarbonate)
- Control type
- Resettable
- [Ue] rated operational voltage
- 17...35 V DC supply
- Signalling function
- Alarm status LED red; Insulator operation LED yellow; Fault flashing LED yellow; Device is polled flashing LED green
- Type of setting
- 8-segment DIL switch: address setting
- Current consumption
- 100 µA standby; 1 mA power-up surge 1s typical; 4 mA alarm LED on
- Height
- 90 mm
- Width
- 90 mm
- Depth
- 63 mm
- Product weight
- 180 g
- IP degree of protection
- IP44
- Ambient air temperature for operation
- -40…70 °C
- Standards
- EN 54-11; EN 54-17
- Product certifications
- CPR; LPCB
- Relative humidity
- 0…95 % non-condensing
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8531.10
Cross References
- EAN 6430043853600
- SAP 1200735158
- Code 83893382
Product Documentation
More from Schneider Electric
Schneider Electric
Busbar-vertical-Linergy-LGYE 630A (LVS04502)
Schneider Electric

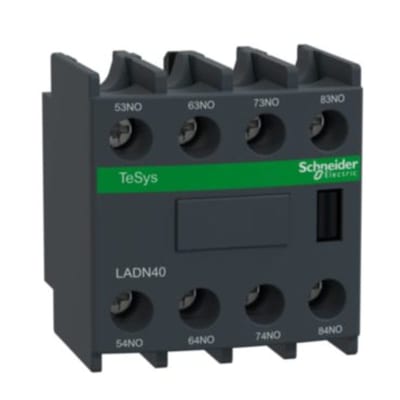

Schneider Electric Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals LADN40
Schneider Electric

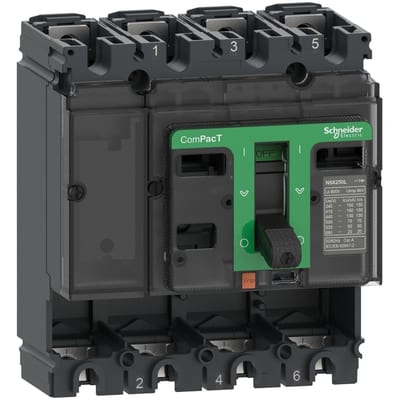

Schneider Electric Circuit breaker basic frame, ComPacT NSX160N, 50KA/415VAC, 4 poles, 160A frame rating, without trip unit C16N4
