Potentiometer complete 10KOHM
Pricing
Request a quote
We reply within 24 hours
Product Description

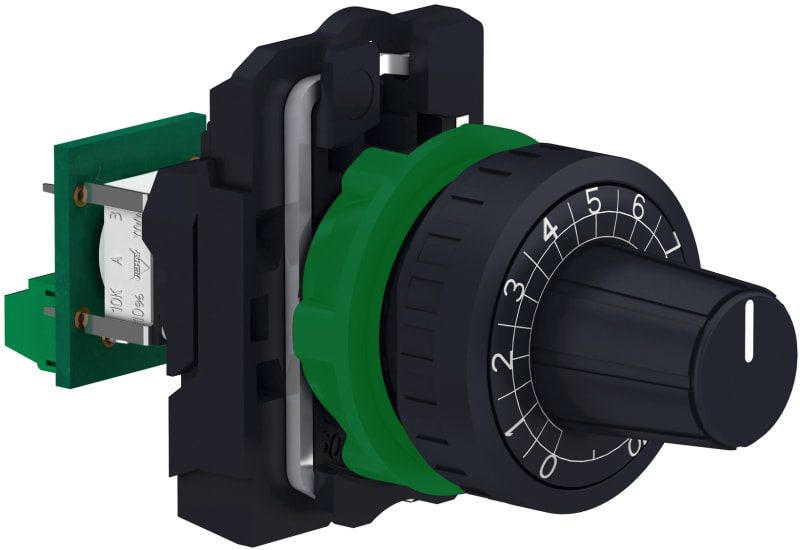

Schneider Electric XB5AD912R10K — Complete potentiometer, plastic, Ø22, 10K.
Technical Specifications
- Manufacturer part number (MPN)
- XB5AD912R10K
- EAN / GTIN
- 3606480985072
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range of product
- Harmony XB5
- Product or component type
- Potentiometer
- Device short name
- XB5
- Head type
- Standard
- Device presentation
- Complete product
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Product compatibility
- Ø 6 mm shaft
- Sale per indivisible quantity
- 1
- CAD overall width
- 30 mm
- CAD overall height
- 42 mm
- CAD overall depth
- 82 mm
- Product weight
- 0.048 kg
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Electrical shock protection class
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- CSA C22.2 No 14; UL 508; IEC 60947-1
- Product certifications
- BV; CSA; UL listed
- Shape of signaling unit head
- Round
- Operator profile
- knurled knob, with (white)
- [Us] rated supply voltage
- <= 42 V DC; <= 30 V AC
- Rated power in W
- 1 W at 70 °C
- Precision of internal conversion resistor
- +-10%
- Potentiometer characteristic
- Linear
- Mechanical durability
- 50000 cycles
- Ohmic value
- 10000 Ohm
- Material
- Cermet
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Main group
- Potentiometer
- Group of product
- Potentiometer knurled knob
- Colour of marking
- White
- Enclosure Type
- UL type 4X/13
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.200 cm
- Package 1 Width
- 5.600 cm
- Package 1 Length
- 8.400 cm
- Package 1 Weight
- 58.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 40
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 2.616 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Power consumption
- 1 W
- Resistance
- 10000 Ohm
- Degree of protection (IP)
- IP66
- Number of revolutions
- 0–10
Standards & Compliance
- HS Code
- 8533.40
Cross References
- EAN 3606480985072
- SAP 1000768305
- Code 81171651
