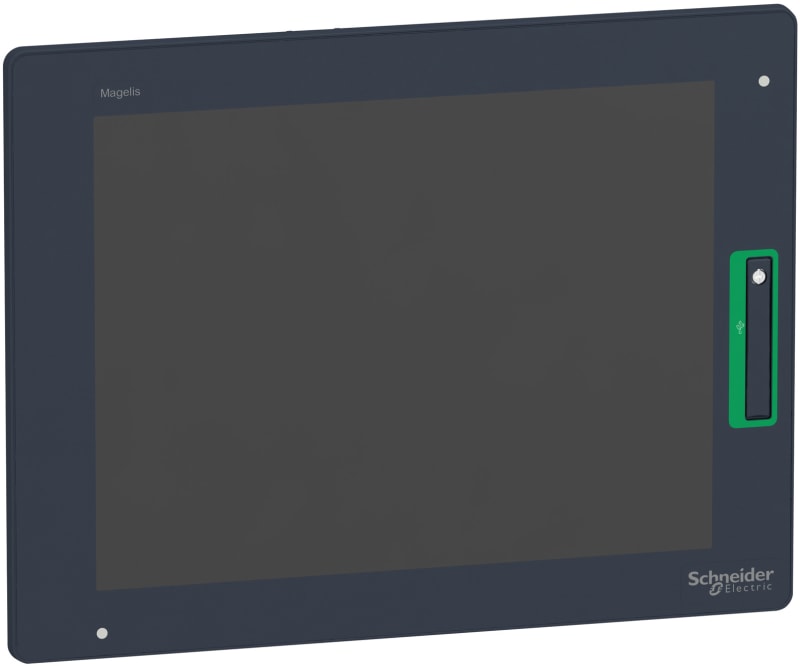

Schneider Electric 12.1 Touch Smart Display XGA HMIDT642

Schneider Electric HMIDT642 HMIGTU 12,1" display MT, 1024*768.

Manufacturer part number (MPN)

HMIDT642

EAN / GTIN

3606480687242

Sales unit

pcs

Package quantity

2 pcs

Range of product

Harmony GTU

Terminal type

Touchscreen display

Product or component type

Flat screen

[Us] rated supply voltage

12...24 V DC power supply

Supply voltage limits

10.8…28.8 V

Power consumption in W

21 W

Inrush current

30 A

Integrated connection type

USB 2.0 type A; USB 2.0 type mini B

Touchscreen resolution

1024 x 1024

Pixel resolution

1024 x 600

Display size

12.1 inch

Aspect ratio

4:3

Display type

Colour TFT LCD

Display resolution

1024 x 768 pixels XGA

Display colour

16 million colours

Backlight lifespan

50000 hours

Touch panel

Multi touch analogue resistive

Function available

Brightness sensor

Type of cooling

Natural convection

Type of installation

Indoor installation

Cut-out dimensions

301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm

Width

315 mm

Height

241 mm

Depth

67 mm

Product weight

3 kg

IP degree of protection

Front panel: IP66; Front panel: IP67

NEMA degree of protection

NEMA 4X front panel

Standards

UL 508; ANSI/ISA 12-12-01; Class I division 2 CSA C22.2 No 213; CSA C22.2 No 142; IEC 61132-2

Product certifications

CE; UKCA; UKEX

Ambient air temperature for operation

0…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % non-condensing

Operating altitude

2000 m

Vibration resistance

3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2

Shock resistance

147 m/s² conforming to IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Number of Units in Package 1

1

Number of Units in Package 2

2

Number of Units in Package 3

20

Country of origin

CN

Warranty (in months)

18

Power consumption

21 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

With SW interfaces

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

16000000

Number of grey-scales/blue-scales of display

16000000

Screen diagonal

12 inch

Number of pixels, horizontal

1024

Number of pixels, vertical

600

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

Yes

With message indication

No

With message system (incl. buffer and confirmation)

No

Process value representation (output) possible

No

Process default value (input) possible

No

With recipes

No

With printer output

No

Additional software components, loadable

No

Degree of protection (IP), front side

IP67

Operating temperature

0–50 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

315 mm

Height of the front

241 mm

Built-in depth

67 mm

HS Code

8528.59
