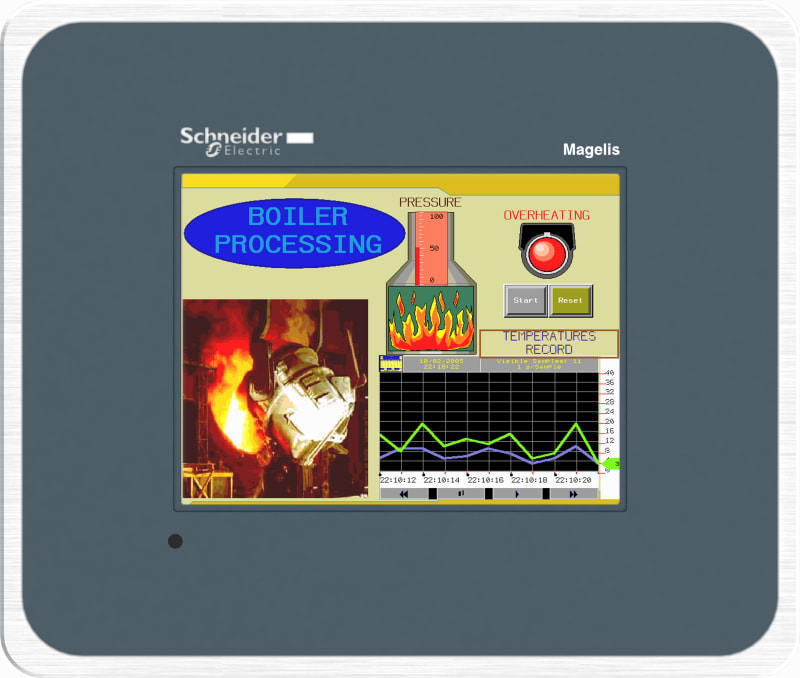

Schneider Electric advanced touchscreen panel stainless 320 x 240 pixels QVGA- 5.7" TFT - 96 MB HMIGTO2315

Schneider Electric HMIGTO2315 5,7 TFT colour 240*320 IP66K,E.

Manufacturer part number (MPN)

HMIGTO2315

EAN / GTIN

3595864150253

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony GTO

Product or component type

Advanced touchscreen panel

Display colour

65536 colours

Display size

5.7 inch

Supply

External source

Battery type

Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)

Provided equipment

1 protective cover

Processor name

ARM926EJ-S

Software package

Vijeo Designer

Terminal type

Touchscreen display

Display type

Backlit colour TFT LCD

Display resolution

320 x 240 pixels QVGA

Touch sensitive zone

1024 x 1024

Touch panel

Resistive film, 1000000 cycles

Backlight lifespan

50000 hours white at 25 °C

Brightness

16 levels - control by touch panel; 16 levels - control by software

Character font

Taiwanese (traditional Chinese); Japanese (ANK, Kanji); Chinese (simplified Chinese); ASCII; Korean

[Us] rated supply voltage

24 V DC

Supply voltage limits

19.2…28.8 V

Inrush current

30 A

Maximum power consumption in W

6.5 W when power is not supplied to external devices; 4.5 W when backlight is OFF; 5 W when backlight is dimmed; 10.5 W

Local signalling

Status LED green, steady for offline; Status LED green, steady for operating; Status LED orange, flashing for software starting up; Status LED red, steady for power supply (ON); Status LED clear, faded for power supply (OFF); COM2 LED yellow, steady for data is being transmitted; COM2 LED yellow, faded for no data transmission; SD card LED green, steady for card is inserted; SD card LED green, faded for card is not inserted or is not being accessed

Memory description

Flash EPROM, 96 MB

Data backed up

512 KB internal RAM (SRAM)

Data storage equipment

SD card, <= 32 GB; SDHC card, <= 32 GB

Downloadable protocols

Schneider Electric Modicon Modbus; Schneider Electric Modicon Uni-TE; Schneider Electric Modicon Modbus Plus; Schneider Electric Modicon FIPWAY; Mitsubishi Melsec third party protocols; Omron Sysmac third party protocols; Rockwell Automation Allen-Bradley third party protocols; Siemens Simatic third party protocols; Schneider Electric Modicon Modbus TCP

Integrated connection type

COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps; COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps; COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI; Ethernet RJ45, interface: 10BASE-T/100BASE-TX; Ethernet RJ45, interface: IEEE 802.3; USB 2.0 type A; USB 2.0 type mini B

Product mounting

Flush mounting

Fixing mode

By 8 nuts; By 4 L brackets

Front material

Stainless steel 304

Enclosure material

PPT

Type of cooling

Natural convection

Width

213.5 mm

Height

181 mm

Depth

59.5 mm

Product weight

1.2 kg

Standards

IEC 61000-6-2; UL 508; IEC 61131-2

Product certifications

KCC; CE; cULus; C-Tick; UKCA; UKEX

Ambient air temperature for operation

0…55 °C

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % without condensation

Operating altitude

< 2000 m

IP degree of protection

IP20 (rear panel) conforming to IEC 60529; IP66K (front panel) conforming to IEC 60529; IP66K (front panel) conforming to DIN 40050-9

NEMA degree of protection

NEMA 4X front panel (indoor use)

Shock resistance

147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2

Vibration resistance

3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2; 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2

Resistance to electrostatic discharge

6 kV contact discharge conforming to IEC 61000-4-2 level 3

Number of Units in Package 1

1

Number of Units in Package 2

8

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

AC/DC

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

Number of HW-interfaces other

1

With SW interfaces

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

Yes

Type of display

TFT

Colour display

Yes

Number of colours of the display

65536

Number of grey-scales/blue-scales of display

16

Screen diagonal

5.7 inch

Number of pixels, horizontal

320

Number of pixels, vertical

240

Usable project memory/user memory

96000 kByte

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

Yes

With message indication

Yes

With message system (incl. buffer and confirmation)

Yes

Process value representation (output) possible

Yes

Process default value (input) possible

Yes

With recipes

Yes

With printer output

Yes

Additional software components, loadable

Yes

HS Code

8537.10

• EAN 3595864150253
• SAP 1000347637
• Code 8387488
