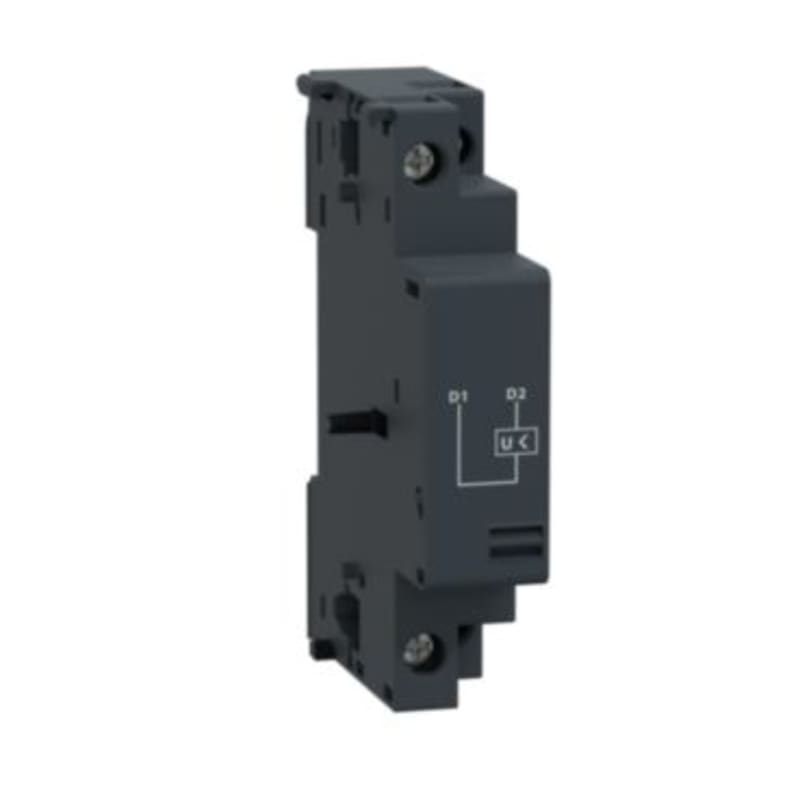

Schneider Electric TeSys GV2 & GV3 - undervoltage trip - 24 V AC 50Hz GVAU025
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAU025 Undervoltage release 24V 50HZ GV2.
Technical Specifications
- Manufacturer part number (MPN)
- GVAU025
- EAN / GTIN
- 3389110344158
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Voltage
- 24 V
- Frequency
- 50 Hz
- Range
- TeSys; TeSys Deca
- Product or component type
- Undervoltage release
- Device short name
- GVAU
- [Uc] control circuit voltage
- 24 V AC 50 Hz
- Range compatibility
- TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca
- Control circuit voltage limits
- 0.85...1.1 Un
- [Ui] rated insulation voltage
- 690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1
- Threshold tripping voltage
- 0.7...0.35 Un
- Inrush power in VA
- 12 VA AC
- Inrush power in W
- 8 W
- Hold-in power consumption in VA
- 3.5 VA AC
- Hold-in power consumption in W
- 1.1 W
- Operating time
- 10...15 ms conforming to IEC 60947-1
- On-load factor
- 100 %
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
- Tightening torque
- < 1.4 N.m on screw clamp terminals
- Mechanical durability
- 10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P
- Quantity per set
- Set of 10
- Height
- 89 mm
- Width
- 18 mm
- Depth
- 66 mm
- Product weight
- 0.105 kg
- Colour
- Dark grey
- Country of origin
- CZ
- Warranty (in months)
- 18
- Delayed
- No
- Suitable for off-load switch
- No
- Suitable for overload relay
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3389110344158
- SAP 1000054373
- Code 8879974
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800LB, 200KA at 415VAC, 800A, 3P, withdrawable, manually operated, without control unit C080B3WM
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 160A, EverLink lugs C12N4TM160L
Schneider Electric
Schneider Electric LV848724SP Masterpact MTZ3 4P Shutters and Lock Block
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.3EM, ComPacT NSX400/630, 3 poles, basic and ground fault protections, motor, energy meter, 320A C4036M320
Schneider Electric
Sign Frame flush grey with sign (ZBYF2104C0)
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1000X500X320 IP54 NSYPLAZ1053G
Schneider Electric
Tvers Kob,forleng, 4P G630-800
LA9G4633
Schneider Electric

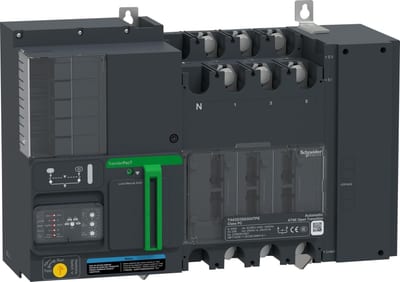

Schneider Electric TransferPacT Automatic, 320A, 400V, 3P, Rotary, frame 630A TA63D3S3204TPE
