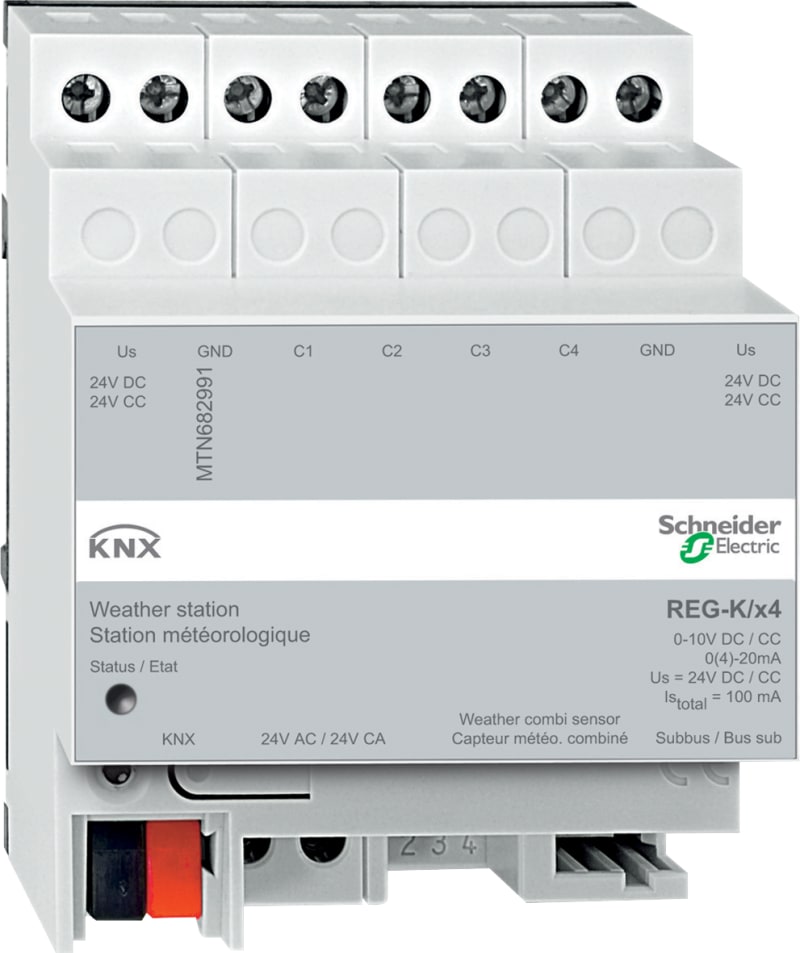

Schneider Electric KNX Weather Station REG-K/4-Gang Light Grey

Schneider Electric MTN682991 is a KNX weather station in DIN-rail (REG) format that consolidates four analogue weather inputs and integrated DCF77 time reception. The unit connects through a KNX bus interface, draws 5 mA supply current and is finished in light grey (RAL 7035) at IP20. Deployed in building-automation systems to drive facade shading, ventilation and heating scenes from wind, temperature, brightness and rain measurements.

Manufacturer part number (MPN)

MTN682991

EAN / GTIN

3606485012346

Sales unit

pcs

Package quantity

10 pcs

Range of product

KNX

Product or component type

Weather station

Bus type

KNX

Function available

Weather station integrated in sensor; With DCF77

Colour tint

Light grey

Colour code

RAL 7035

Power supply input current

5 mA

Mounting support

DIN rail

Input type

With analogue input

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.200 cm

Package 1 Width

12.600 cm

Package 1 Length

15.900 cm

Package 1 Weight

224.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Height

19.800 cm

Package 2 Width

30.500 cm

Package 2 Length

40.300 cm

Package 2 Weight

2.624 kg

Warranty (in months)

18

Bus system KNX

Yes

Bus system KNX-RF (Radio Frequency)

No

Bus system radio frequency

No

Bus system LON

No

Bus system Powernet

No

Other bus systems

None

Radio frequency bidirectional

No

Mounting method

DRA (DIN-rail adaptor)

With bus connection

Yes

With DCF77

Yes

Acoustic signal

No

With heating

No

Colour

Grey

RAL-number (similar)

7035

Analogue input

Yes

Weather station

Yes

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

8536.49

• EAN 3606485012346
• SAP 1000325220
• Code 8872146
