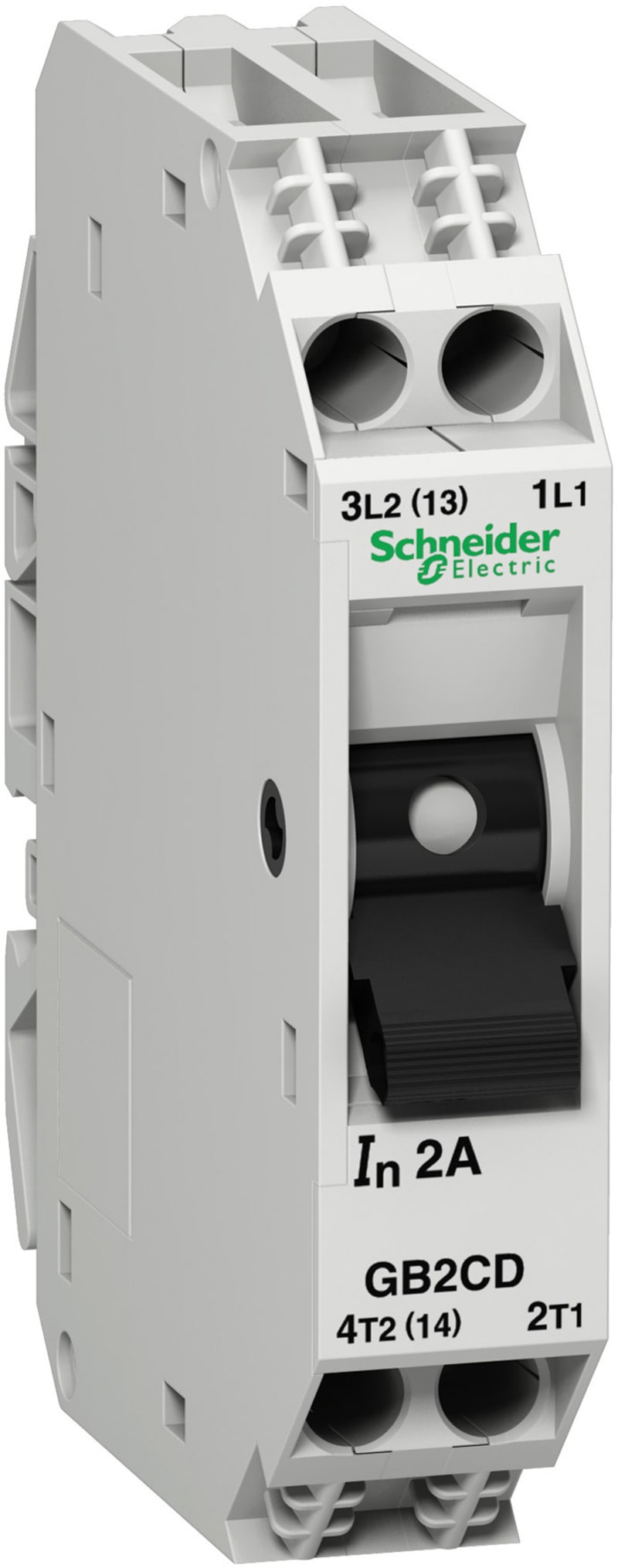

Schneider Electric Thermal magnetic circuit breaker, TeSys GB2, 1P+N, 2 A, Icu 15 kA@240 V GB2CD07

Schneider Electric GB2CD07 Fuse Aut Control current 2P 2A.

Manufacturer part number (MPN)

GB2CD07

EAN / GTIN

3389110214734

HS code

8536.90

Sales unit

pcs

Package quantity

72 pcs

Range

TeSys

Product name

TeSys GB2

Device short name

GB2

Product or component type

Circuit breaker

Device application

Control

Poles description

1P + N

Network type

AC/DC

Utilisation category

Category A conforming to IEC 60947-2; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Breaking capacity

10 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

25 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

Trip unit technology

Thermal-magnetic

Magnetic tripping current

26 A

mounting mode

By clips

Mounting support

Plate; Rail

Mounting position

Vertical; Horizontal

Control type

Toggle

[In] rated current

2 A

[Ue] rated operational voltage

250 V AC 50/60 Hz conforming to IEC 60947-2; 277 V AC 60 Hz conforming to CSA C22.2 No 235; 277 V AC 60 Hz conforming to UL 1077; 48 V DC

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-2

Power dissipation per pole

2 W

Mechanical durability

8000 cycles

Electrical durability

8000 cycles

Connections - terminals

Connector 1 cable(s) 0.75…6 mm²solid without cable end; Connector 2 cable(s) 0.75…4 mm²solid without cable end; Connector 1 cable(s) 0.75…4 mm²flexible with cable end; Connector 2 cable(s) 0.75…2.5 mm²flexible with cable end

Tightening torque

1.2 N.m on connector

Mechanical robustness

Shocks: 22 Gn for 20 ms conforming to IEC 60068-2-27; Vibrations: 5 Gn, 5...110 Hz conforming to IEC 60068-2-6

Quantity per set

Set of 6

9 mm pitches

2

Height

74 mm

Width

15 mm

Depth

67 mm

Product weight

0.07 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-2; CSA C22.2 No 235; UL 1077

Product certifications

UL; CSA

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Operating altitude

3000 m

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

72

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110214734
• SAP 1000048203
• Code 8843835
